Vector R Series Cascade Applicators - Parts Identification
Ransburg
66
79547-10
Air Hose Assembly, 10m (33')
79547-15
Air Hose Assembly, 15m (49')
79547-20
Air Hose Assembly, 20m (66')
79547-31
Air Hose Assembly, 30m (99')
1
LSFI0027
Reusable Hose Fitting
1
2
6919-XX
Bulk Hose, Air
XX
Item #

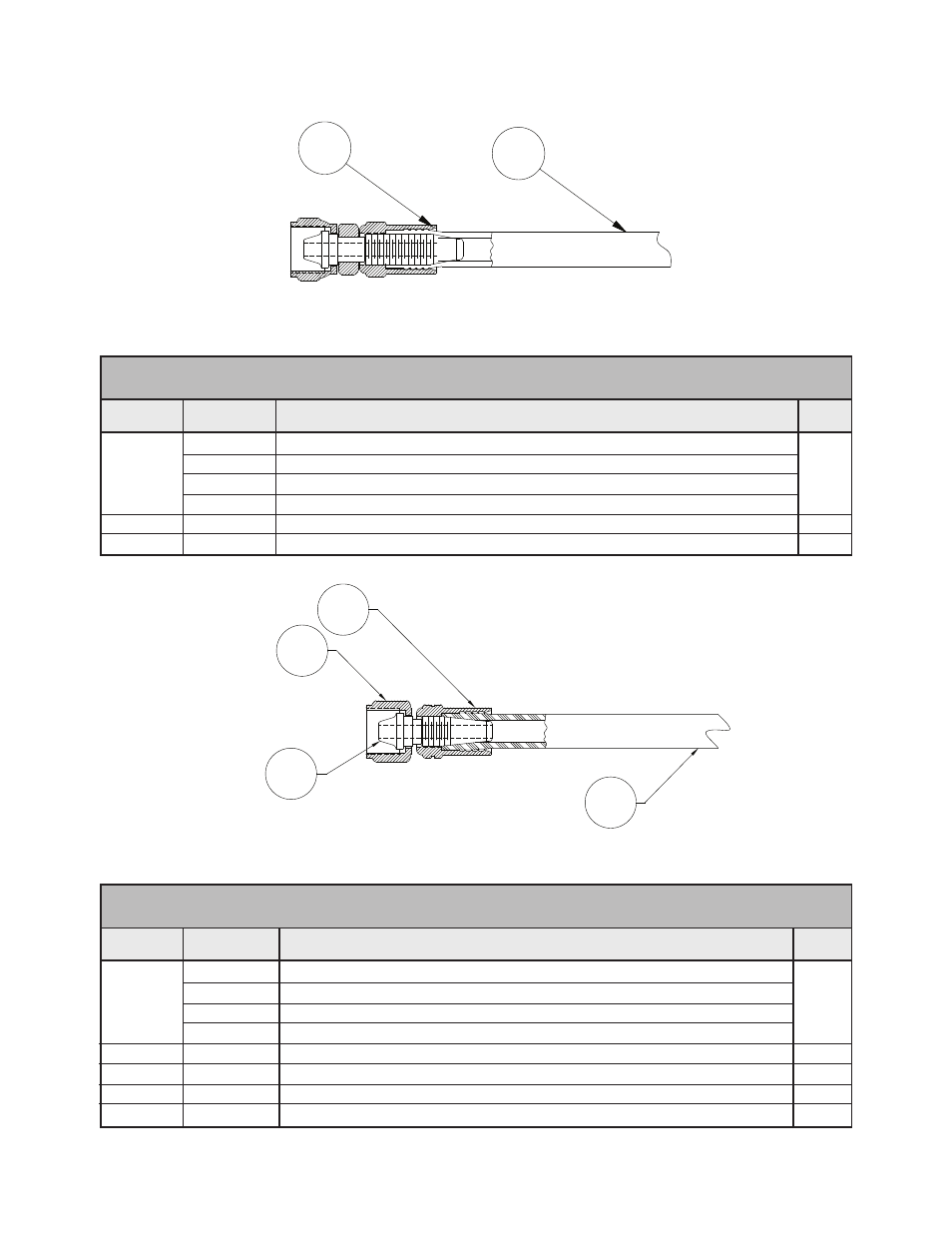

VECTOR AIR HOSE OPTIONS - PARTS LIST
(Figure 46)
Part #
Description
Qty
Figure 46: Optional Air Hose
Figure 47: Optional Fluid Hose
79548-10
Fluid Hose Assembly, 10m (33')
79548-15
Fluid Hose Assembly, 15m (49')
79548-20
Fluid Hose Assembly, 20m (66')
79548-31
Fluid Hose Assembly, 30m (99')
1
14599-00 Nut
1
2
7623-00
Union Stem
1
3 7617-00 Ferrule
1
4
77031-XX
Bulk Hose, Fluid
XX
Item #
VECTOR FLUID HOSE OPTIONS - PARTS LIST
(Figure 47)
Part #
Description
Qty
2
1
1
2
3
4
