Vector R Series Cascade Applicators - Maintenance
Ransburg
47

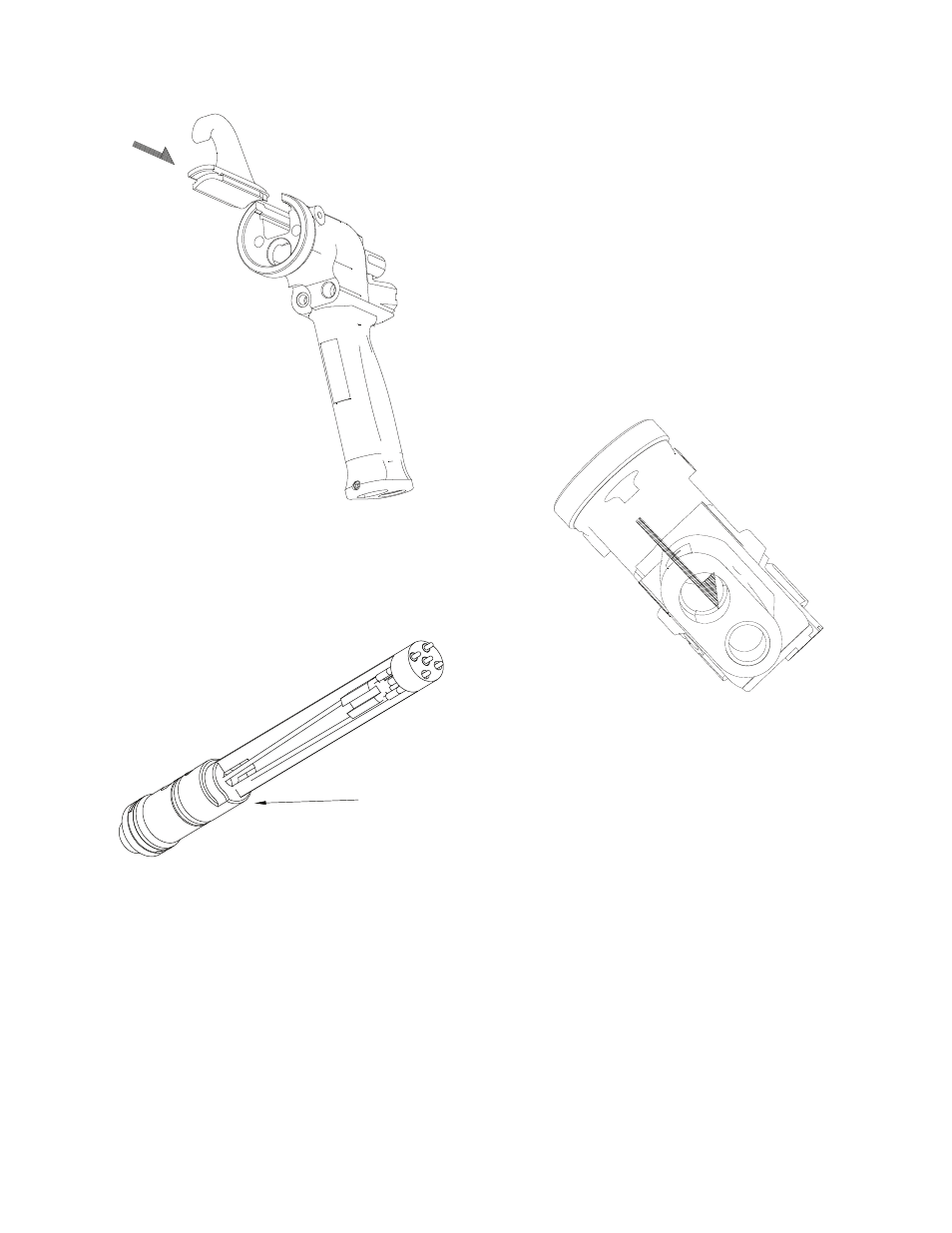

Figure 37: Hook Insertion Into Handle
4. Push the hook gasket into the groove of the
hook. Apply a light coat of dielectric grease
(LSCH0009) to the hook gasket exterior and slide
the hook into position.
Figure 38: Low Voltage Plug Locating Tab
5. Reinstall the air valve components in the reverse
order of disassembly.
6. Push the rear cover onto the back of the
handle. Secure the cover by inserting the fan air
adjustment valve into the handle and tighten in
the clockwise direction.
7. Insert the barrel gasket back into the handle.
8. Insert the plug assembly into the base of the
handle. Align the raised portion into the mating
handle recess.
Figure 39: Location of Handle Low Voltage
Plug Recess
