Vector R Series Cascade Applicators - Installation
Ransburg
19

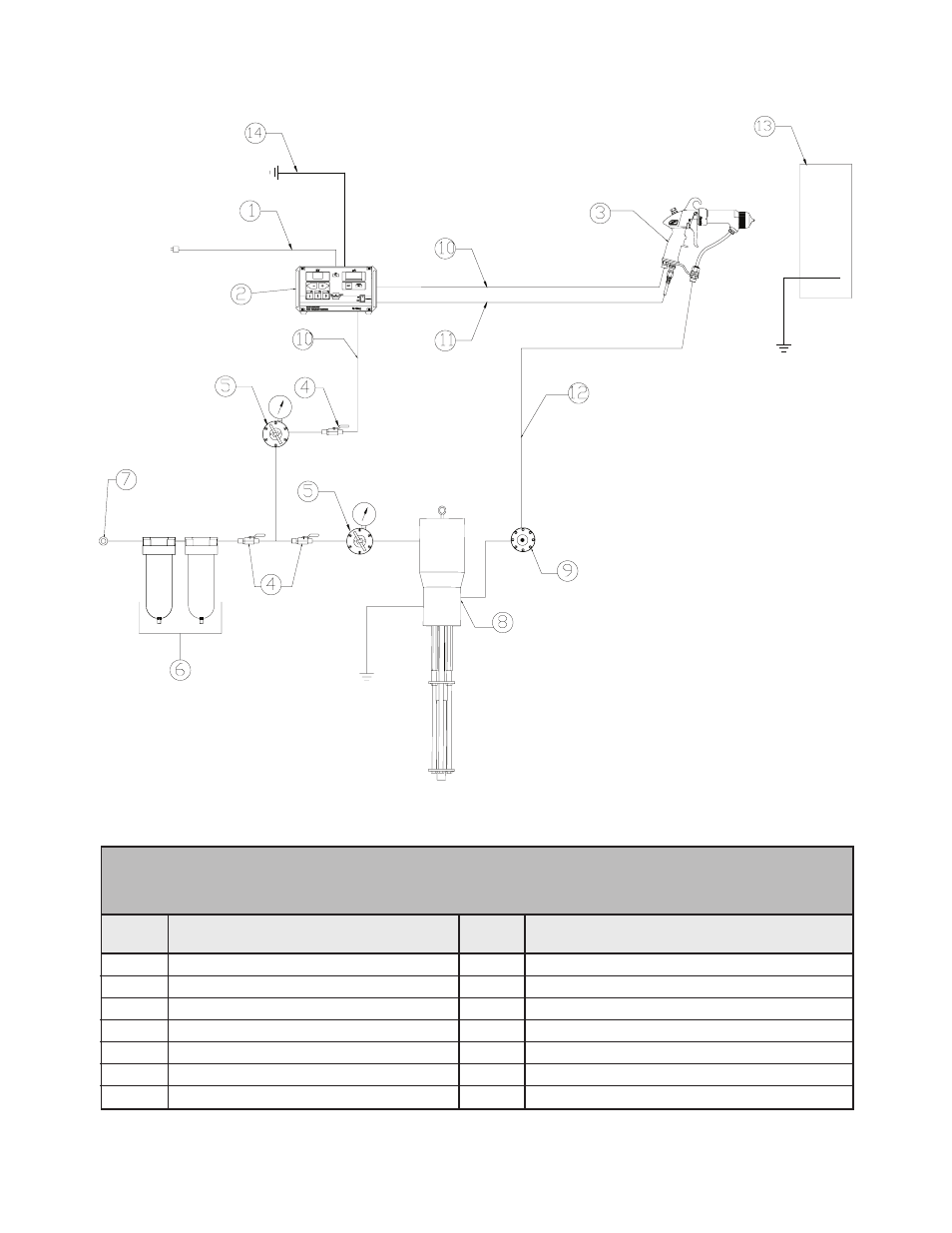

Figure 3: Typical Solventborne Installation Features
1
2
3
4
5
6
7
No.
Description
AC Line Cord (110/220)
9060 Control Unit
Vector Applicator
Ball Valve
Air Regulator W/Pressure Gauge
Air/Water Separator
Main Air Supply Line
TYPICAL SOLVENTBORNE INSTALLATION FEATURES
8
9
10
11
12
13
14
No.
Description
Fluid Supply (Grounded)
Fluid Regulator
Air Line
Low Voltage Cable
Fluid Line
Target (Earth or Building Ground)
9060 Ground
(Separate Earth or Building Ground)
R <1 M E G O H M
AH-06-01.13
