SETPOINT VOLTAGE
The Vector spray applicator system has three volt-
age setpoints 1, 2, and 3. Each of these voltages
can be individually adjusted between 20 and full
kV using the + and - buttons on the front of the
control unit. When the applicator trigger is off,
the present setpoint can be changed either from
the control unit or from the switch on the back of
the applicator.
Setpoints cannot be adjusted
below 20 kV.
NOTE

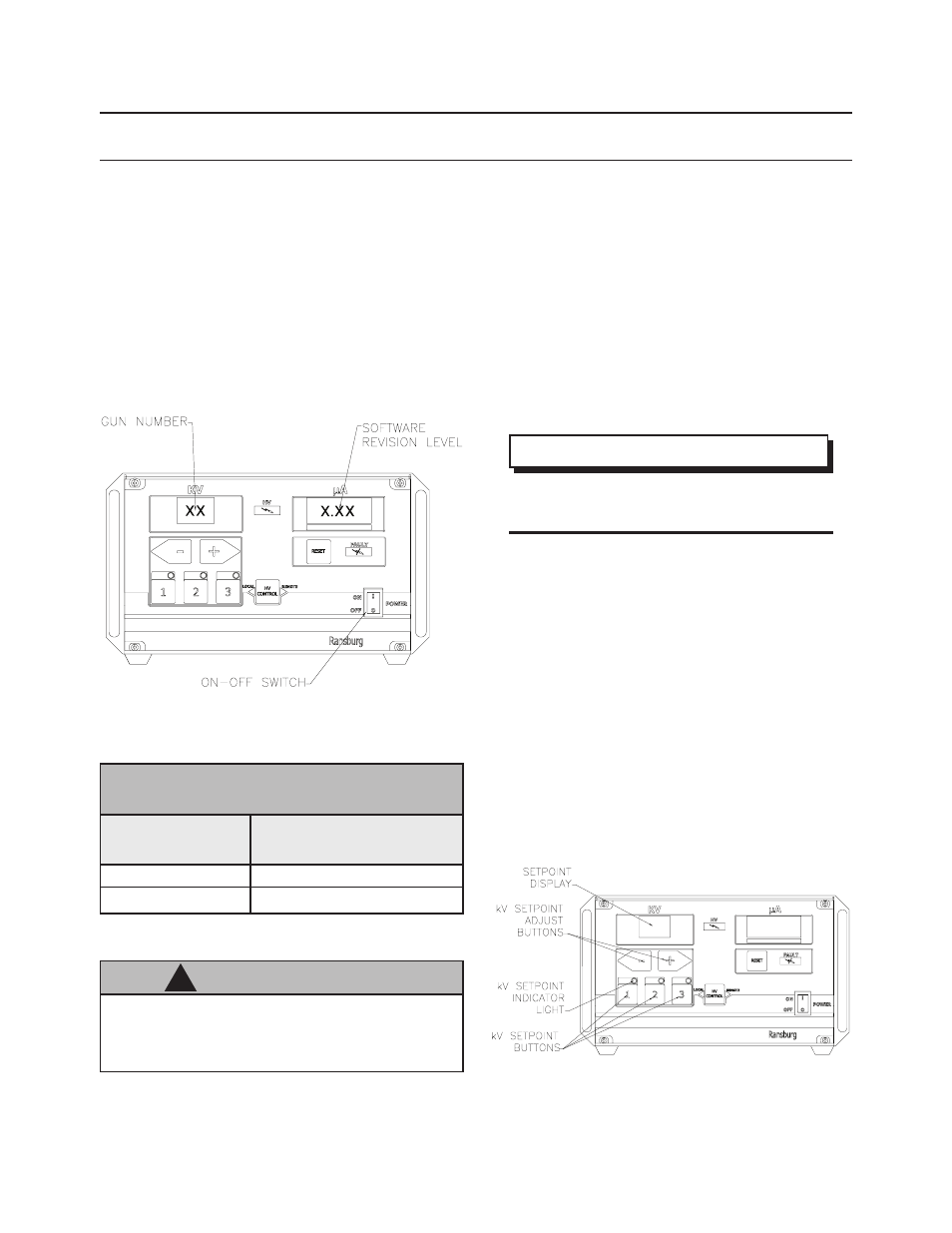

Figure 5: Front View of Control Unit
POWERING UP
CONTROL UNIT
When the AC power is turned on, the unit will
display the PC board applicator type number on
the kV setpoint display and the software revision
level in the µA display for 2-3 seconds.
Figure 4: Control Unit Start-Up Display
Description
Applicator Type
1
5
START-UP DISPLAY
85 kV Cascade
65 kV Cascade
DO NOT connect a 65 kV applicator to
a unit setup for 85 kV. Damage to 65 kV
barrel assembly may occur.
C A U T I O N
!
Setting and Changing the Setpoint
at the Control Unit
From the factory, Preset 1 is full minus 20 kV,
Preset 2 is full kV minus 10, and Preset 3 is full
kV. For 79500/79523 full kV is 85 kV. For 79501
full kV is 65 kV.
At the control unit with the applicator not triggered,
press the 1, 2, or 3 button on the front panel of
the control unit. (See Figure 5 for positions of the
kV setpoint and adjust buttons.) The only place to
adjust the kV of each setpoint is at the control unit.
OPERATION
