Page 8
Version 5.0
Ultra Series UP Instruction Manual
Gentec Electro-Optics Inc. All rights reserved
4
1.2.5 Molex connector (MT version)
The Molex male connector, available in the UP with amplification, allows you to power the internal
circuit board (PCB) and to read the signal with your own electronics.
The PCB needs +12 to +16V from a regulated power supply but does not need negative voltage.

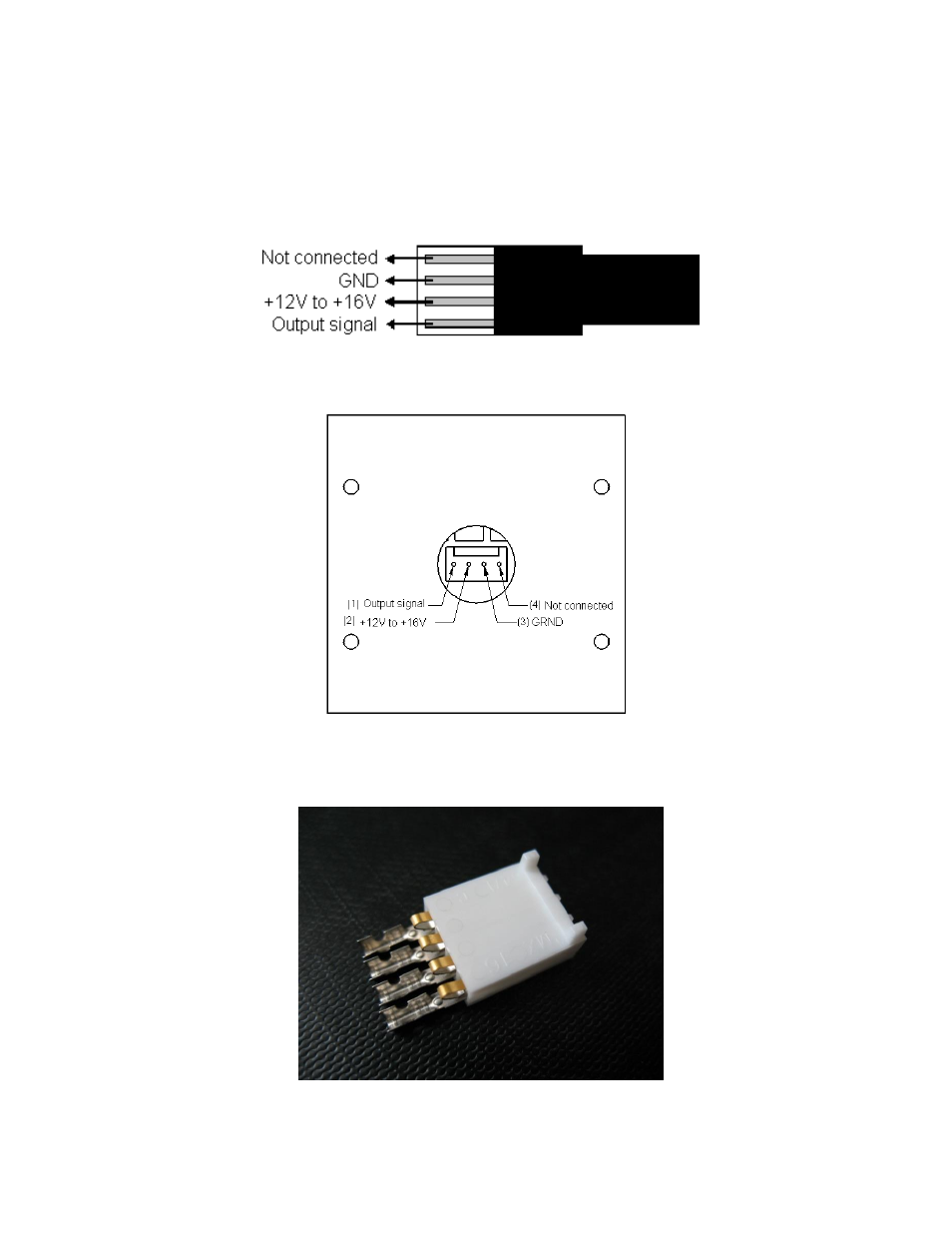

FIG. 1-4 MOLEX CONNECTOR PIN-OUT IN MT VERSION
FIG. 1-5 MOLEX CONNECTOR PIN-OUT IN MT-B VERSION
Make your own molex cable for use with OEM heads. Product number : 202170
FIG. 1-6 FEMALE MOLEX CONNECTOR KIT FOR MT AND MO VERSIONS
