Gentec-EO UP and XLP12 - Manual (Page 26)

Version 5.0
Ultra Series UP Instruction Manual Gentec Electro-Optics Inc. All rights reserved
22
UP55G-
…-HX-…
UP60G-
…-HX-…
UP55G-500F-H12
UP55G-600F-HD
Without PCB
UP60G-400F-H12
UP60G-500F-H12
Without PCB
Aperture Diameter 55 mm 60 mm
Spectral Range 190 nm - 20 µm
Calibrated spectral range a 0.248 – 2.5 µm and 10.6 µm
Power Noise Level
H12: 15 mW
HD: 45 mW
Typical Rise Time (0 – 95 %)
H12: 16.6 s (2.8 s with anticipation)
HD: 14 s (2.8 s with anticipation)
Typical sensitivity
H12: 0.06 mV/W
HD: 0.03 mV/W
Calibration Uncertainty ± 2.5%
Linearity with Power ± 2%
Repeatability (Precision) ± 0.5%
Power Resolution ± 0.5%
Max. Average Power
H12: 500 W
HD: 600 W
H12: 400 W
HD: 500 W
Max. Average Power (1 min.)
H12: 500 W
HD: 600 W
H12: 400 W
HD: 500 W
Max. Average Power Density b
1.064 µm, 10 W, CW
1.064 µm, 500 W, CW
45 kW/cm 2
8 kW/cm 2
Pulsed Laser Damage Thresholds
1.064 µm, 360 µs, 5 Hz
1.064 µm, 7 ns, 10 Hz
532 nm, 7 ns, 10 Hz
266 nm, 7 ns, 10 Hz
Max. Energy Density
9 J/cm 2
1.0 J/cm 2
0.6 J/cm 2
0.3 J/cm 2
Peak Power Density
25 kW/cm 2
143 MW/cm 2
86 MW/cm 2
43 MW/cm 2
Dimensions (mm) 120(H) x 120(W) x 135(D)
Weight (head only) 2.75 kg
Cooling Fan
Recommended load Impedance > 100 kΩ
Output Impedance N. A.
Linearity vs beam dimension ± 0.5 %
PCB electrical supply N. A.
Max outpul signal N. A.
a The calibrations at 2.1 to 2.5 µm and 10.6 µm are on special request only.
b See graph at the end of this section.
Specifications subject to change without notice.

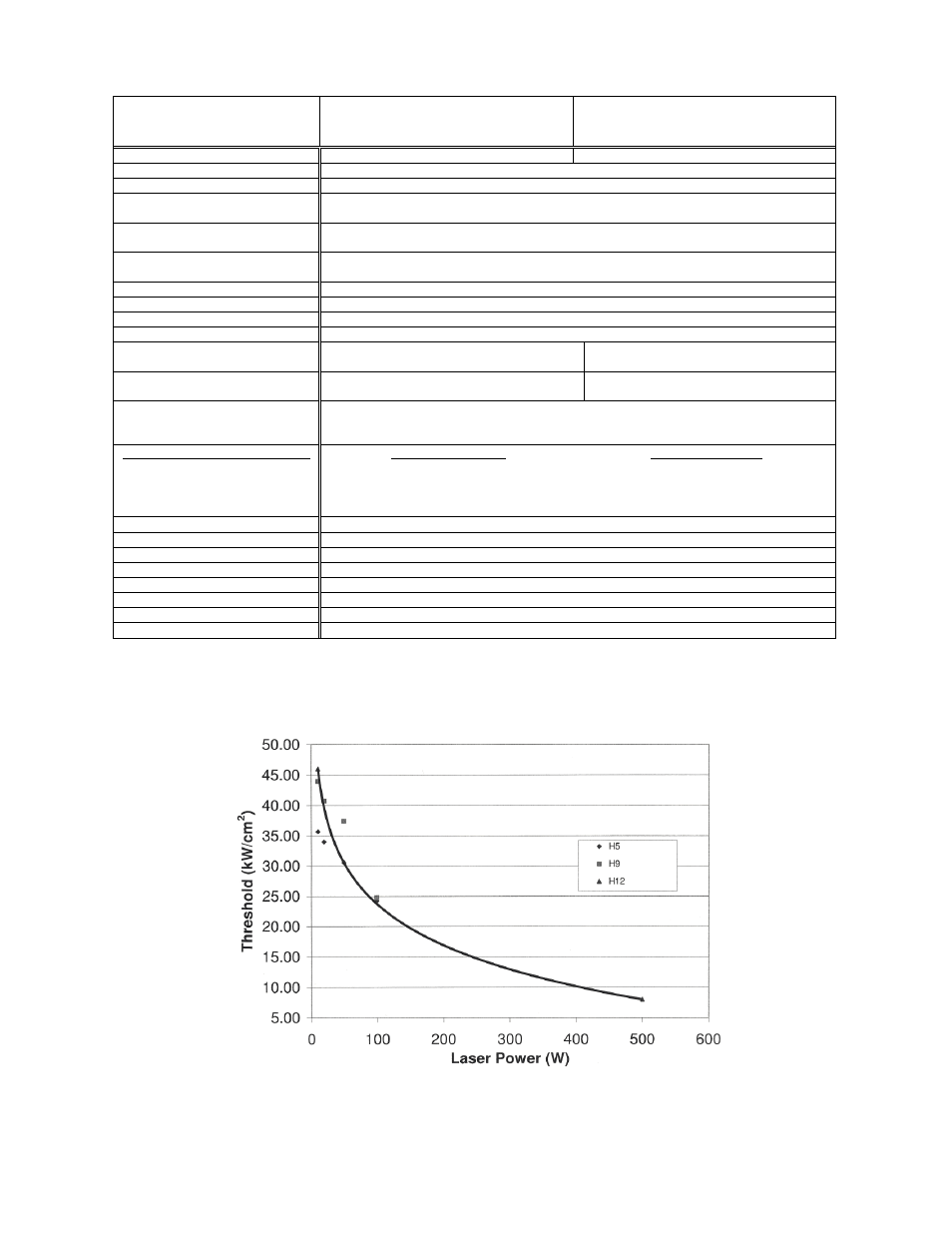

FIG. 1-9 MAX AVERAGE POWER DENSITY FOR UP WITH H-TYPE ABSORBER AT 1.064 µM.
