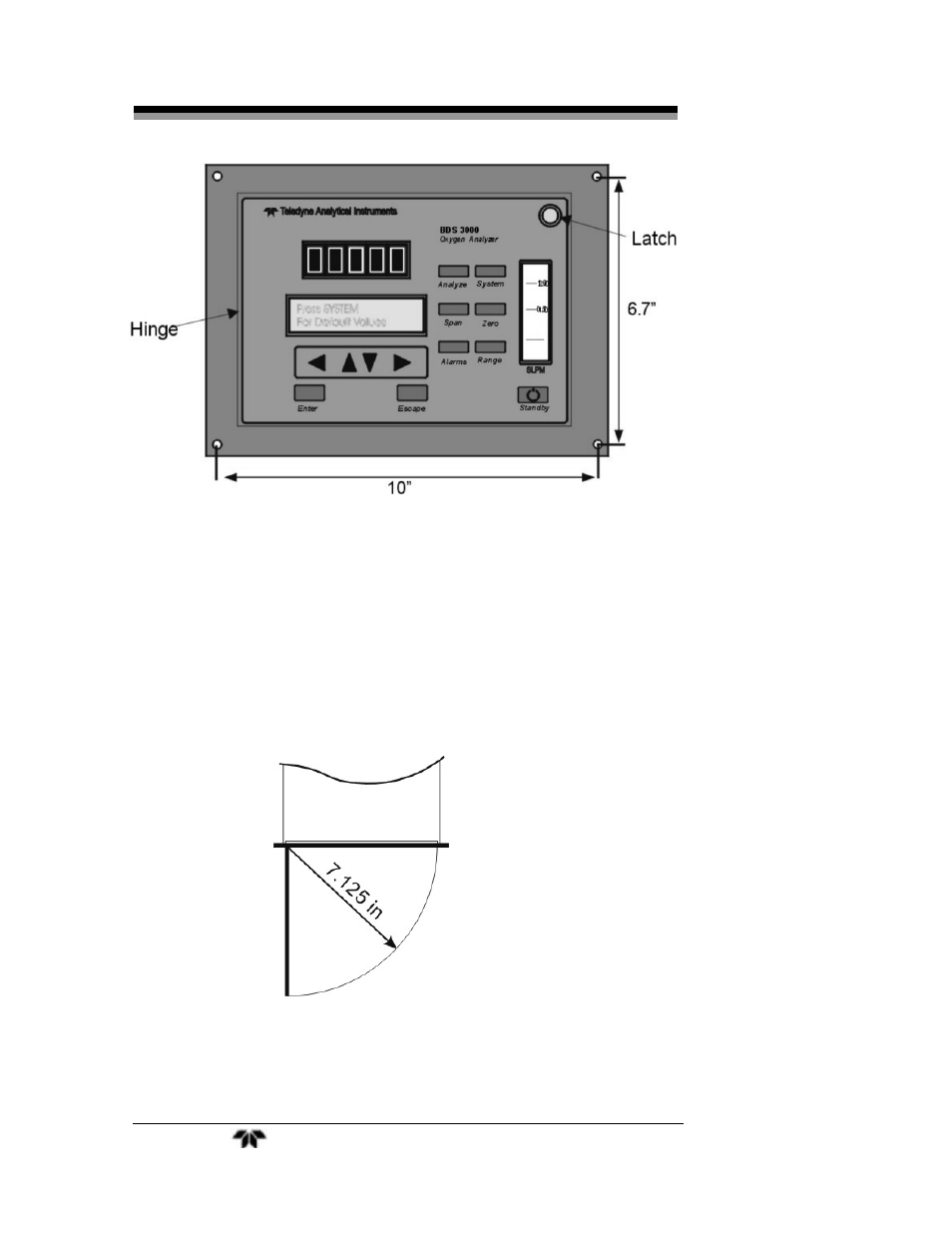

Figure 3-1: Model BDS 3000 Front Panel
All operator controls are mounted on the control panel, which is
hinged on the left edge and doubles as the door that provides access to
the sensor and cell block inside the instrument. The door is spring
loaded and will swing open when the button in the center of the latch
(upper right corner) is pressed all the way in with a narrow gauge tool
(less than 0.18 inch wide), such as a small hex wrench or screwdriver
Allow clearance for the door to open in a 90-degree arc of radius 7.125
inches. See Figure 3-2.
Figure 3-2: Required Front Door Clearance
