PROLiNK® WNR1004 User Manual www.prolink2u.com
Revision 1.0 (Apr’09)
41
3.6 Firewall

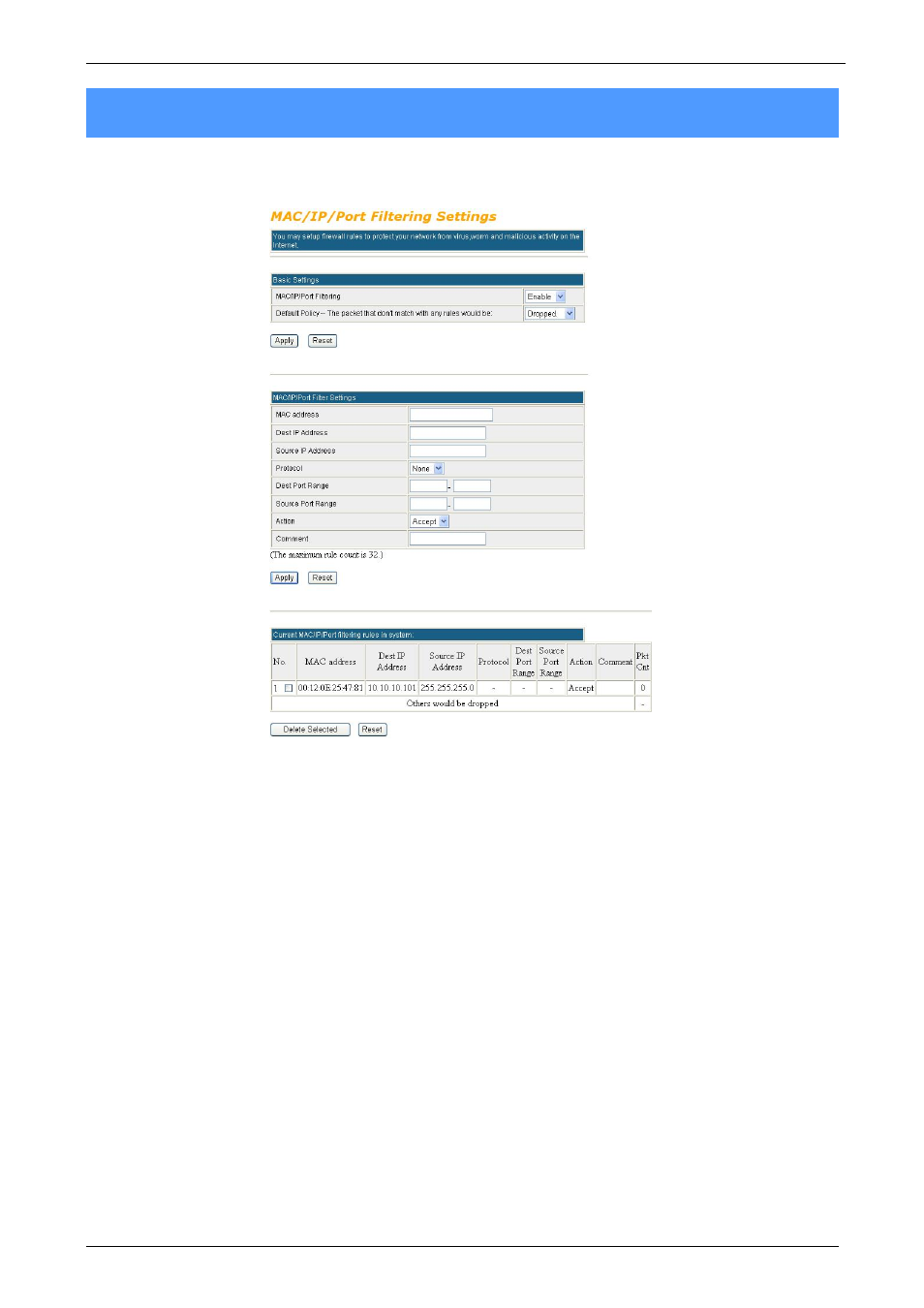

3.6.1 MAC/IP/Port Filtering
MAC/IP/Port Filtering Select Enable or Disable from the pull-down list.
Default Policy Select Accepted or Dropped from the pull-down menu, to accept or deny
connection for the MAC that user set in below settings.
Apply Click to save and apply the current settings.
Reset Press to discard the current settings.
MAC Address Enter the client MAC address that user would like to connect(accept) or
disconnect(drop).
Dest IP Address Enter the local server’s IP address.
Source IP Address Enter the source IP address.
Protocol Select the protocol (None, TCP, UDP or ICMP) used to the remote system or
service.
Dest Port Range
Source Port Range For TCP and UDP services enter the beginning of the range of port numbers used
by the service. If the service uses a single port number, enter it in both the start
and finish fields.
Action Select rules for DROP, or rules for ACCEPT form the pull-down menu. Select Drop
to disconnect with the Wireless Portable Router that MAC address has be set, and
ACCEPT to allow the device that connect with the Wireless Portable Router.
Comment Key in a description for these settings.
