7HFKQLFDO GDWD
Wire sawing system
6.%
page 12 SK-B_0008_e.mif
2.5 Feed types
Work may only proceed with automatic feed
(electric or hydraulic).
Electric feed
An electric feed motor is mounted on the feed
shaft of the HCCB-7 drill stand. The electric
feed motor is controlled by the employed
control unit. To ensure that the electric feed
motor has sufficient space next to the drive
motor, the rotating feed plate (99MS-60147-80
/ 960601) must be mounted which turns the
electric feed motor by 90°.
5RWDWLQJ IHHG SODWH 06
LQFOXGHG LQ WKH VFRSH RI VXSSO\ RI WKH 6.% ZLUH VDZ
(OHFWULF IHHG PRWRU
0.
Hydraulic feed
A hydraulic feed motor is mounted onto the
feed shaft of the HCCB-7 drill stand. The
hydraulic feed motor is controlled by the
connected power unit. To ensure that the
hydraulic feed motor has sufficient space next
to the drive motor, the rotating feed plate
(99MS-60147-80/960601) must be fitted which
turns the hydraulic feed motor by 90°.
5RWDWLQJ IHHG SODWH 06
LQFOXGHG LQ WKH VFRSH RI VXSSO\ RI WKH 6.% ZLUH VDZ
+\GUDXOLF IHHG PRWRU
0.

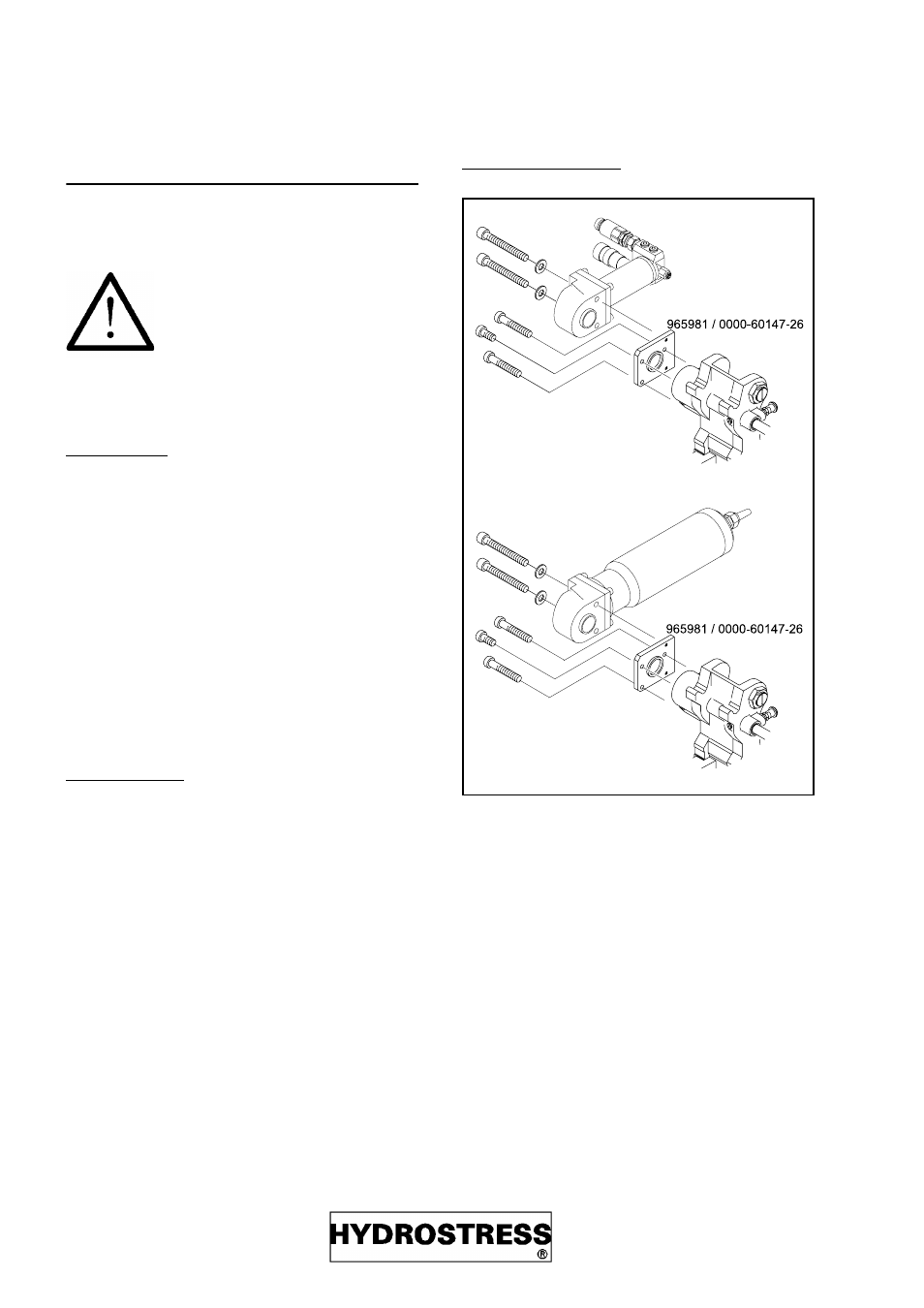

Rotating feed plate:
Never initiate a feed motion by
hand. The operator would be too
near the danger zone. (Wire
breaks - wire whipping - spun-off
beads!)
