Making Control Box Connections:
To make the connections disassemble the connector plug attached to the side of the control
box. Use 1/4 inch poly tube, MVP number 01417 and Hose Clamp 7701-2-1 to make
connections between the connector plug and component. Connections are made by sliding
the Hose Clamp onto the correct poly tube pushing the poly tube onto the correct barb fitting
and thread the Hose Clamp over the poly tube and barb fitting. It is a good idea to mark both
ends of each piece of tubing to aid in trouble shooting and plumbing.
The CB-5000 is a modular system and for this manual it will show how to make all
connections. If the connection to the Vacuum valve, RTM valve or the Gun are not going to be
used you must plug the
“OFF” signals. This can be done by attaching a short piece of poly
tube to correct port and folding it over (kink) then tape it to itself, or plugging it with something.
The “ON” signals or other components will only blow air if they are pushed, but can be plugged
as desired by following the process mentioned above.

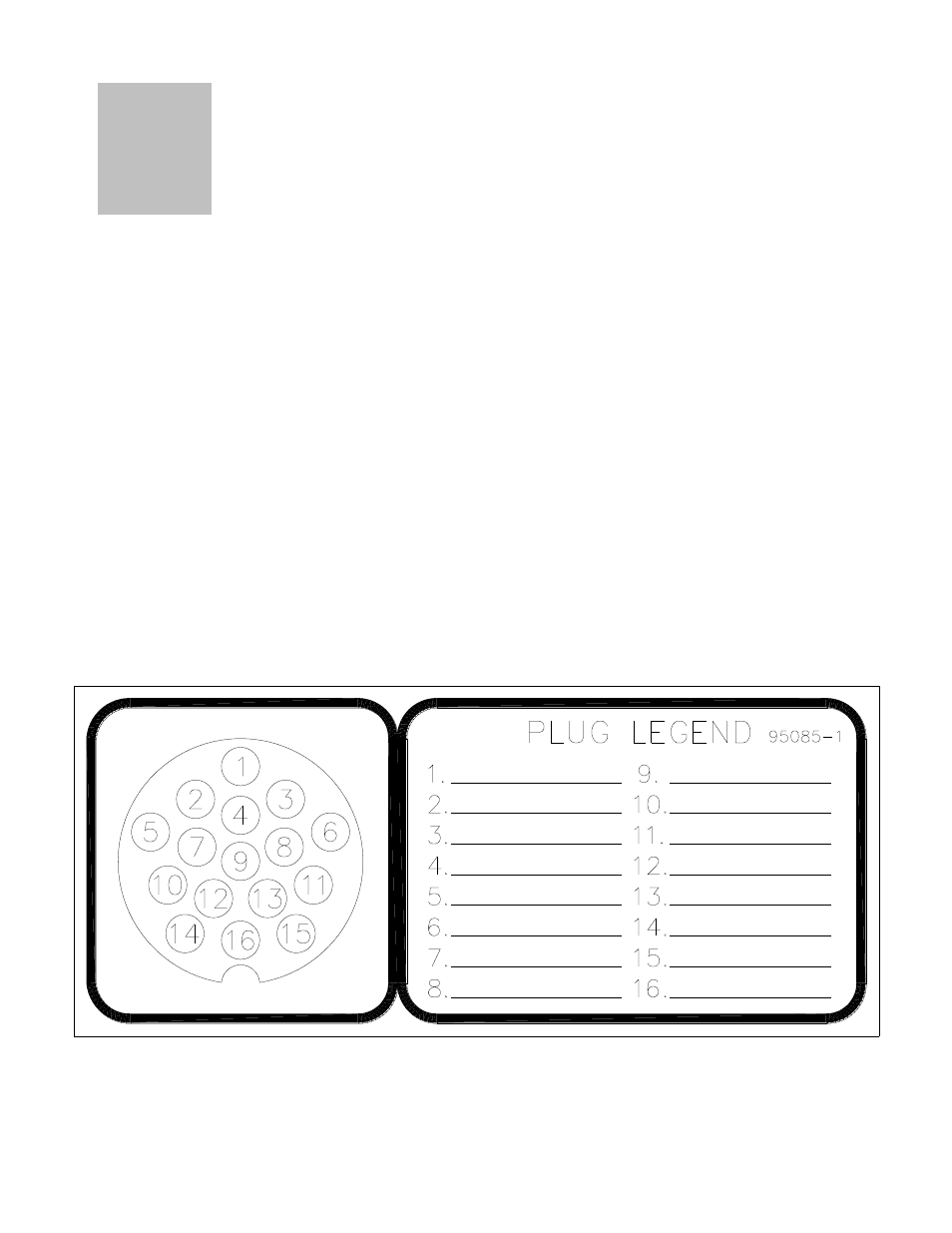

Below is a diagram of the signal connections for the CB-5000-PRX RTM Control Box.
It is best to organize and plan the routing of the tubing as it is installed to make the installation
easier and look better. Use plastic ties or tape to pair similar tubing and control the tubing
bundle.
3
SHIFT VALVE SUPPLY
SOLVENT TANK PRES.
VACUUM VALVE OFF
VACUUM VALVE ON
AIR PURGE
SOLVENT PURGE
RTM VALVE ON
RTM VALVE OFF
GUN ON
GUN OFF
