29
OPTIONAL PARTS AND ASSEMBLIES
PART NO. ITEM DESCRIPTION QTY
1 58704-1 1 MOUNTING PAD - PRO GUN
PARTS LIST

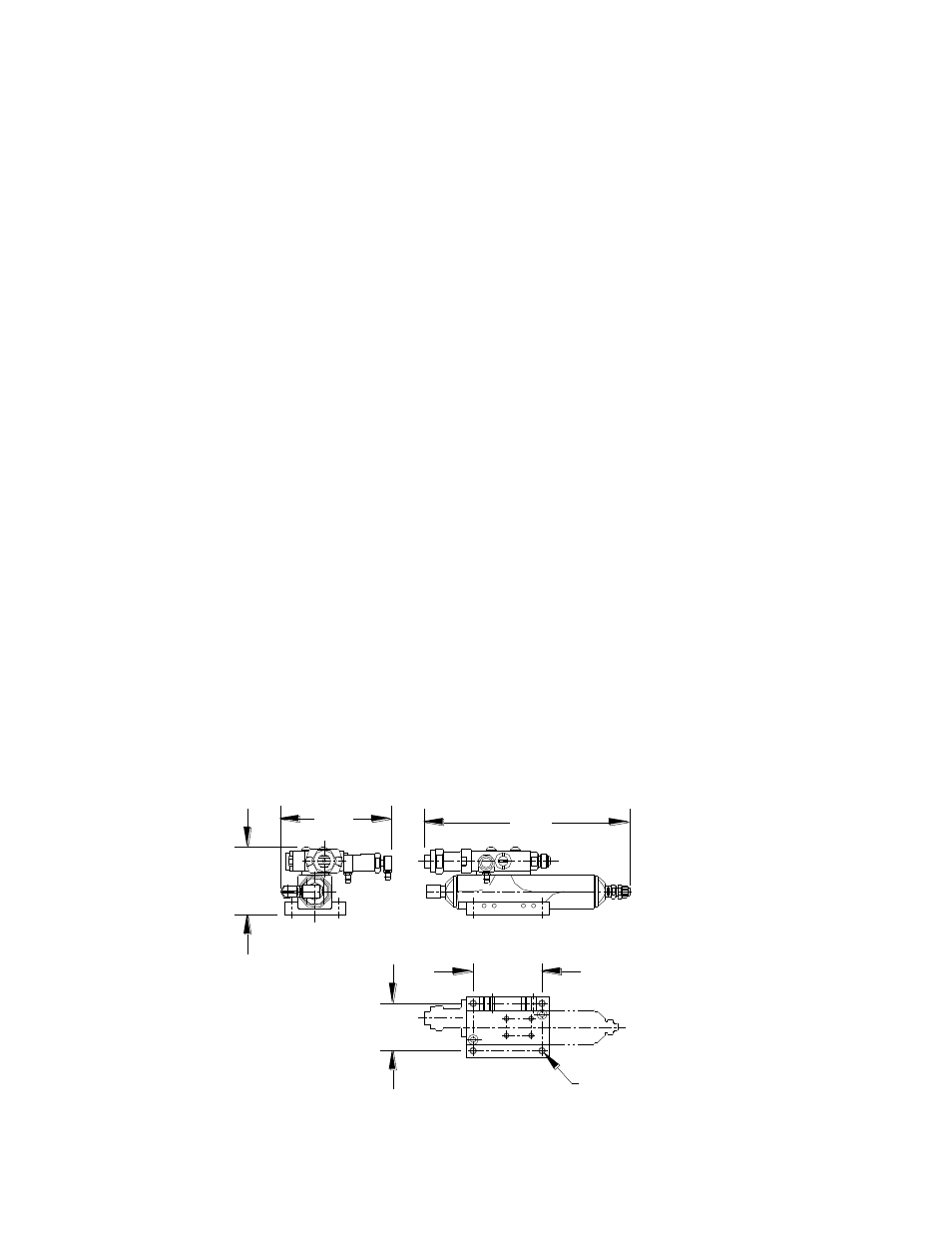

Auto Pro Gun Assembly CPC-1000-A-INT
PART NO. ITEM QTY DESCRIPTION
6A 5107-27-2 1 CRITICAL TURBULENT MIXER
1.
7
5
4-1/4
2-1/2
5006
VENUS
4x 1/4-20 UNC
(PARTIAL BOTTOM VIEW)
2.55
7-5/8
MOUNTING HOLES
NOTE: WEIGHT (AS SHOWN) = 835 GRAMS.
2 CPC-1200-A 1 ACTUATOR ASSEMBLY
3 5104-00-01-A-INT 1 GUN BLOCK ASSEMBLY
5 F-HB-04C-08 1 HEX BOLT
4 F-SW-04 1 LOCK WASHER
7 T-002552C 1 SPRAY NOZZLE .052 X 50
8 8704-4-1 1 NOZZLE CAP
9 02806-2 2 PAN HEAD SCREW
3A 5104-00-03-A 1 ABRASIVE GUN BLOCK
6 5107-27-3 1 STD TURBULENT MIXER
