6
Front Panel Description:
The front panel bezel material is flame and scratch resistant, textured plastic with clear viewing
window that meets NEMA 4X/IP65 requirements, when properly installed. Continuous
exposure to direct sunlight might accelerate the aging process of the plastic material used in
the bezel. The bezel should be cleaned only with a soft cloth and neutral soap product. Do
NOT use solvents.
There are up to seven annunciators available in the lower display that illuminate to inform the
operator of the counter and output status. See Figure 10, Front Panel, for a description of the
annunciators.
Four front panel keys are used to access different modes and parameters. The following is a
description of each key.
Do not use tools of any kind (screwdrivers, pens, pencils, etc.) to operate the keypad of this
unit.

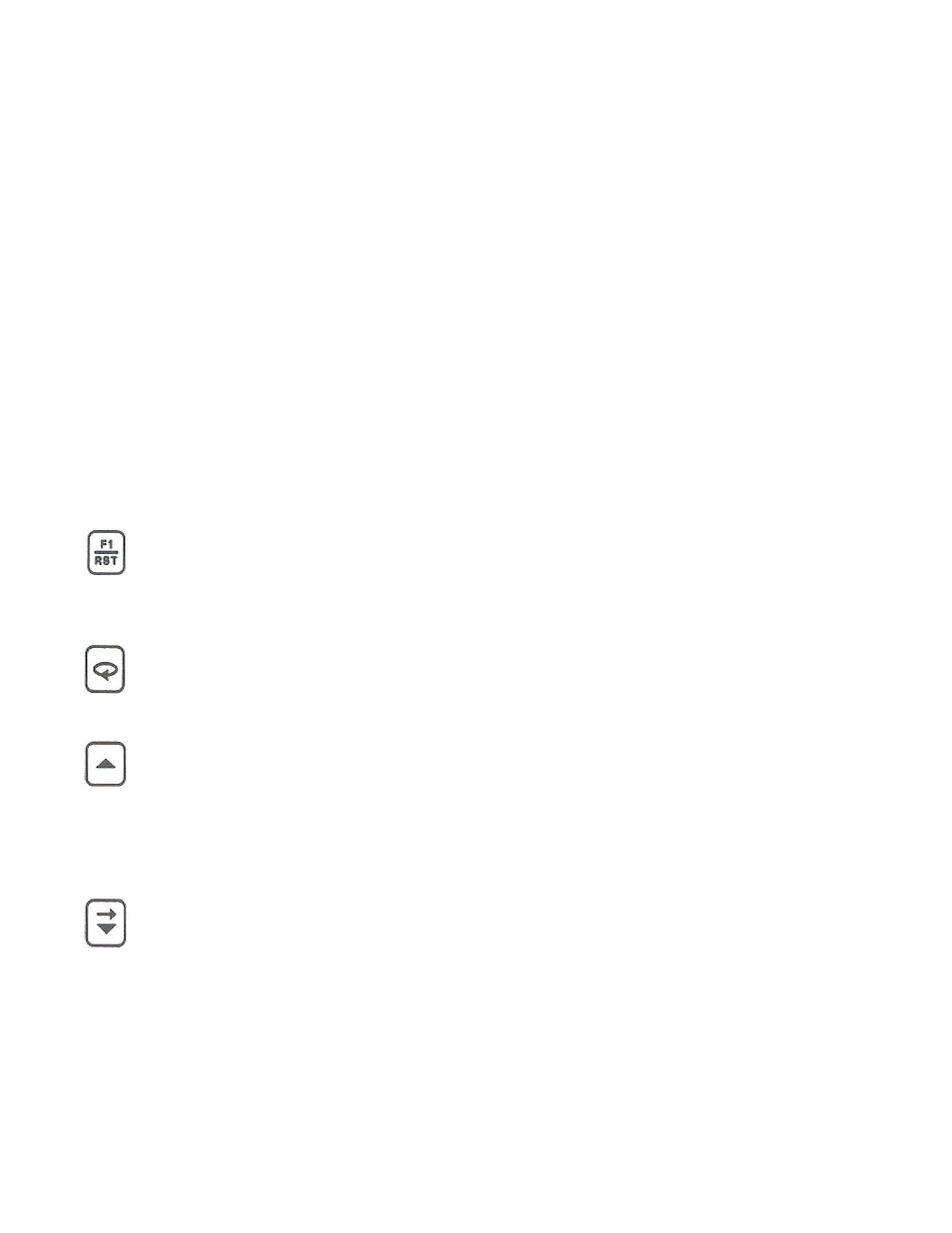

Keypad Functions:
This key is a user programmable key. When the key is pressed, the unit performs the
appropriate function as programmed. The RST printing on this key is used as a quick
reference for the operator if the function key is selected for a reset function.
This key is used to access programming, enter changes to data values, and scroll
through the available parameters in any mode.
This key selects the next available mode option during programming. When
programming a numerical value in digit entry mode, this key is used to increment the selected
digit position. When in auto scrolling entry mode, it increments the value. When in the
operating mode, this key is pressed to allow changing of the data value viewed in the
secondary display.
When programming a numerical value in digit entry mode, this key accesses the value
and selects the digit to the right. When in auto scrolling entry mode, it decrements the value.
When in the operating mode, this key is pressed to allow changing of the data value viewed in
the secondary display.
