Miscellaneous Connections:
1. Screw the Sensor (APS-1025) in to the Sensor Mount (CSD-1005-M12) on the side of the
pump base plate (see drawing CSD-1000-UPS sensor assembly
– UPS Drive in the
drawing section).
2. Connect the main air supply to the control box supply ball valve. The air supplied to the
control box should be clean and dry. (minimum 8 CFM @ 100psi)
3. Connect the regulated pump air supply to the air motor inlet.
4. Plug the power cord into an appropriate power supply. (110-220 volts AC)

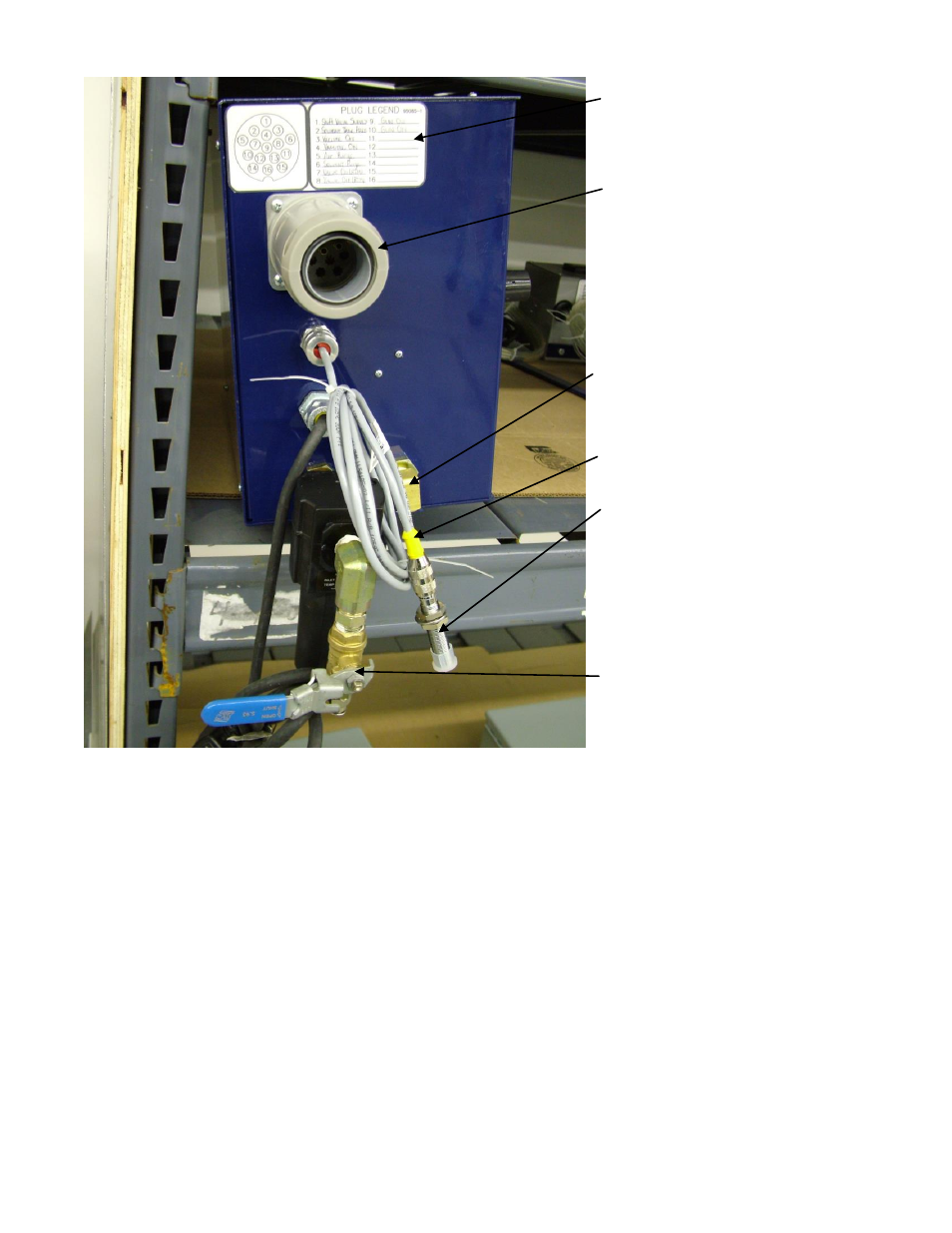

CONNECTOR PLUG & INNER
GUARD
PIN OUT/ PLUMBING DECAL
REGULATED AIR SUPPLY TO
AIR MOTOR
SENSOR (APS-1025) ATTACHES
TO CSD-1000-UPS and CSD-1000-
APS, LOCATED ON THE PUMP
BASE PLATE
– USE SENSOR E-
SEN-102 FOR PATRIOT UNITS.
SENSOR CABLE (APS-1024)
USED WITH APS & UPS UNITS
MAIN AIR SUPPLY TO THE CB-
5000-PRX RTM CONTROL BOX
