Introduction:

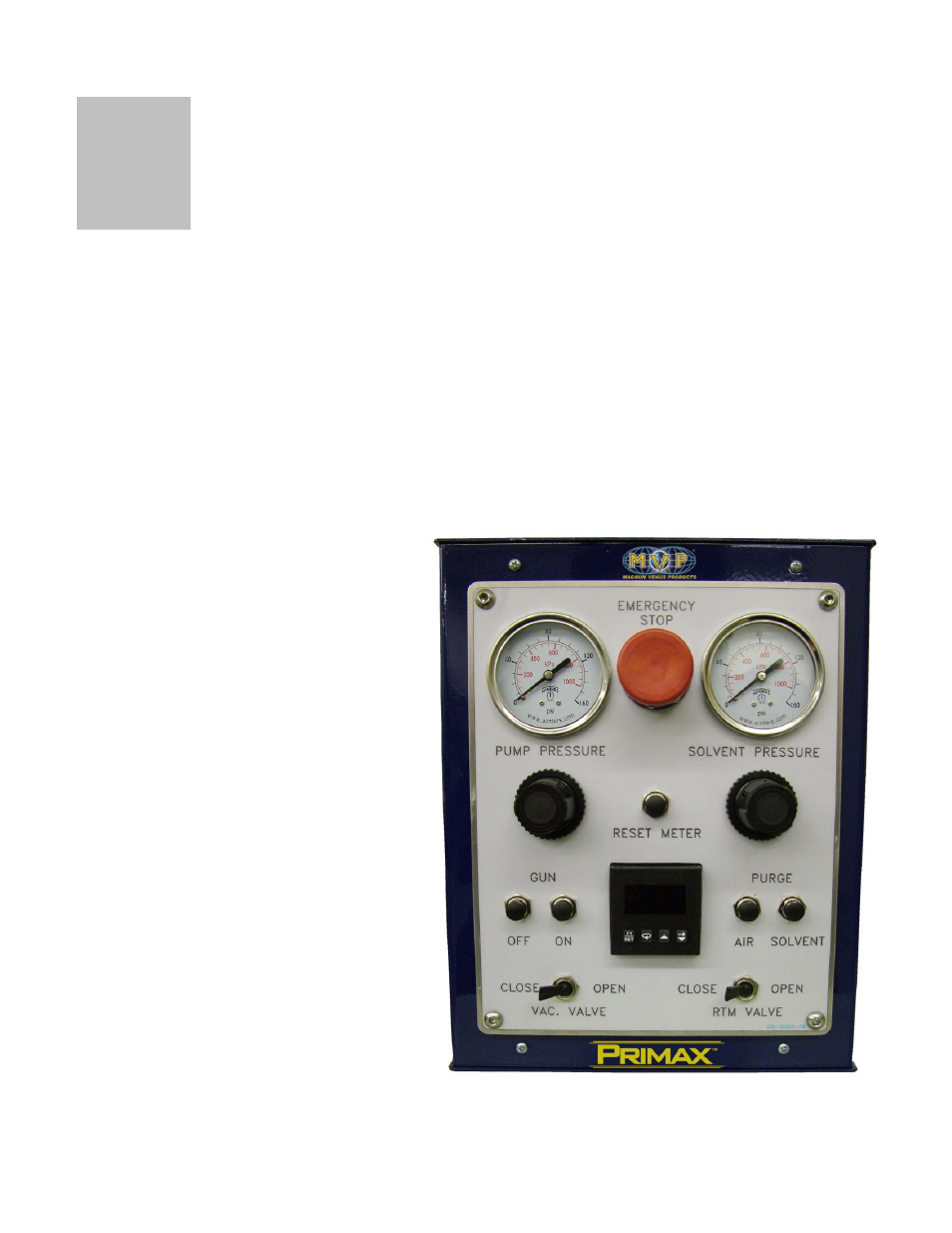

The CB-5000-PRX RTM Control Box is a modular system used to manually control the RTM
process. The CB-5000-PRX RTM Control Box includes a Digital Resin Meter. Using an optical
sensor, pulses are sent to the meter as the pump moves and then when a preset number
(amount of resin) is reached the gun & pump are turned off. It can be used with a basic
Primax pumping system or added to an existing RTM system. Then as the RTM process
demands more control, components can be added and manually controlled at the CB-5000-
PRX Control Box.
The CB-5000-PRX gives the option to control the following components:

Pump pressure

Solvent Flush pressure

Gun ON

Gun OFF

Solvent Purge / Flush

Air Purge / Flush

RTM Valve ON (injection port)

RTM Valve OFF (injection port)

Vacuum Assist Valve ON

Vacuum Assist Valve OFF

Digital Resin Meter (meters an
accurate amount of resin)
