37
DESCRIPTION PART NO. ITEM
PARTS LIST
QTY
ASSEMBLY - 1:1 GUN BLOCK CPD-4100-A
SEAL 02441-1 1 2
2 F-CS-832-10-GR8 4 SOCKET HEAD CAP SCREW
3 03199 2 BALL
4 04319 2 SPRING
5 5104-3-1 2 SECONDARY SEAL
6 5104-4-1 2 RELIEF SPACER
7 5104-5-1 2 RESIN SEAL
8 5104-7-1 2 PACKING RING
9 5104-8-1 2 PACKING NUT
10 5104-9-1 2 RESIN FITTING
11 5104-10-1 1 CENTER SPACER
12 5104-11-1 1 ACTUATING STEM
13 5104-21-1 2 FLUSH VALVE SPLIT SEAL
14 5104-22-1 2 FLUSH VALVE NECK
15 5104-23-1 2 FLUSH SEAL BODY
17 5104-25-1 2 FLUSH VALVE BUTTON
18 5104-26-1 2 FLUSH VALVE SEAL
19 5107-27-3 1 TURBULENT MIXER
20 F-BHCS-04C-06 2 SCREW
21 O-E-007 2 O - RING *DO NOT GREASE THIS O-RING*
22 O-E-008 2 O - RING *DO NOT GREASE THIS O-RING*
23 O-E-3-904 2 O - RING
24 7304-3-1 4 NYLON SEAL
25 7701-2-1 4 HOSE CLAMP
26
27
7701-6-3 4 BARB FITTING
28 8704-4-1 1 NOZZLE CAP
29 9203-2-3 2 SPRING
30 58691-1 1 1:1 GUN BLOCK
31 58692-3 1 MIX HOUSING
32 58693-1 1 VALVE ROD
33 58694-1 2 FACE SEAL
35 58696-1 2 PLUG

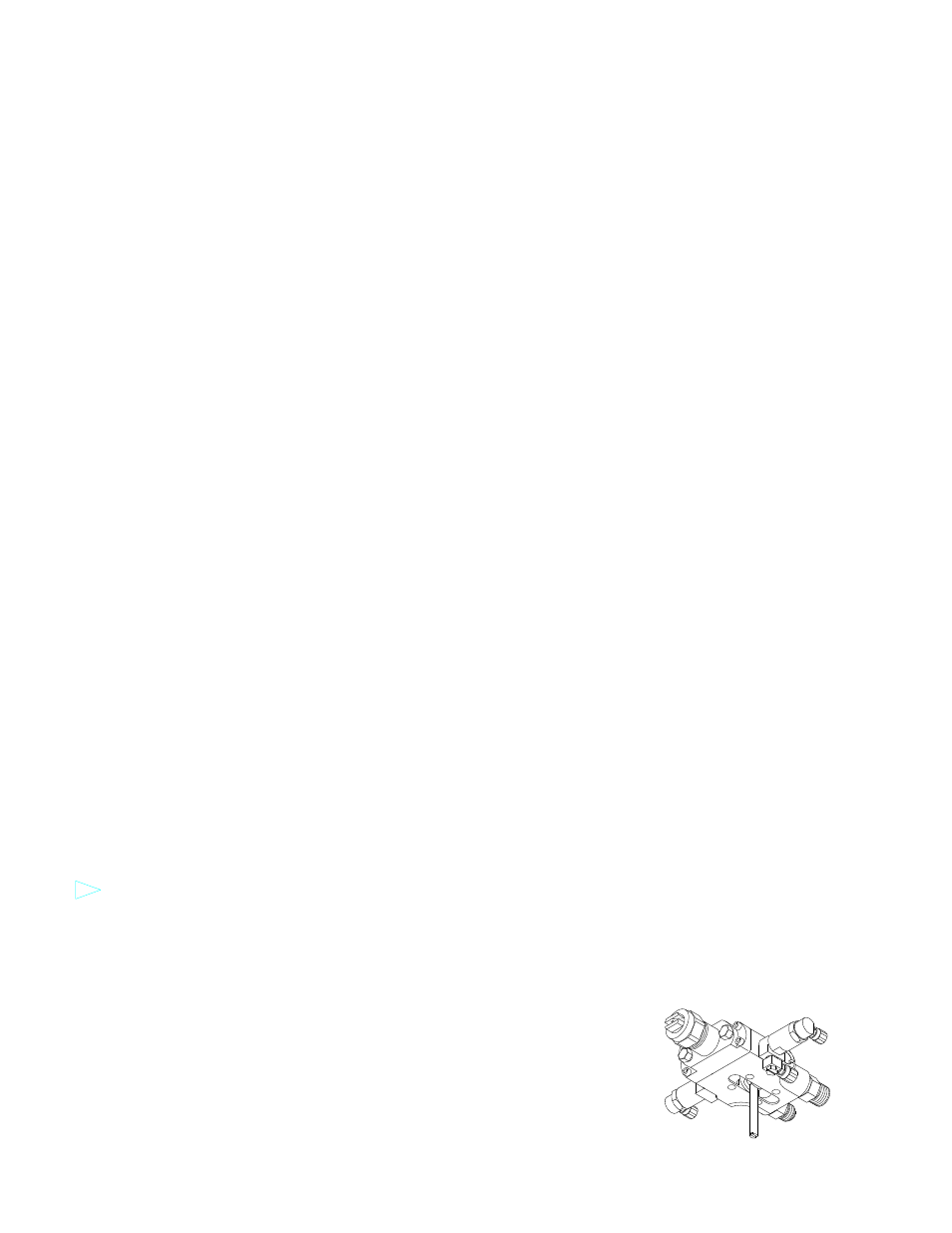

FIGURE 1-1
ELBOW FITTING TRU-1021 2
PLUG SEAL 58695-1 34 2
58752-4 FLOW RESTRICTOR 36 1
ASSY - MIX HOUSING
ASSY - FILLED RESIN SEAL
ASSY - FLUSH ELBOW
ASSY - FLUSH VALVE
OPTIONAL PARTS AND ASSEMBLIES
DESCRIPTION
58692-1
5104-29-01
5104-02-01
58742-1
PART NO.
40
15A
39
38
ITEM
1
1
2
2
QTY
36A 58752-2 1 2:1 FLOW RESTRICTOR
FT-652 37 1 SPRAY NOZZLE
58752-3 36B 1 3:1 FLOW RESTRICTOR
58752-4 36C 1 4:1 FLOW RESTRICTOR
58752-5 36D 1 5:1 FLOW RESTRICTOR
58752-6 36E 1 6:1 FLOW RESTRICTOR
58752-7 36F 1 7:1 FLOW RESTRICTOR
58752-8 36G 1 8:1 FLOW RESTRICTOR
9:1 FLOW RESTRICTOR 1 58752-9 36H
10:1 FLOW RESTRICTOR 1 58752-10 36J
1 58693-1 VALVE ROD MUST BE INSTALLED WITH THE SLOTTED END TO THE LEFT SIDE
OF GUN BLOCK WITH ACTUATING STEM DOWN AS SHOWN ON DWG.
47 58716-1
04356
O-B-010
58717-1
58718-1
00973
58681-1
43
46
44
45
41
42
PUSH STEM
SPRING
O-RING
MANUAL / AUTO FLUSH BODY
BACK UP RING
GRIP RING
FLUSH VALVE BODY
2
2
2
2
2
2
2
