Power supply
90..265VAC
>HV<
15...45VAC
10...63VDC
>LV<
C018 cable
Shield
INTERNAL VIEW OF THE ALUMINUM CONVERTER
Dangerous voltage on block 12-13:
- 60 Vdc Max
- 250 V Max on commutation coils (switching)
Signalling LED:
See interpretation notes page 10
IF2 socket
Keyboard
C018 CABLE
1
2
3
S
12
13
E1
E2
C
SH
B1
B2 1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18 19 20
-
E C
+
SC B2 B1
OUT2 OUT1 24V 24V COILS
E1 E2 C
4-20mA ELECTRODES
E C
+
-
S
SH
B A
RS 485* INPUT
-
+
RS 485* : OPTIONAL
SEPARATE VERSION TERMINAL BLOCK M1
Sudden movements to the
electrodes cable can cause noise during
measurement Max length of
electrodes cable: 20 m

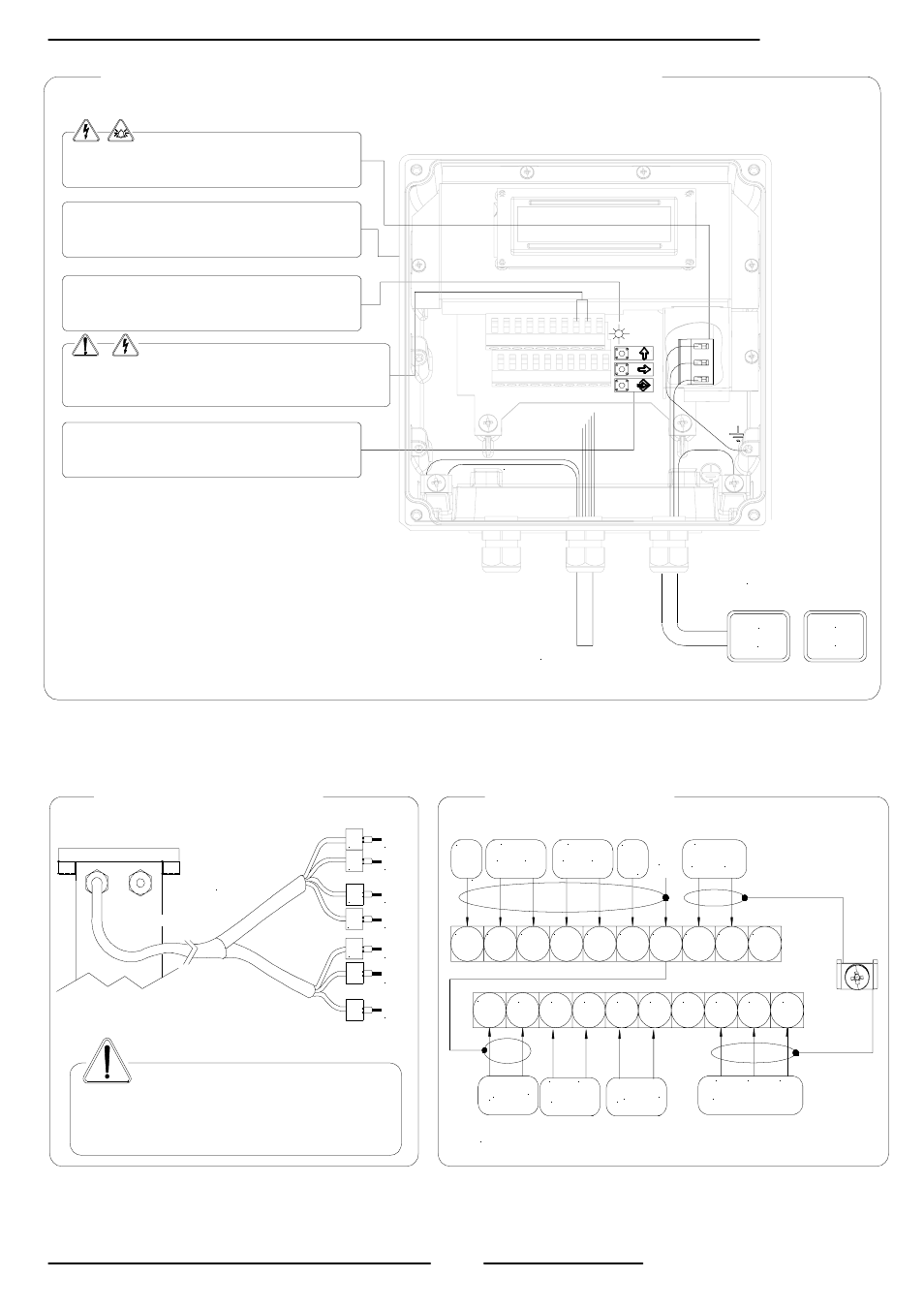

ALUMINIUM CONVERTER TO SENSOR, ELECTRICAL CONNECTIONS
Power supply
