Liquid Controls HML110 IOM - Manual (Page 10)

HML 110
10
110_EN_LC_5_3_6X.doc
0-1,5 V
3-40 V
AUTOCALIB. OFF
T
RESET
0-1,5 V
3-40 V
Tmin = 100ms
BLOCK
0-1,5 V
3-40 V
T
0-1,5 V
3-40 V

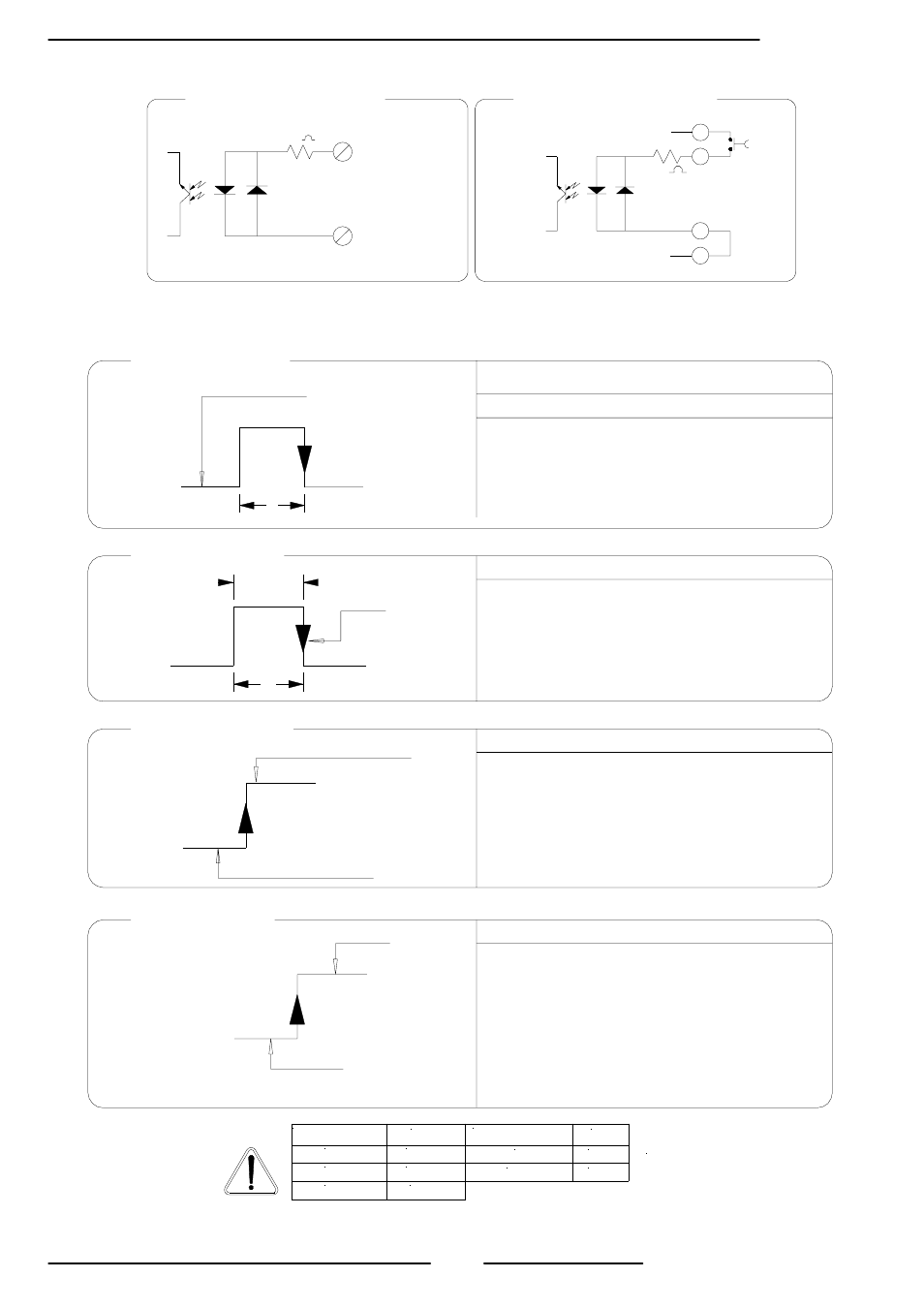

DIGITAL INPUT
OPERATION ON INPUT ON/OFF
3/40 Vdc (ON)
0/1,5 Vdc (OFF)
5 (+)
6 (-)
10 K
5
6
20 0
15
+24
10 K
Auto-calibration
Reset totalizes
Block totalizes
Block totalizes
Totalizers active
Necessary conditions for enabling the function
Necessary conditions for enabling the function
Necessary conditions for enabling the function
Tmin
T > 1 sec. = Auto zero
POS. 5.7 ENABLED (Autozero calibration external command)
POS. 5.1 to 5.4 ENABLED ( partial positive or reverse
flow totalise reset enable).
POS. 5.6 ENABLED ( totalise counting lock command)
POS. 5.8 ENABLED (range change)
Necessary conditions for enabling the function
Range change
Scale 2
Scale 1
10 Hz
20 Hz
50 Hz
80 Hz
150 Hz
220 ms
110 ms
45 ms
30 ms
15 ms
T must be > to Tmin
SAMPLE RATE Tmin SAMPLE RATE Tmin
External power supply Internal power supply
