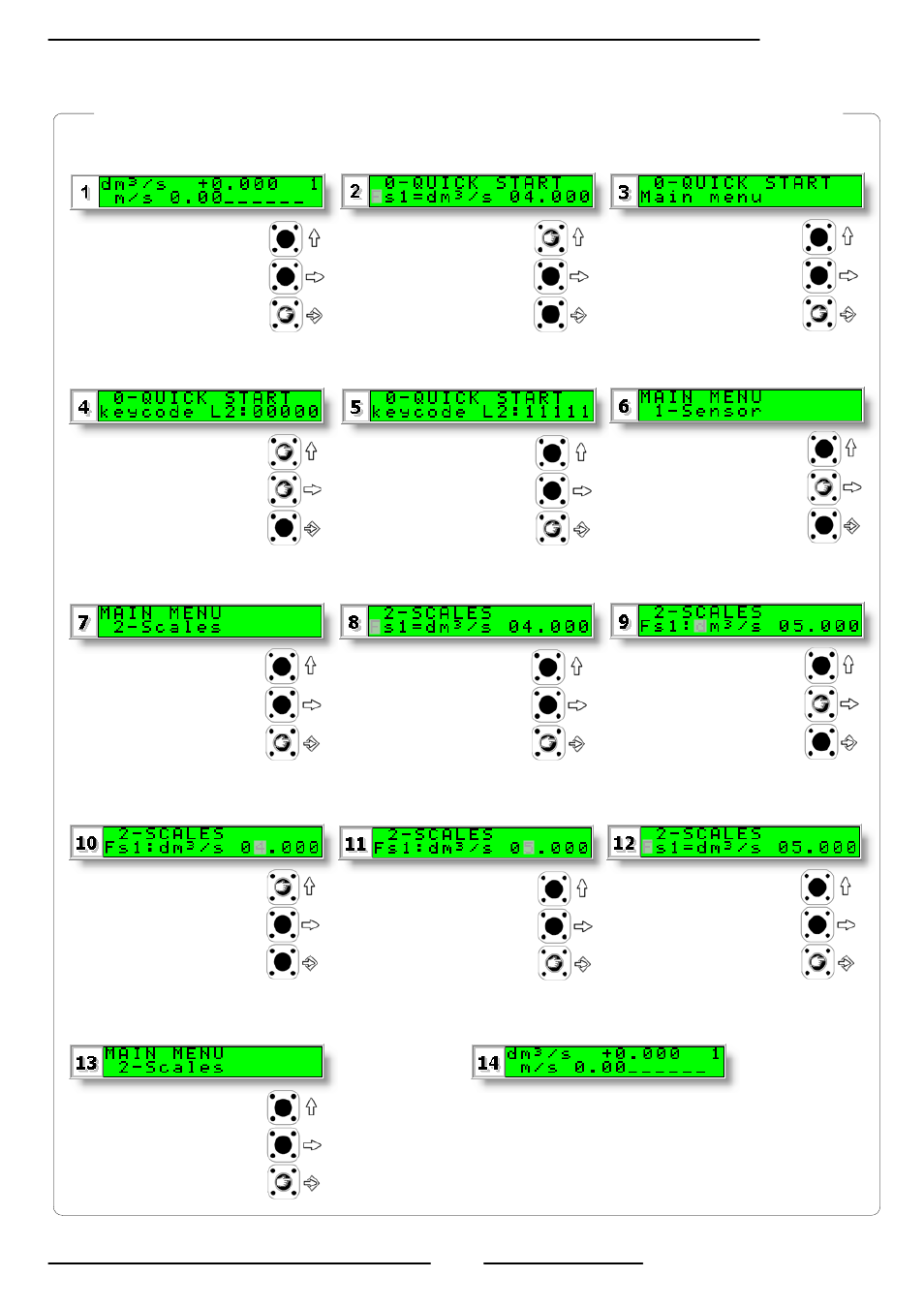

EXAMPLE: “Main menu” function modification. Full scale value 1 (Fs1) from
4dm³/s to 5dm³/s. (Quick start menu enabled)
Enter in the “Quick start menu”
From any of the start-up
(power on) screens
Access to the “Main Menu”
by pressing the key
indicated
Access the “Scale” menu
with a short key press.
Access the function “Fs1”
with a short key press
Change the value by pushing
the button rapidly as many
times as required
Confirm the new value with
a short press of the key
indicated on the keypad
Long push to return to
the main menu groups
Long push to return to
the initialization pages
Initialization page
To enter the main menu
input the key code (11111
as default) by increasing
the ‘0’ to ‘1’ and moving to
the next ‘0’ until the key
code is entered
Press the button indicated
to enter the Main menu
page screen from the Quick
menu page
To enter the key code press
the lower key
To move between main
menu function groups press
the arrow key indicated
Move between the
modifiable options by short
pressing the key indicated
on the key pad
