1.1 Nominal Diameter (ND) of sensor, (enter input value 0-3000 mm )
1.2 Sensor calibration data (Enter value as specified on sensor label)
1.3 Type of sensor: Enter the first two characters of the sensor serial number
1.4 Position of insertion sensor: 0=1/8DN, 1=1/2DN, 2=7/8DN
1.5 Factory parameters
1.6 Enables the empty pipe detection feature
1.7 Value of empty pipe sensibility detection
1.8 Enables the automatic calibration procedure of zero calibration
2.1* Full scale value set for range N.1 (function info & modification page 22)
2.2* Full scale value set for range N.2
2.3* Unit of measure and number of decimal place (Info & modification page 23)
2.4* Pulse value on channel 1 (Function Info & modification page 23)
2.5* Pulse value on channel 2 (Function Info & modification page 23)
2.7* Duration of the pulse generated on channel 2 (Info & modification page 23)
2.8 Full scale frequency for channel 1 (0.1Hz-1000.0Hz)
2.9 Full scale frequency for channel 2 (0.1Hz-1000.0Hz)
2.6* Duration of the pulse generated on channel 1 (Info & modification page 23)
3.1* Time constant (function info & modification page 23)
3.2* Acceleration threshold (function info & modification page 23)
3.3* Anomalous signal peak cut off threshold (Info & modification page 24)
3.4 Low flow zero threshold: 0-25% of full scale value
3.5 Filter on the power supply: 0.1s="ready" measure; 0.5s=filter of noise on the liquid
3.7* Automatic change of scale (function info & modification page 24)
3.8* Energy saving function (function info & modification page 24)
3.6 Enable automatic hourly internal calibration cycle. Measurement stopped for 8-15s.
4.1 Maximum flow rate value alarm setting
4.2 Minimum flow rate value alarm setting
4.3 Hysteresis threshold setting for the minimum and maximum flow rate alarms
4.4 Empty pipe detection threshold. Automatically set by the function 1.9
4.5*Current output value in case of failure (function info & modification page 24)
4.6* Frequency output value in case of failure (function info & modification page 25)

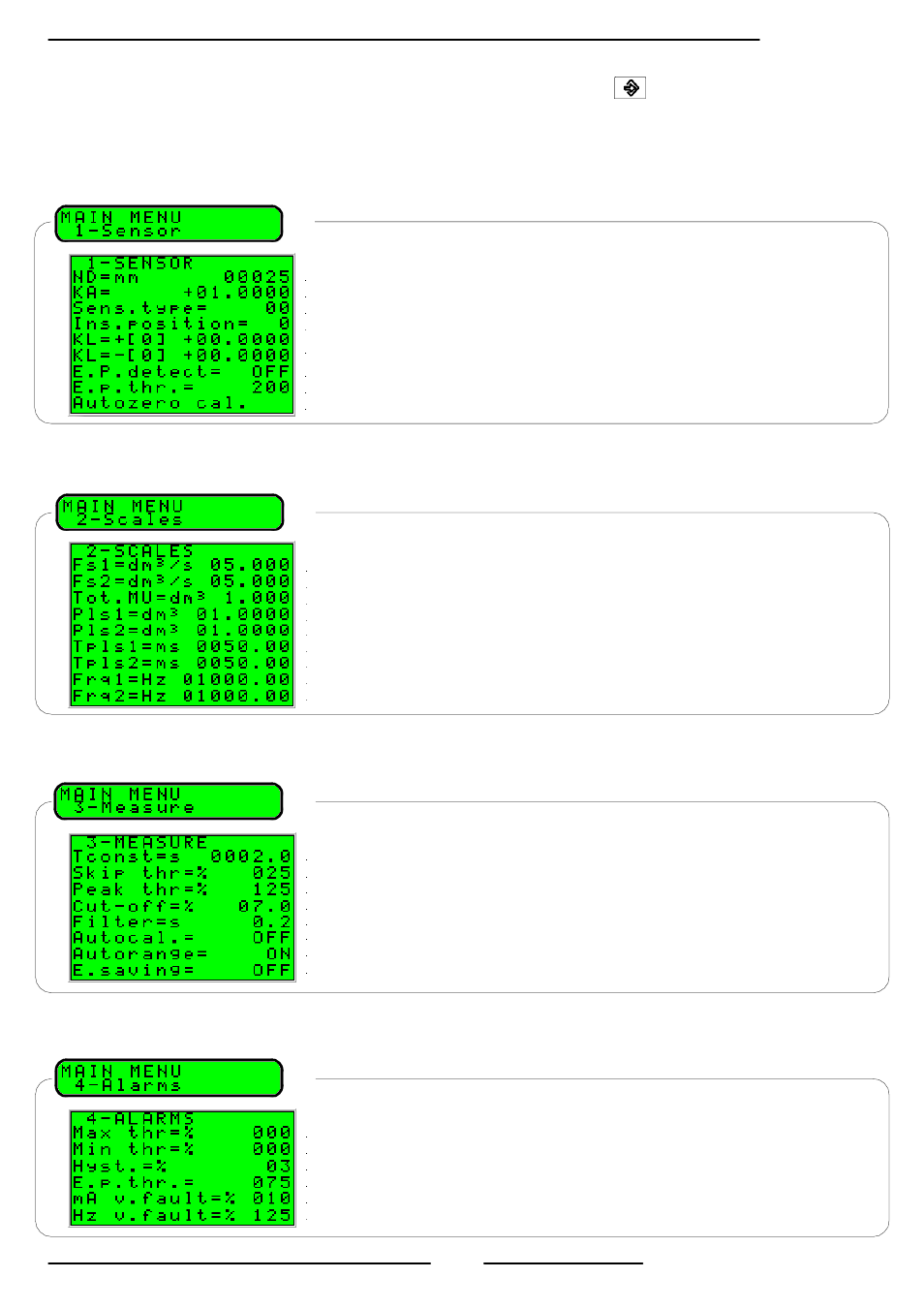

MAIN MENU GROUPS AND FUNCTION DESCRIPTIONS.
The main menu is selected from the Quick Start Menu by pressing the key) and entering the factory
code(11111). F unctions denoted in grey are displayed only with other active functions, or with optional
modules. (for details of the functions with the symbol “*” refer to pages 22-27). Not all the functions
displayed on the converter are shown below are reserved for serving purposes only and not configurable.
