HML 110
14
110_EN_LC_5_3_6X.doc
Active scale
Alarm on
Flow rate visualization
* Direct/Reverse totalizer
visualization
Alternate visualization
* Direct totalizer
Reverse totalizer
Currency value
Alarm description
Sampling frequency
* Direct Reverse totalizer Flow speed
Flow rate visualization Flow rate visualization
Push keypad button
indicated to view the
Flow rate Alarm
If the user dwells on this screen the converter
will automatically scroll through the rest of the
initial visualization pages. If the user presses the
lower key on the keypad they will access the
Quick start menu . Pressing the middle key will
move to the next initial visualization screen.
Note: if the converter is not connected to the
sensor then an ‘Excitation Fail’ will be shown
Push keypad button
indicated to move
between pages
Push keypad button
indicated to move
between pages
ACCESSING THE CONVERT FUNCTIONS AT START-UP (Power On)

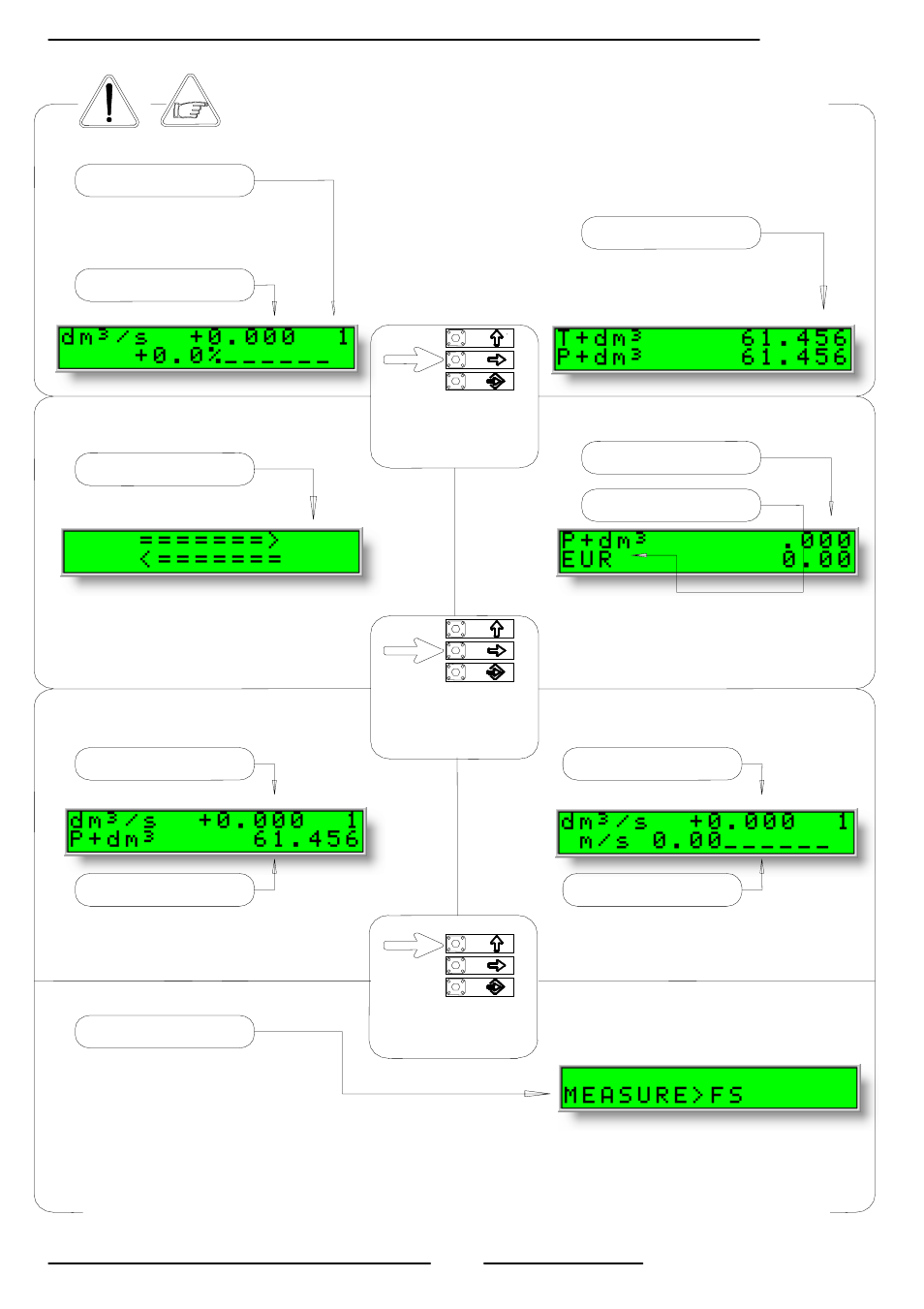

Example of visualized display pages at start-up
The direct exposure of the converter to the solar rays, could damage
the liquid crystals display.
CURRENCY FUNTION ENABLE
* The maximum number shown on the totalizer is 999999999 regardless of the number of user selected
decimals (see page 19 Pos 2.3). Beyond this value the totalizers are reset to zero.
Note: The user will see the
screen displayed (left) at
power on of the converter.
Use the keys on the keypad
as indicated centrally on
this page to move
between the screens
shown (not all shown).
