HML 110

110_EN_LC_5_3_6X.doc

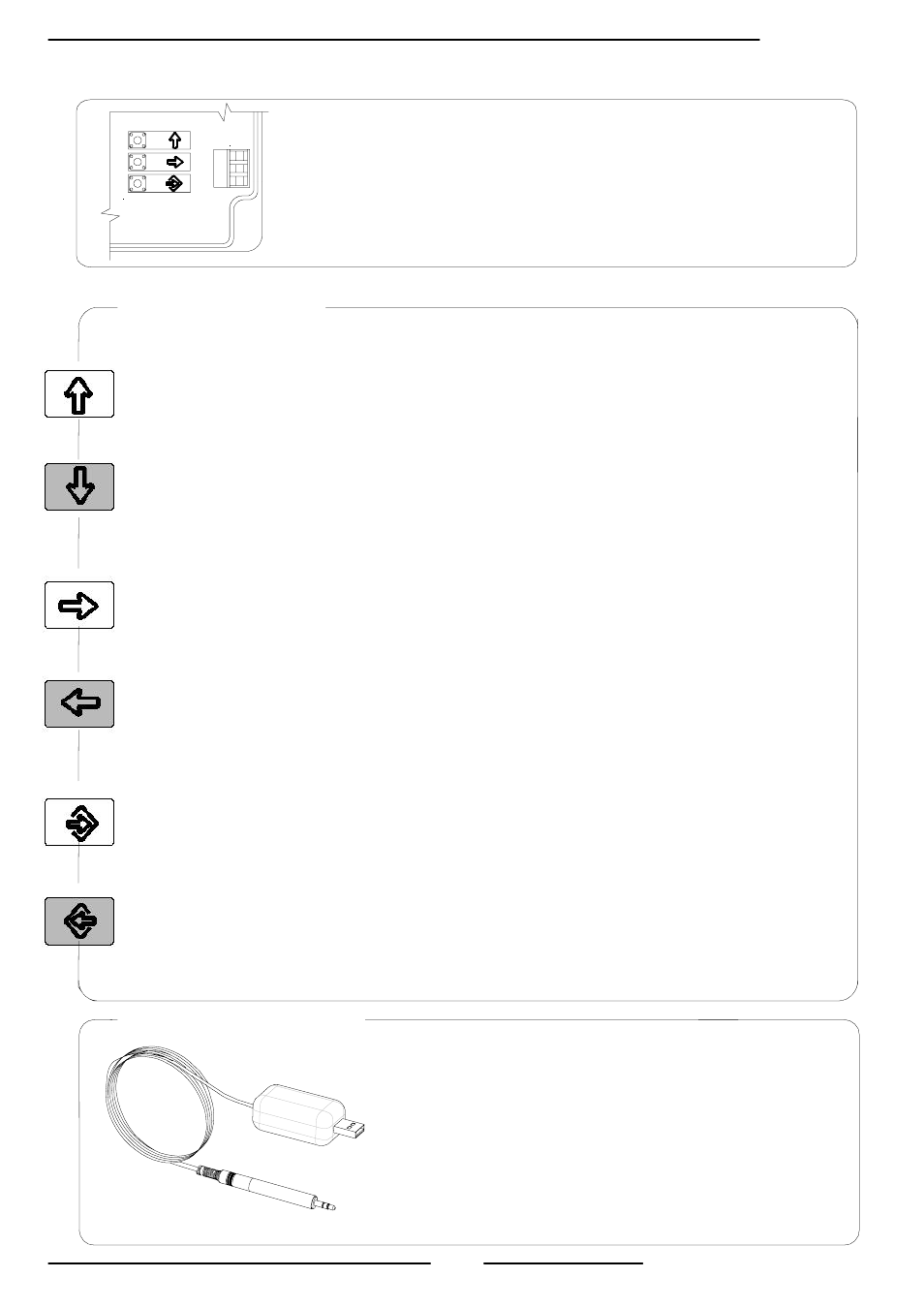

For converters without a keyboard (blind version),

functions are programmed utilizing the IF2 device:

SHORT PRESSING (< 1 SECOND):

Enters/leaves the selected function
Enables the main menu for the converter configuration

Cancels the selected function under progress
LONG PRESSING (> 1 SECOND):

Leaves the current function, in the Quick start or Main menus.
Enables the ‘EXECUTE?’ prompt in the Main menu functions, and total reset

request (when enabled) from the required function
Confirms the selected function

SHORT PRESSING (< 1 SECOND):

Moves the cursor rightwards on the input field

Accesses to the following subject in the Quick start or Main menus

Changes the display of the process data

LONG PRESSING (> 1 SECOND):
Moves the cursor leftwards on the input field

Accesses the previous subject in the Quick start or Main menus

SHORT PRESSING (< 1 SECOND):

Increases the numeric figure or the parameter selected by the cursor
Accesses the previous subject when in the Quick start or Main menus

Batch start/stop (when enabled)
LONG PRESSING (> 1 SECOND):

Decreases the numeric figure or the parameter selected by the cursor
Accesses the next subject in the Quick start or Main menus

Key pad function

ACCESS TO THE CONVERTER KEYPAD

KEYBOARD

The keypad is accessible by loosening the 4 cover screws,
and opening the front cover of the converter. Three KEYS

are set aside of the M1 terminal block allowing the user to

change screen display visualizations and select functions.

Blind converters
