CONVERTER FUNCTION SETTING ACCESS CODES
ACCESS TO THE CONFIGURATION MENUES
The converter’s configuration menus can be accessed in two different modes:

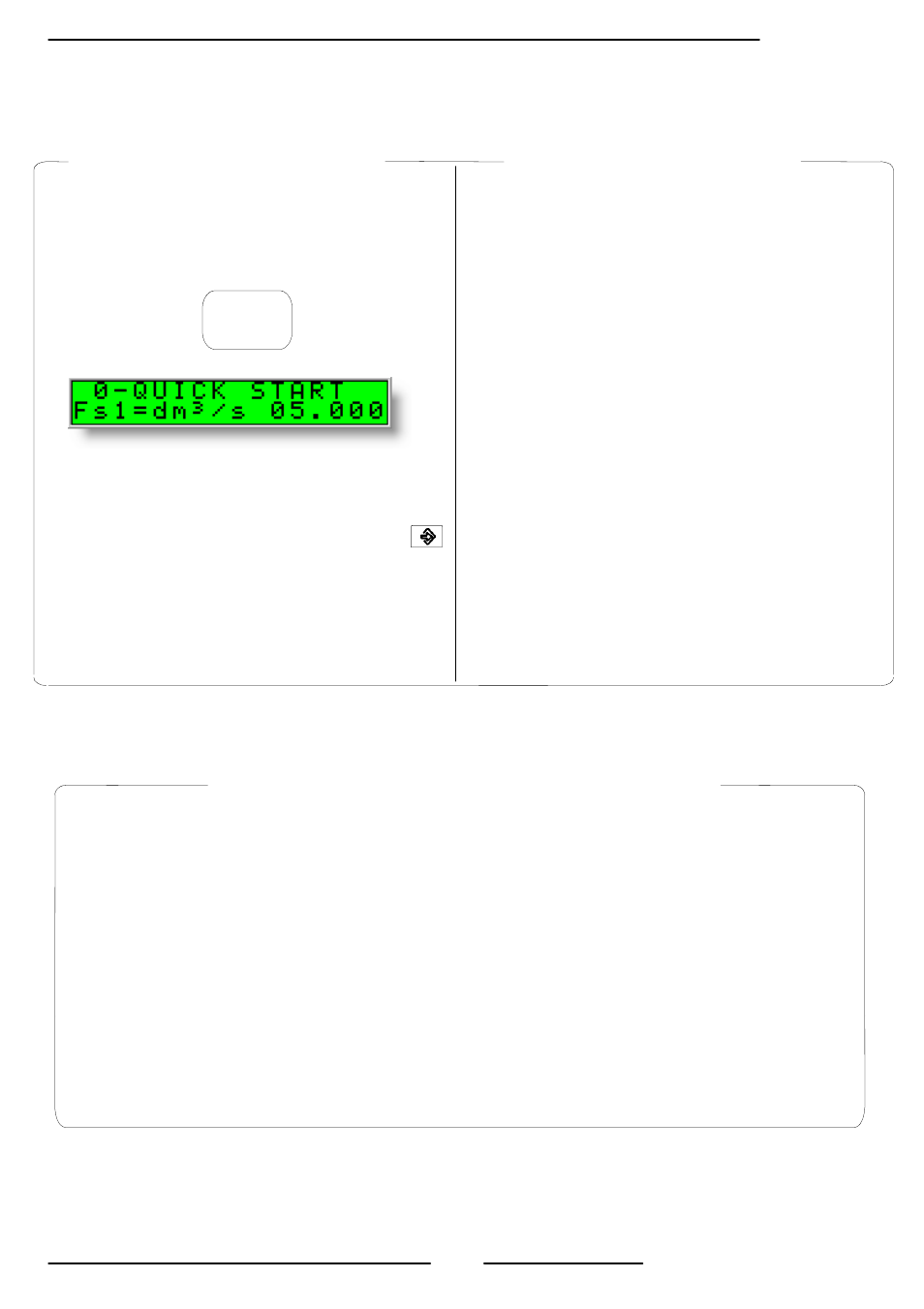

Through the “Quick start menu” it is possible to access directly a
range of principal functions for setting the scale reading and display
characteristics of the sensor (see function explanations pages 18-19)
Through the “Main menu” it is possible to access functions with an
access code
≤ 2, which control more of the sensor’s monitoring, data
processing and output, as well further display options.
The following example (page 17) illustrates how to change some of the values
in the Fs1 display field of the Quick Start menu. The second example (page 18)
illustrates how to change a function parameter in the ‘Main menu’.
Functions in the converter’s ‘Main menu’ are
enabled by the access codes. The
information of this manual is related to all the
functions available with in the L2 level. All
higher level functions are reserved for
servicing and not available.
Description of the L2 access code
(menu “11 Internal data” pos. 11.1, see page
21)
with code L2 = 00000 (with this code
only) you can disable the request of code
L2
*with L2 customized (freely chosen by
the user) you can program all the
functions up to L2 security level, entering
this code whenever you enter the Main
menu.
*ATTENTION: take careful note of the
customized code you have chosen, there is no
way for the user to retrieve or reset it if lost.
User defined access codes
Factory preset access
The converter is delivered with the default
L2 (level 2) access code. The code if
required for accessing ‘Main menu’
functions from the ‘Quick start menu’.
11111
The first level configuration "Quick start
menu" can be automatically accessed with
out the access code by pressing the key
from one of the visualization pages at start
up (power on) of the converter. See page
14 to see the screens from which the Quick
start menu can be accessed
