The ML110 allow showing 5 digit character display for flow rate units. This mean
the maximum flow rate value that can be represent on the display is 19999* (no
matter the positioning of the decimal point ) and the minimum is 0.025.
The converter’s calculation are based on the following formula :
-
DN x DN x 0,008
The results of above calculation give the maximum flow rate at 10 m/s of speed
according to sensor’s diameter; the permitted units for the display are the unit
measure that, in reference to this calculated value, do not exceed the number
19999 ( higher limit ) and 0,25 ( lower limit )
Example for DN 100 :
-
Full scale value : 100 x 100 x 0,008 = 80 l/s
-
PERMITTED unit of measure ( example ) : l/s ( 80.00 ) ; mc/h ( 288.0 ) …
-
NOT PERMITTED unit of measure ( example ) : cm3/s ( 0,08 ) ….
The not permitted example has a unit of measure greater than 5 character digits in
length including the ‘/’, cm3/s.

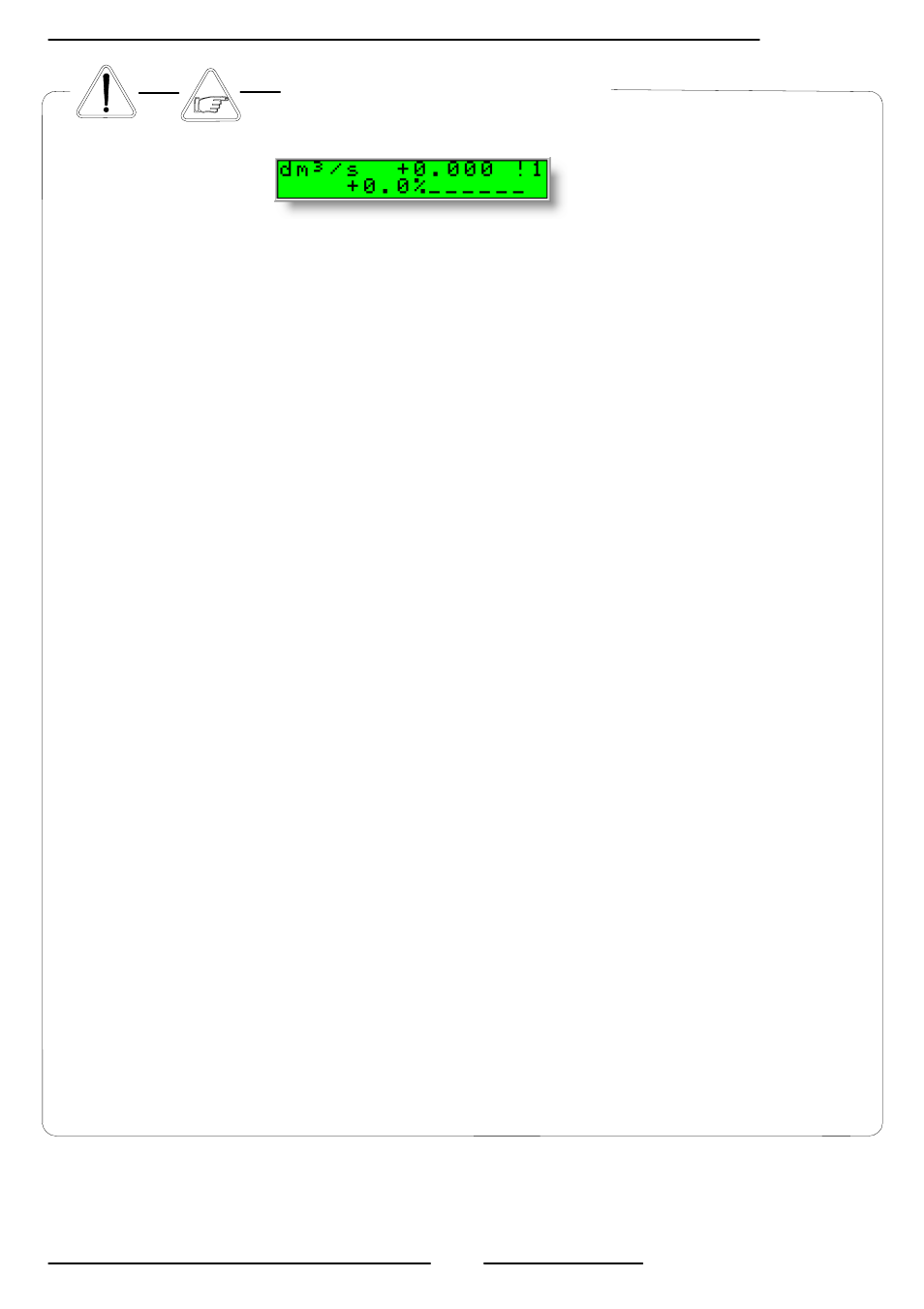

FLOW RATE VISUALIZATION
