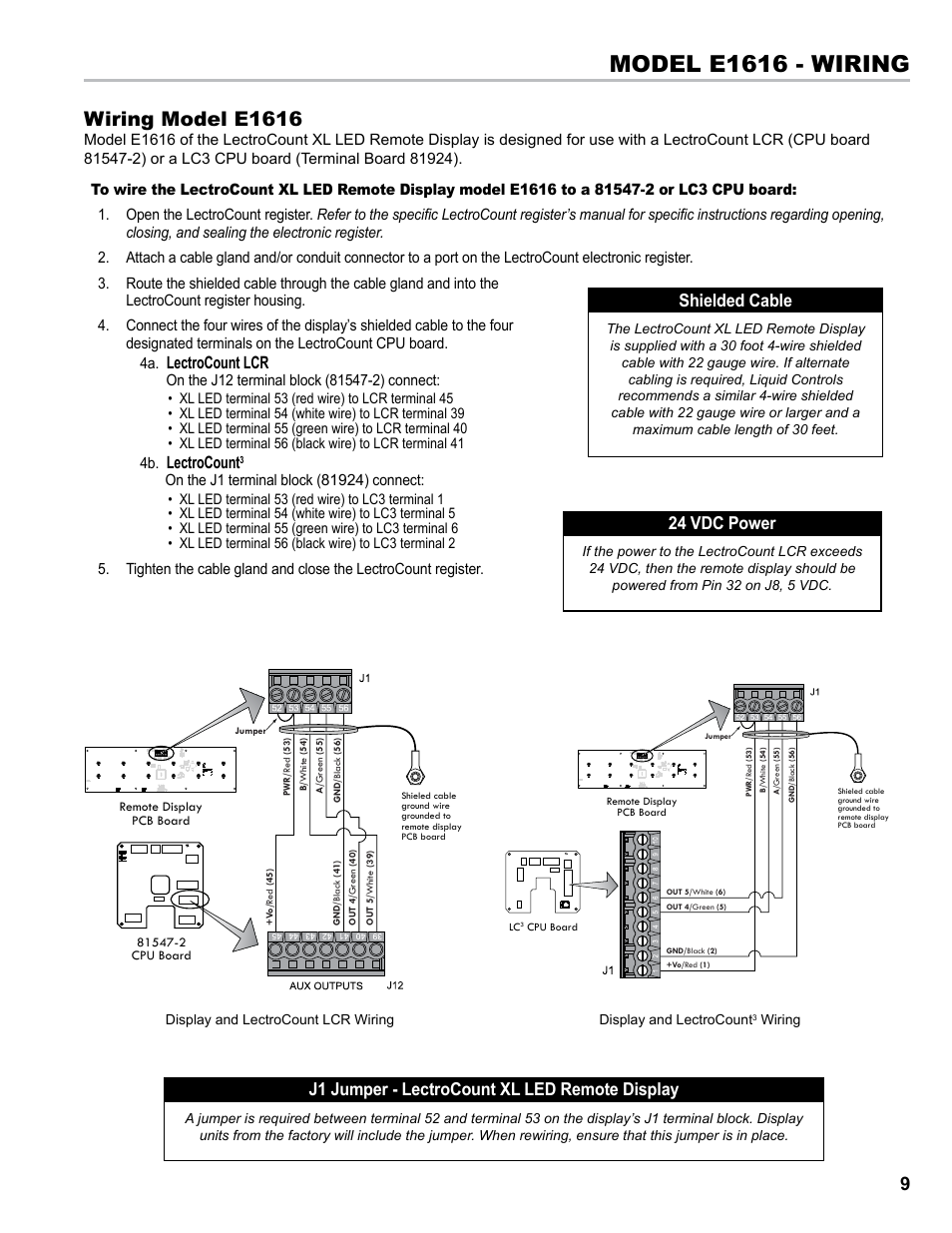

Model e1616 - wiring, Wiring model e1616, Lectrocount lcr – Liquid Controls XL LED Display E1615_E1616_E1617_E1618 User Manual
Page 9: Lectrocount, J1 jumper - lectrocount xl led remote display, Shielded cable, 24 vdc power
