delivery Code
The Delivery Code screen allows operators to review the
operating status of the currently connected device. There
are four Delivery Code screens. The Delivery Code
screens are accessible through the Machine Status (2/2)
screen.

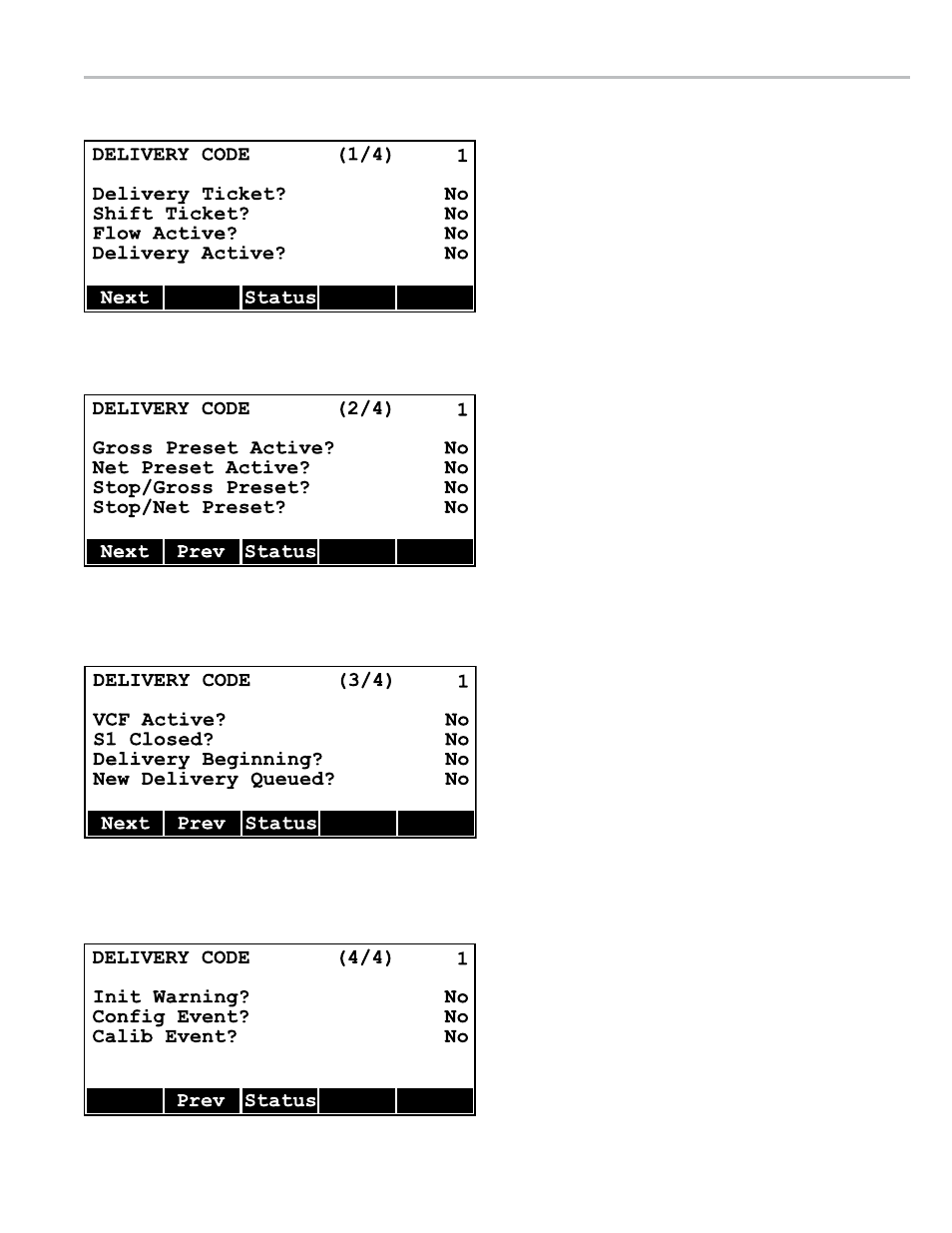

delivery Code (1/4)
Delivery Ticket? Display Only
Is a delivery ticket is pending? A new delivery cannot
be started until this field is cleared by successfully
printing the last delivery ticket.
Shift Ticket? Display Only
Has a shift ticket been requested and waiting to be
printed?
Flow Active? Display Only
Is the flow active during a delivery? This field
changes with the Delivery Active? field, but it
also turns off when a delivery is paused and turned
on when the delivery is resumed.
Delivery Active? Display Only
Is a delivery active?
delivery Code (2/4)
Gross Preset Active? Display Only
Is the current delivery a gross preset?
Net Preset Active? Display Only
Is the current delivery a net preset?
Stop/Gross Preset? Display Only
Has the current delivery been stopped by reaching a
gross preset value?
Stop/Net Preset? Display Only
Has the current delivery been stopped by reaching a
net preset value?
delivery Code (3/4)
VCF Active? D isplay Only
Is the volume of the current delivery compensated
according to temperature?
S1 Closed? Display Only
Is the S1 solenoid closed? During preset deliveries,
the S1 solenoid should be open at full product flow
and closed at dwell flow.
Delivery Beginning? Display Only
Is a delivery in the process of being started?
New Delivery Queued? D isplay Only
Has a new delivery has been queued in the LCR
600?
delivery Code (4/4)
Init Warning? Display Only y
Did a warning condition occur during the initialization
of the current delivery.
Config Event? Display Only
Did a configuration event occur.
Calib Event? Display Only
Did a calibration event occur.
operaTIon
Next (F1) opens Delivery Code screen 2/4
Status (F3) opens Machine Status screen 2/2
Next (F1) opens Delivery Code screen 3/4
Prev (F2) opens Delivery Code screen 1/4
Status (F3) opens Machine Status screen 2/2
Next (F1) opens Delivery Code screen 4/4
Prev (F2) opens Delivery Code screen 2/4
Status (F3) opens Machine Status screen 2/2
Prev (F2) opens Delivery Code screen 3/4
Status (F3) opens Machine Status screen 2/2
