12
eZConneCT buTTon reader
sTaTus lIGhT Key
 OFF
 ON
 FLASH
Off (press button to activate)
Button disconnected or not in database
Button connected ready to fuel
DMS/LCR/Printer Error or delivery initiation
sTaTus lIGhTs
Red Yellow









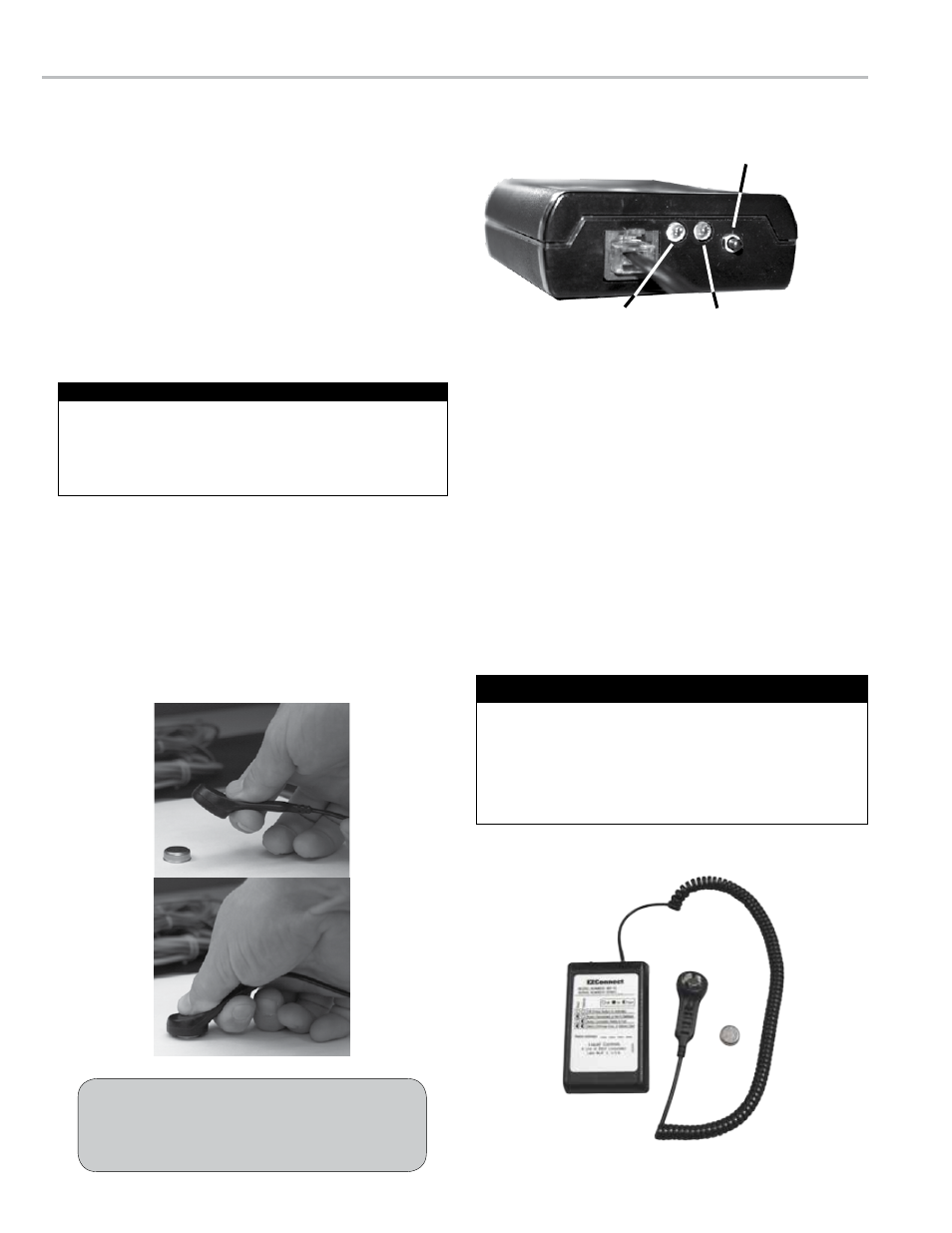

eZConnect button reader
The EZConnect button reader is a handheld device that
reads the ID number of uniquely-numbered stainless
steel buttons, called RFID buttons, and radios the
number of the button back to the DMS i1000. Before
delivery, the EZConnect button reader reads the button’s
ID number, and a RF transceiver in the button reader
radios the ID number to an antenna connected to the
DMS i1000. DMS i1000 FleetConnect pulls up the
vehicle data mapped to the RFID button number, records
the metrological data from the delivery, and saves
the vehicle data and delivery data together into the
FleetConnect database.
operaTIon
The thin black button next to the status lights activates
the EZConnect. Press it immediately before or after
attaching the EZConnect to a RFID button. When
attaching the button reader to a RFID button, ensure the
button reader socket completely covers the button and
is not tilted in any manner. When the yellow light blinks,
the RFID number has been received by the DMS i1000.
Other status indications are explained on the right.
InTroduCTIon
red lIGhT yelloW lIGhT
poWer/reseT buTTon
If the button reader is pulled from the button, a ten second
window exists in which the button reader must be reattached
to continue the delivery on the same transaction record. This
feature is active only in the By Vehicle setting of the New
LCR Delivery: field. See FleetConnect Office EM200-15.
Time Between Deliveries
• To prevent the ignition of a hazardous atmosphere,
batteries must only be replaced with Panasonic
6LR61XWA in a nonhazardous area.
• Only use the EZConnect button reader with the
provided cable and RFID button, as pictured.
! WarnInG
Conforms to standards ANSI/ISA 82.02.12 (IEC 61010-
1 MOD) (07/12/04) and ANSI/ISA-12.12.01-2007
Class I, Div 2 Group D T4
-20°C (-4°F) ≤ Tamb ≤ +50°C (122°F)
