32
Next (F1) opens Delivery Status screen 3/4
Prev (F2) opens Delivery Status screen 1/4
Status (F3) opens Machine Status screen 2/2
Next (F1) opens Delivery Status screen 4/4
Prev (F2) opens Delivery Status screen 2/4
Status (F3) opens Machine Status screen 2/2
Prev (F2) opens Delivery Status screen 3/4
Status (F3) opens Machine Status screen 2/2
delivery status

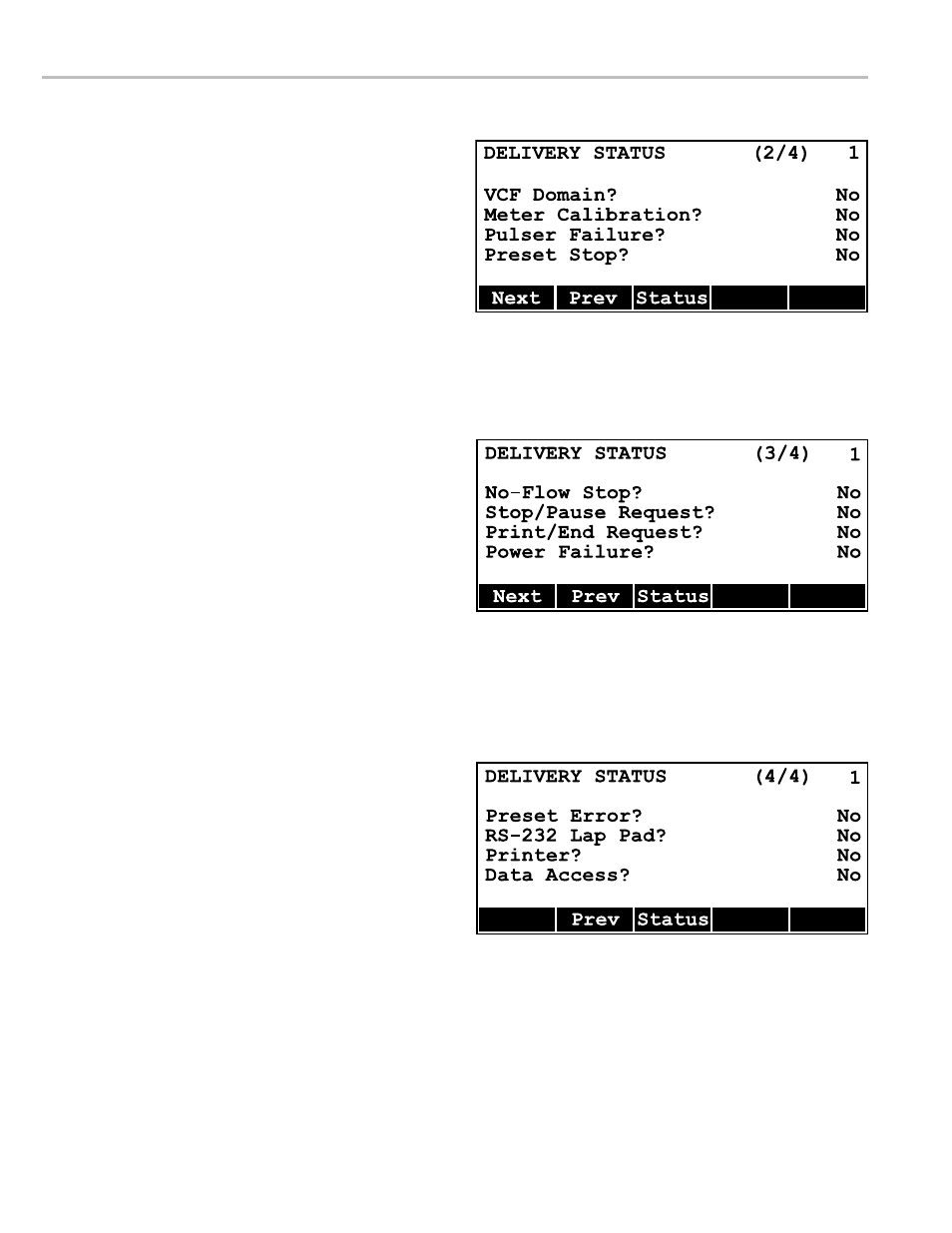

delivery status (2/4)
VCF Domain? Display Only
Did the temperature of the product go outside the
valid range for the compensation type of the product?
Meter Calibration? Display Only
Did an error occur while setting up the meter
calibration for the current delivery?
Pulser Failure? Display Only
Did the current delivery terminate due to too many
pulser faults?
Preset Stop? Display Only
Was the gross or net preset volume reached?
delivery status (3/4)
No-Flow Stop? Display Only
Was the current delivery stopped due to no-flow being
detected through the meter for a specified amount of
time?
Stop/Pause Request? Display Only
Was a stop activated by the selector switch during an
active delivery?
Print/End Request? Display Only
Was a print activated by the selector switch during an
active delivery?
Power Failure? Display Only
Did a delivery end due to a power fail condition for
more than 15 seconds?
delivery status (4/4)
Preset Error? D isplay Only
Did a delivery end due to an error condition while
attempting to set up a gross or net preset?
RS-232 Lap Pad? Display Only
Did the last delivery end due to the Lap Pad being
removed after the delivery started.
Printer? Display Only
Does the current delivery require a printed ticket but
the printer is off-line or busy?
Data Access? Display Only
Did a data access error occur during the delivery
which was critical to the delivery?
operaTIon
