overvIeW

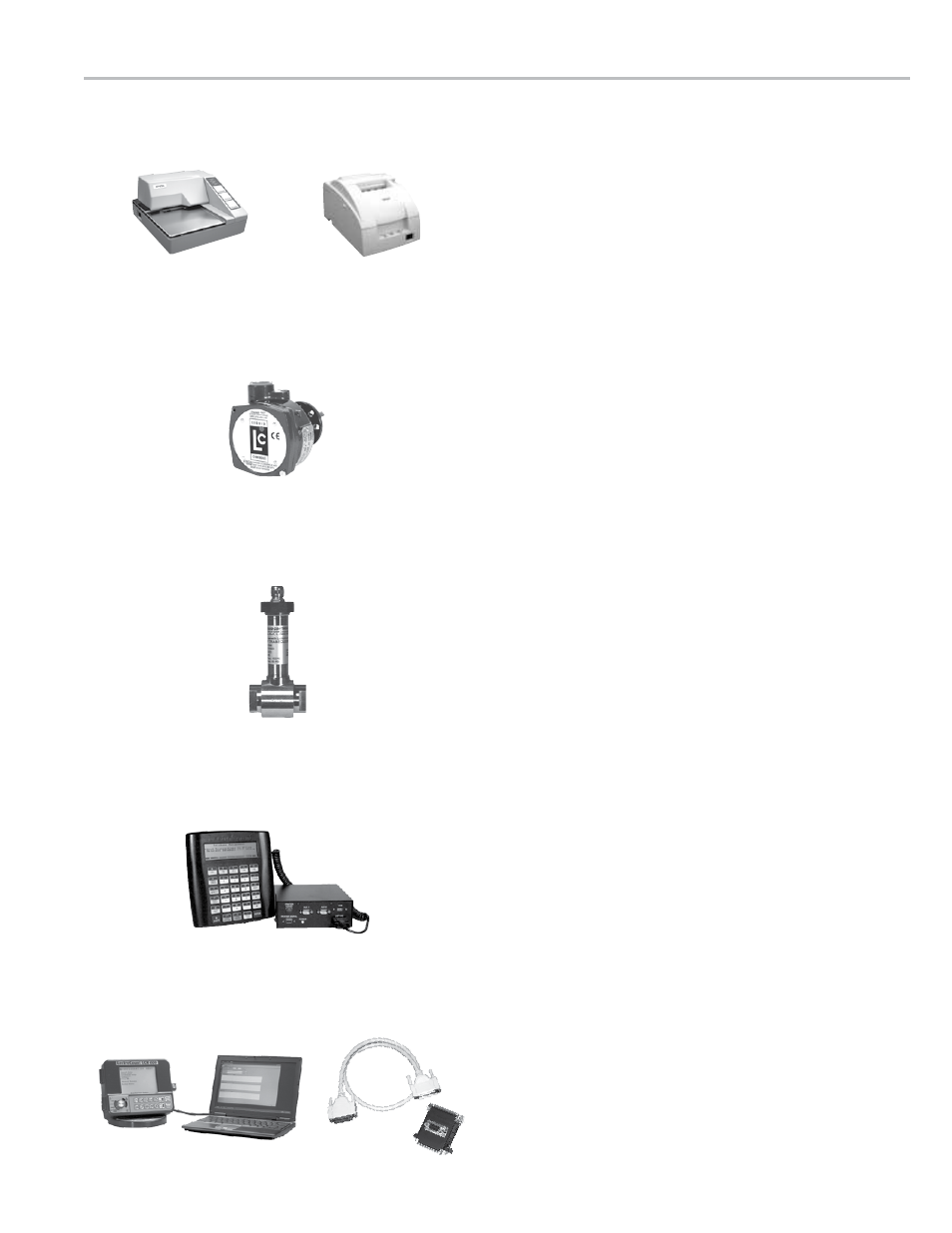

Epson Slip Printer Epson Roll Printer
POD Pulser
∆P Transducer
DMS i1000
EZCommand, Cable, and Adapter
Meter system Components
PrInTers
Printers print delivery tickets to provide a physical record
of custody transfers. The Epson slip printer is considered
the industry standard for many applications. Multi-
layered tickets are available to provide a physical record
for both customers and business records. The Epson roll
printer is ideal for recording multiple custody transfers
over an extended time frame.
Pulse ouTPuT devICe
The Liquid Controls Pulse Output Device (POD pulser)
converts the rotary motion of a positive displacement
flowmeter into electronic pulses. POD pulsers can be
used in place of an internal pulser. They are ideal for
applications that require explosion proof components in
which the LectroCount LCR 600 register is installed at a
distance from the meter. The POD pulser requires hard
wired data communication with the LectroCount LCR
600. See manual EM300-10.
DifferentiAl Pressure (∆P) trAnsDuCer
The differential pressure transducer, common in
aviation applications, monitors the differential pressure
(pressure drop) across a full flow fuel monitor/water
coalescer. The highest differential pressure reached
during the custody transfer will then be printed on the
ticket. Using interlocks, the LectroCount LCR 600 can
shut down a custody transfer if the differential pressure
meets a preprogrammed differential pressure shutdown
value. The ∆P Transducer requires hard wired data
communication with the LectroCount LCR 600. See
manual EM300-40.
daTa ManaGeMenT sysTeMs
The DMS i1000 is an in-cab computer with a heavy duty
lap pad interface. The DMS i1000 streamlines the flow of
data between the LCR 600 and back office accounting
software. The DMS i1000 must be hard wired to the
LectroCount LCR 600. See manuals EM200-10 and
EM200-11.
eZCoMMand Available soon
EZCommand is Windows ® -based interface that saves
and distributes LectroCount LCR 600 settings and
updates. EZCommand can be loaded onto a laptop.
Using a lap pad adapter (PN 81514) and a printer
extension cable (PN 71237), the lap top can be quickly
connected to upload settings and updates in the field.
A flash cable (PN 81885), a data cable with a terminal
block (J3) on one side and a 9-pin connector for your
PC, can also make the connection but requires opening
the LCR 600.
