24

Pulse ouTPuT devICe (Pod)

Pulse output device (Pod)

Installation

When ordered as part of a meter system with a LCR

600, Liquid Control’s Pulse Output Device (POD) is

installed onto the meter and wired to the LCR 600 at

the factory. The POD can also be ordered separately

and installed onto meter systems already in service. For

mechanical installation instructions, refer to the POD

manual. Instructions for wiring the POD to the LCR 600

are provided on this page.

Materials needed for wiring valves:

not supplied

with the Pod

22AWG stranded wire (4)

Weatherproof flexible conduit, ½" diameter and ½" NPT

conduit connectors or cable glands

PTFE tape or pipe sealant

To wire a Pod to the lCr 600:

1. Attach cable glands and/or conduit connectors to the

POD and the LCR 600 port(s).

2. Thread the wires through a piece of weatherproof conduit

cut-to-length from the POD port to a LCR 600 port.

3. Run the weatherproof conduit between the POD and the

LCR 600 housing, pull the wires through the ports, and

tighten the connectors.

4. Connect the four POD terminals to the four terminals on

the J18 terminal block of the LCR 600 CPU board.

• POD terminal 20 to LCR 600 terminal 31

• POD terminal 21 to LCR 600 terminal 34

• POD terminal 22 to LCR 600 terminal 33

• POD terminal 23 to LCR 600 terminal 37

single Channel Pulse Inputs

The LCR 600 is compatible with the many single channel

pulsers and amplifiers, for example, the SP714 pulse

amplifier from Liquid Controls Sponsler. For the LCR 600

to accept a single channel pulse, you will need version

v1.15 (or above) of the SR600 base software and a

jumper.

To a single channel pulse output to the lCr 600

1. Flash the CPU board with version v1.15 (or higher)

SR600 (LCR 600 registers) base software.

2. Slide the jumper onto the bottom two pins of J17. The

jumper fits over the pins and under the plastic casing.

3. Wire the single channel pulser to the J8 terminal of the

LCR 600 CPU board. Schematic on the right shows wiring to a

Sponsler SP714.

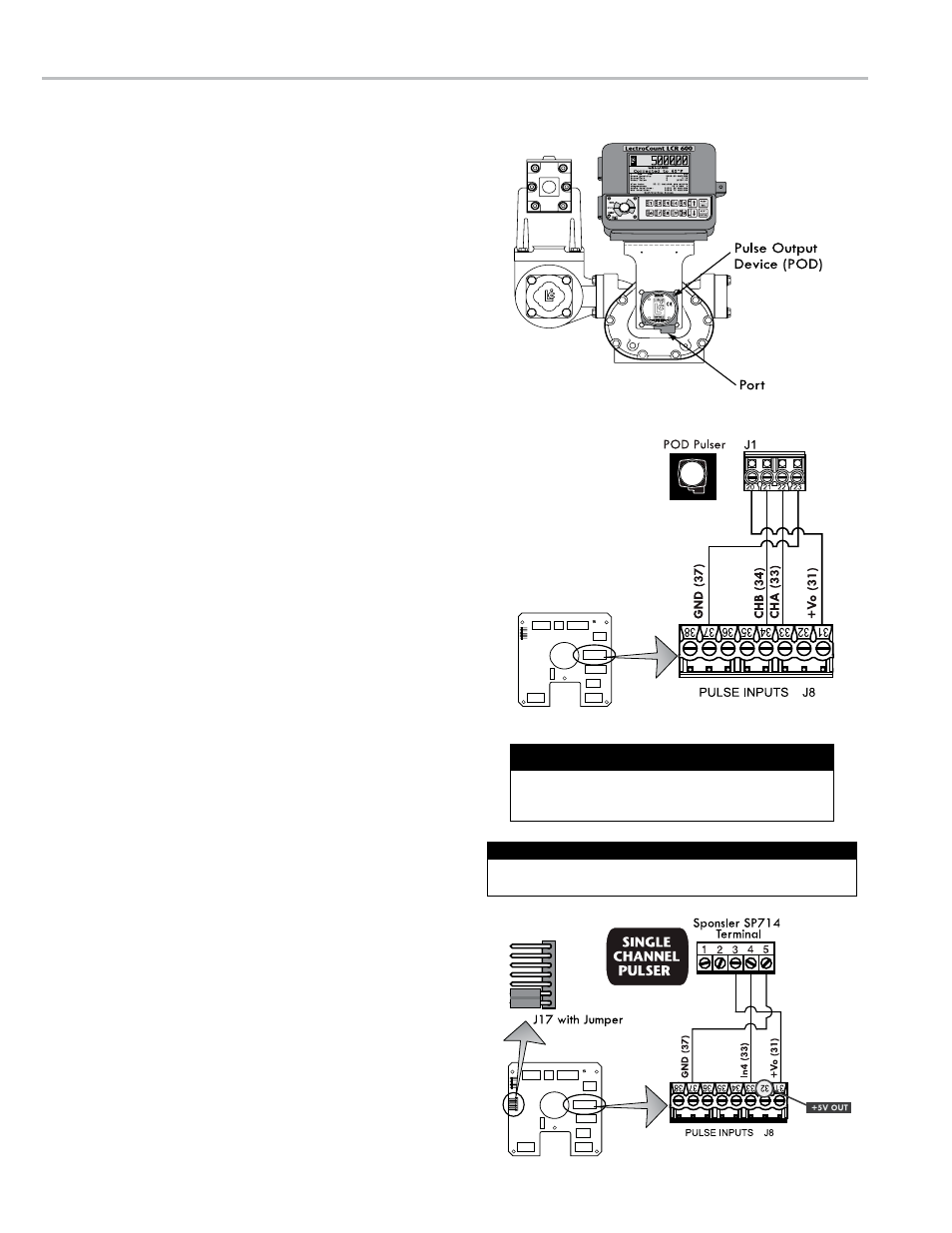

Meter System with Pulse Output Device

Disconnect the power before working on the CPU board.

Disconnect Power

This wiring schematic applies to pulse output

devices 1 through 4 only.

Pulse Output Devices 1, 2, 3, & 4 Only
