18

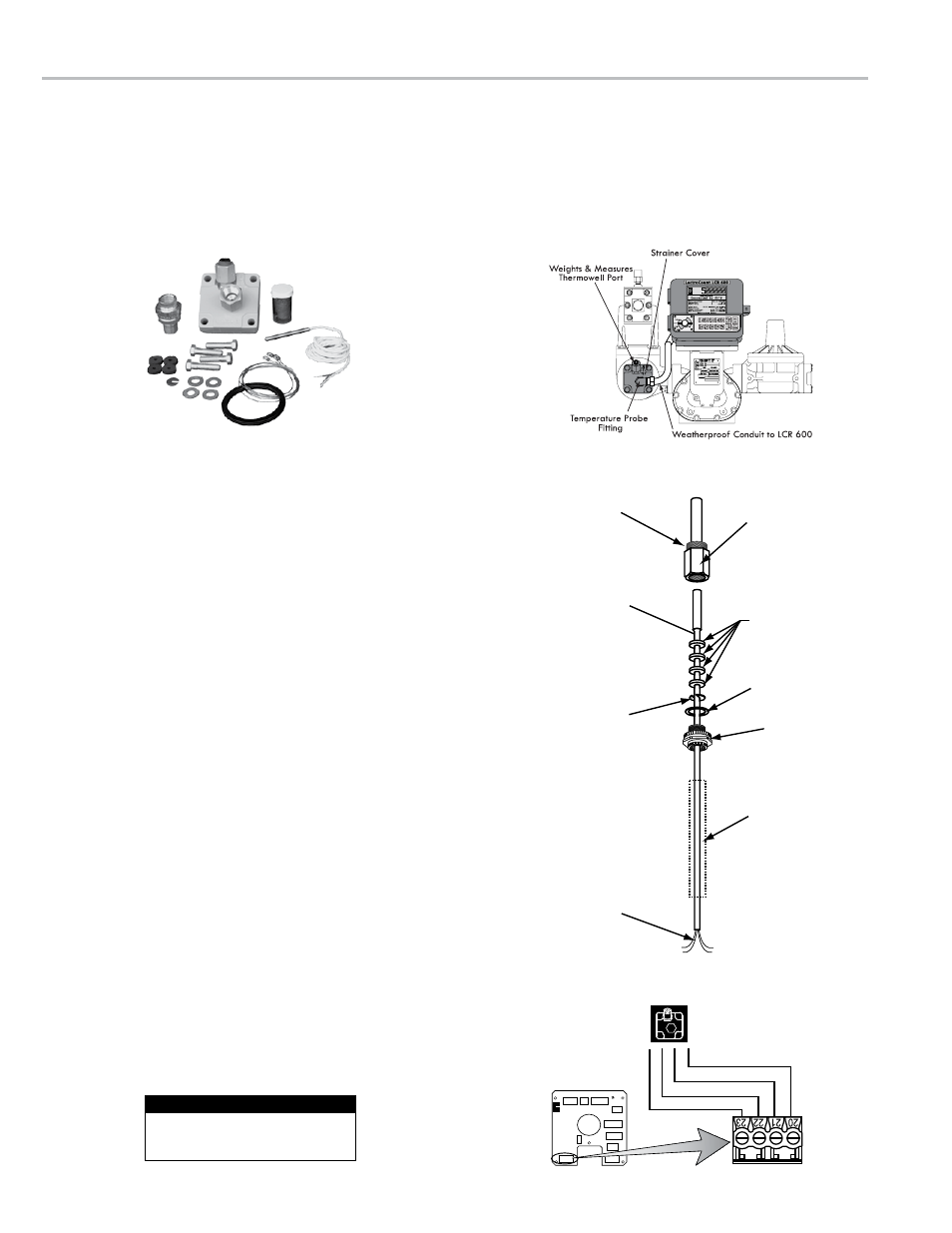

eTvC InsTallaTIon

Thermowell Kit

Screw into the strainer cover

RTD Temperature Probe

(71130)

Coat the probe length

with the copper grease

provided in kit.

Thermowell

Foam Washers

Seal Gasket

Slotted Disk

Union Fitting

Run probe through

conduit

Connect wires

to J14 connector

ETVC Kit

ETVC Conduit

TEMPERATURE PROBE J14

White (20)

White (21)

Red (22)

Red (23)

To install the eTvC kit:

1. Depressurize the meter completely. See Warning on pg.

14.

2. Remove the old strainer cover.
3. Clean the strainer basket and put it back in the housing.
4. Lightly coat the new cover gasket (included with the

ETVC kit) with lubricatant (do not use the included copper

grease).

5. Fit the new cover gasket into strainer cover groove.
6. Bolt the strainer cover in place. Make sure the Weights &

Measures thermowell port is at the top of the cover.

7. Assemble the thermowell kit (see Thermowell Kit figure

on the left).

8. Coat the entire probe length with the copper grease

provided. Insert and re-coat the probe 2 or 3 times to

provide a uniform coating inside the thermowell and to

ensure proper heat transfer from the liquid to the probe.

9. Connect the assembled thermowell to the fitting in the

middle of the strainer cover. The angled fitting at the top

of the cover is for Weights & Measures purposes. See

Step 6.

10. Connect the conduit to a ½" NPT port on the back of

the LCR 600 using the elbow fittings provided with the

conduit kit (PN 81024).

11. Wire the temperature probe to the LCR 600 internal

board on connector J14.

Disconnect the power before

working on the CPU board.

Disconnect Power

electronic Temperature volume Compensation (eTvC) Installation

When ordered as part of a meter system with a LCR 600, the ETVC kit is bolted onto the strainer and wired to the

LCR 600 at the factory. ETVC kits can also be ordered and retrofit onto meter systems already in service. Although

there are several installation kits—kits are specified according to meter size and application—they are all installed in

the same manner. A conduit kit (PN 81024), with a 30" length of weatherproof flexible conduit, is available from Liquid

Controls to provide protection for the RTD temperature probe wire between the strainer cover and the LCR 600.
