Page 23

23

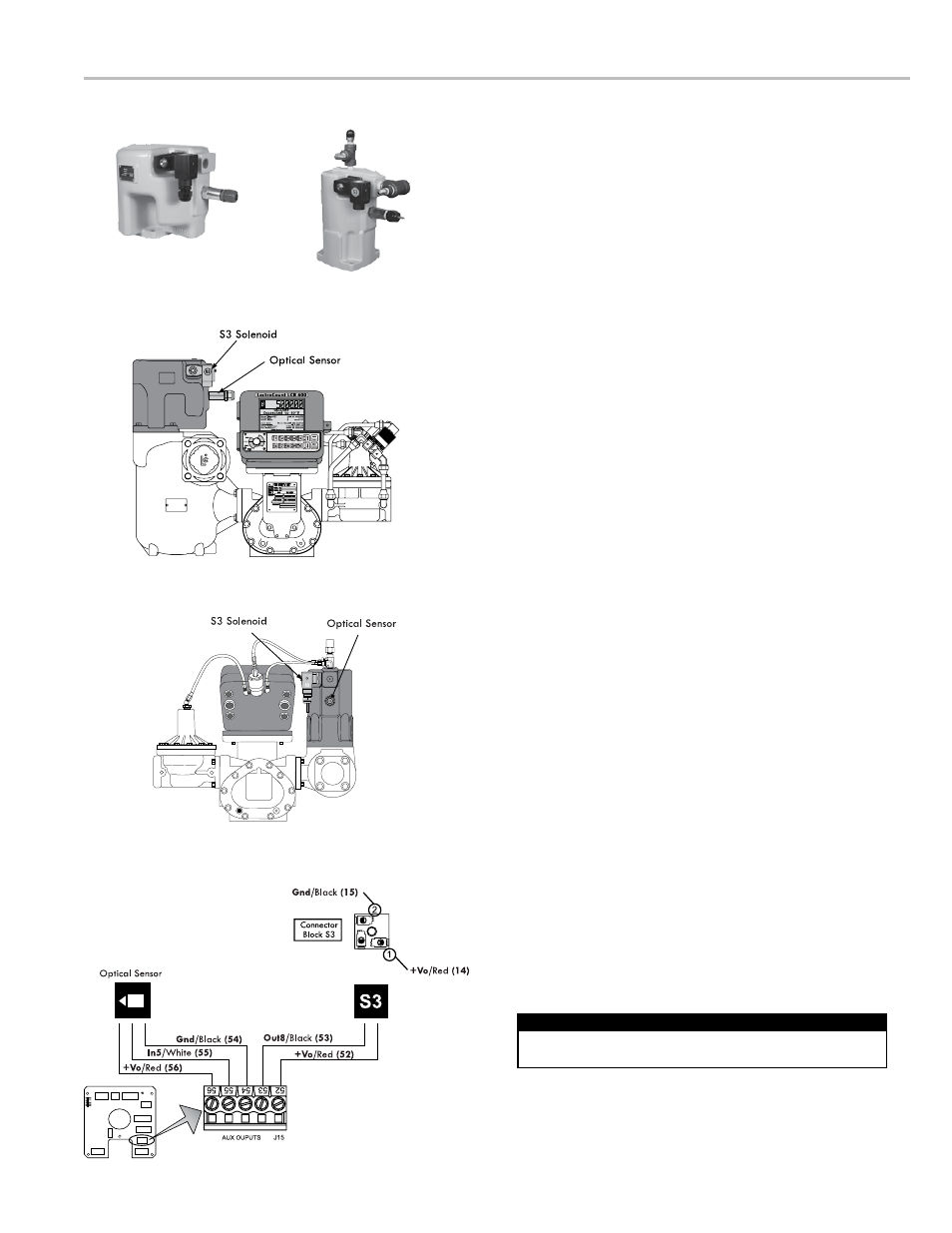

oPTICal aIr & vaPor elIMInaTors
Optical Air Eliminator:
Refined Fuels
Optical Vapor Eliminator:
LPG and NH
3
Meter System with Optical Vapor Eliminator
Meter System with Optical Air Eliminator
optical air and vapor eliminator
Installations
When ordered as part of a meter system with a LCR
600, Liquid Control’s optical air and vapor eliminators
are bolted onto the strainer and wired to the LCR 600
at the factory. Optical air and vapor eliminators can
also be ordered separately and installed onto meter
systems already in service. For mechanical installation
instructions, refer to the manual specific to the optical
air and vapor eliminator. Instructions for wiring optical air
and vapor eliminators to the LCR 600 are provided on
this page.
Materials needed for wiring valves:
not supplied
with the air or vapor eliminator
•
20AWG stranded wire (2 for the S3 solenoid valve)
•
Weatherproof flexible conduit, ½" diameter and ½" NPT
conduit connectors or cable glands
•
PTFE tape or pipe sealant
To wire optical air and vapor eliminators to the
lCr 600:
1. Attach cable glands and/or conduit connectors to the S3
solenoid valve, the optical sensor, and the LCR ports.
2. Thread the 20AWG wires through a piece of weatherproof
conduit cut-to-length from the S3 solenoid to a LCR 600
port.
3. Run the weatherproof conduit between the S3 solenoid-
operated valve and the LCR 600 housing. Pull the wires
through the ports, and tighten the connectors. Liquid
Controls recommends running the optical sensor wire
through weatherproof conduit as well.
4. Connect the three 20AWG wires to the S3 solenoid-
operated valve terminals and to terminals 52 and 53 on
the J15 terminal block of the LCR 600 CPU board.
5. Connect the optical sensor wires to terminals 54, 55, and
56 on the J15 terminal block of the LCR 600 CPU board.
Disconnect the power before working on the CPU board.
Disconnect Power
