20

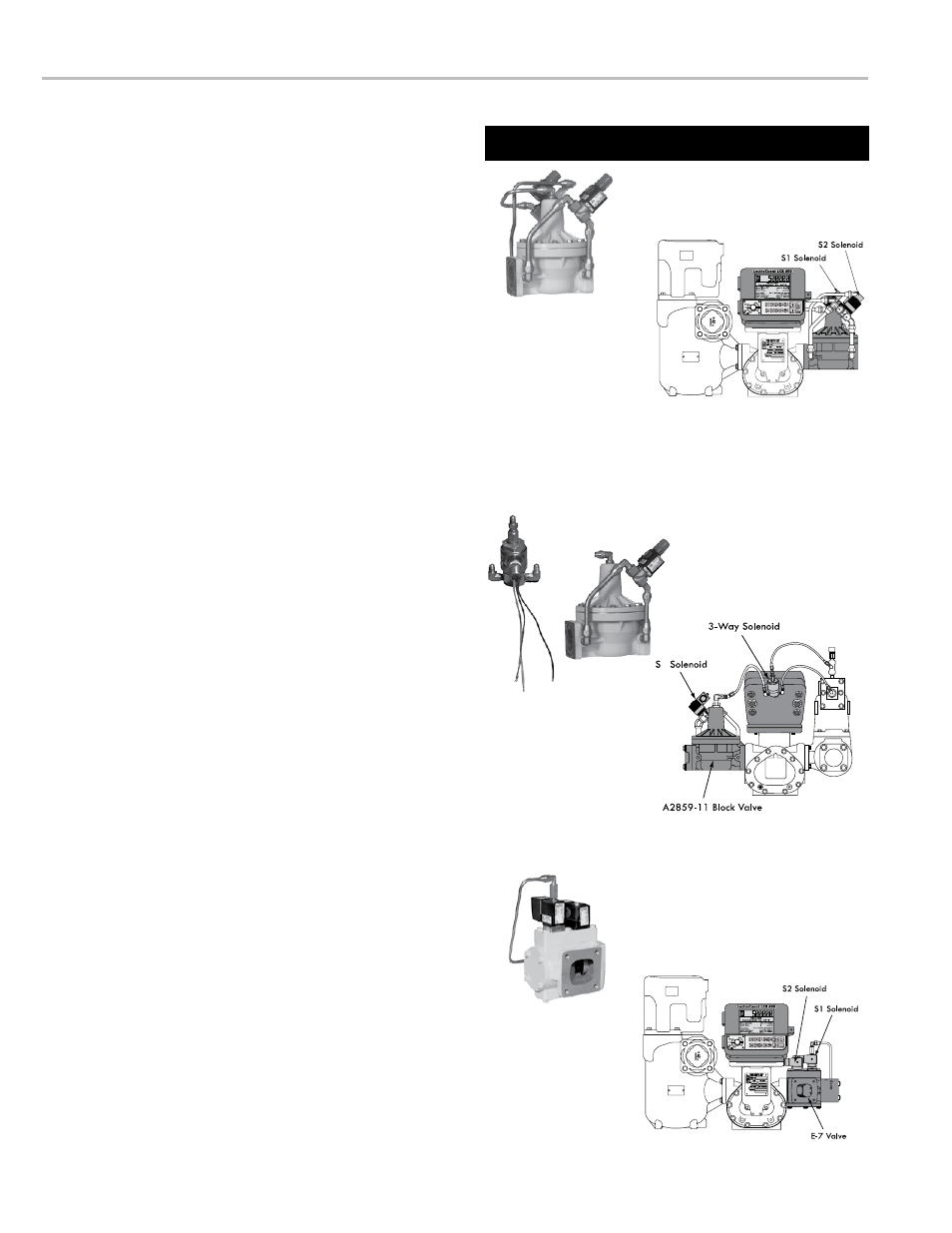

Two Stage 3-Way Valve

with (S2) Block Valve

2

Two Stage (S1 and S2) E-7 Valve

Two Stage (S1 and S2)

Block Valve

Two stage systems

valves

TWo sTaGe valves

The three most common Liquid Controls meter systems

with two stage valves are: a block valve with a S1 and

a S2 solenoid-operated valve fitted onto external piping

(A2848-11), a block valve with a S2 solenoid-operated

valve (A2859-11) and a 3-way solenoid on the LCR 600,

and an E-7 valve with a S1 and a S2 solenoid-operated

valve.

A2848-11 Valve

This two stage control valve has a S1 and a S2 solenoid-

operated valve. The S1 solenoid-operated valve is

located at the meeting point of three bypass pipes: one

pipe from the inlet side of the valve, one from the top

of the block valve, and one from the outlet side of the

valve. The S2 solenoid valve is located on a bypass pipe

that connects the inlet and outlet sides of the control

valve. It opens while the control valve is closed to supply

the dwell flow. This valve is typically used in refined fuels

applications.

A2859-11 Valve and 3-Way Solenoid

A two stage valve with a S2 solenoid-operated valve

and a 3-way solenoid valve attached to the back of the

LectroCount LCR 600. The 3-way solenoid-operated

valve is located at the meeting point of two pipes from

the vapor eliminator (one for eliminated vapor and

one leading to the spit tank) and one pipe to the top of

the block valve. The S2 solenoid valve is located on

a bypass pipe that connects the inlet and outlet sides

of the control valve. It opens while the control valve is

closed to supply the dwell flow. This configuration is

typically specified for products that hold vapor in the line

such as LPG and NH

3

.

E-7 Valves

A two stage valve with a S1 and a S2 solenoid-operated

valve. The E-7 valve is fitted with one external pipe to

divert product flow to the closing mechanism. To supply

a dwell flow, the E-7 bypasses the closed valve using

channels molded into its housing. This valve is typically

used in refined fuels applications.

single stage valves (cont.)

A2700 Series Electro-Pnuematic Valve

Electro-pnuematic valves use a S1 solenoid-operated

valve mounted to a pneumatic actuator to open and

close a V-7 valve. These valves are typically used in high

viscosity applications like lube oil.

E-7 Valve

A2859-11

Solenoid-Operated

Block Valve and 3 Way

Solenoid (PN 81527)

A2848-11

Solenoid-Operated

Block Valve
