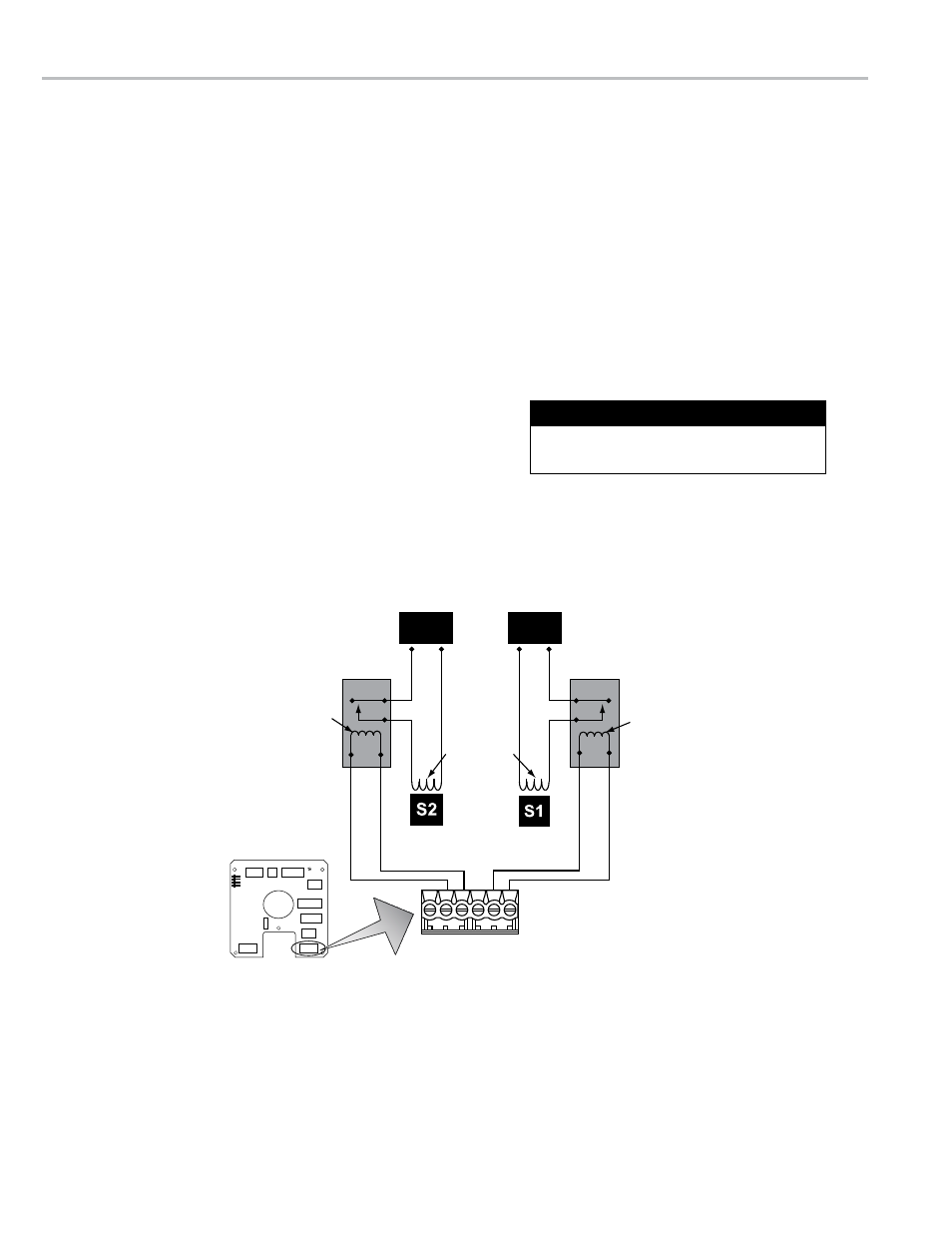

SPST N/O

Relay Switch

SPST N/O

Relay Switch

12VDC Coil

12VDC Coil

110VAC

Solenoid Coil

110VAC

Source

110VAC

Source

SOLENOIDS J13

valve InsTallaTIon

110vaC

solenoIds

In order for the LectroCount LCR 600 to control valves

with solenoids on 110VAC circuits, you must install a

relay switch on the positive leg of the solenoid’s circuit.

relay switch specifications:

Switch: SPST (single pole, single throw)
Switch Position: Normally open
Contact Rating: Greater than maximum current

of solenoid

Voltage: +12VDC

Materials needed for wiring valves with 110vaC

solenoids:

not supplied with the valve

• SPST relay switch (1 per solenoid)

20AWG stranded wire (2 per solenoid)

Weatherproof flexible conduit, ½" diameter and ½"

NPT conduit connectors or cable glands (if application

requires)

PTFE tape or pipe sealant

To wire 110vaC solenoids to the lCr 600:

1. Turn off all 100 VAC circuits before beginning the

installation.

2. Install the specified relay switch(es) onto one leg of the

110 solenoid power supply circuit.

3. Connect the relay switch on the S1 power supply circuit

to terminals 15 and 16 on block J13.

4. Connect the relay switch on the S2 power supply circuit

to terminals 17 and 18 on block J13.

Turn off all 110VAC circuits before beginning

the installation.

Disconnect Power (110VAC)
