SeaI/O User Manual
SeaI/O Configurations & Specifications

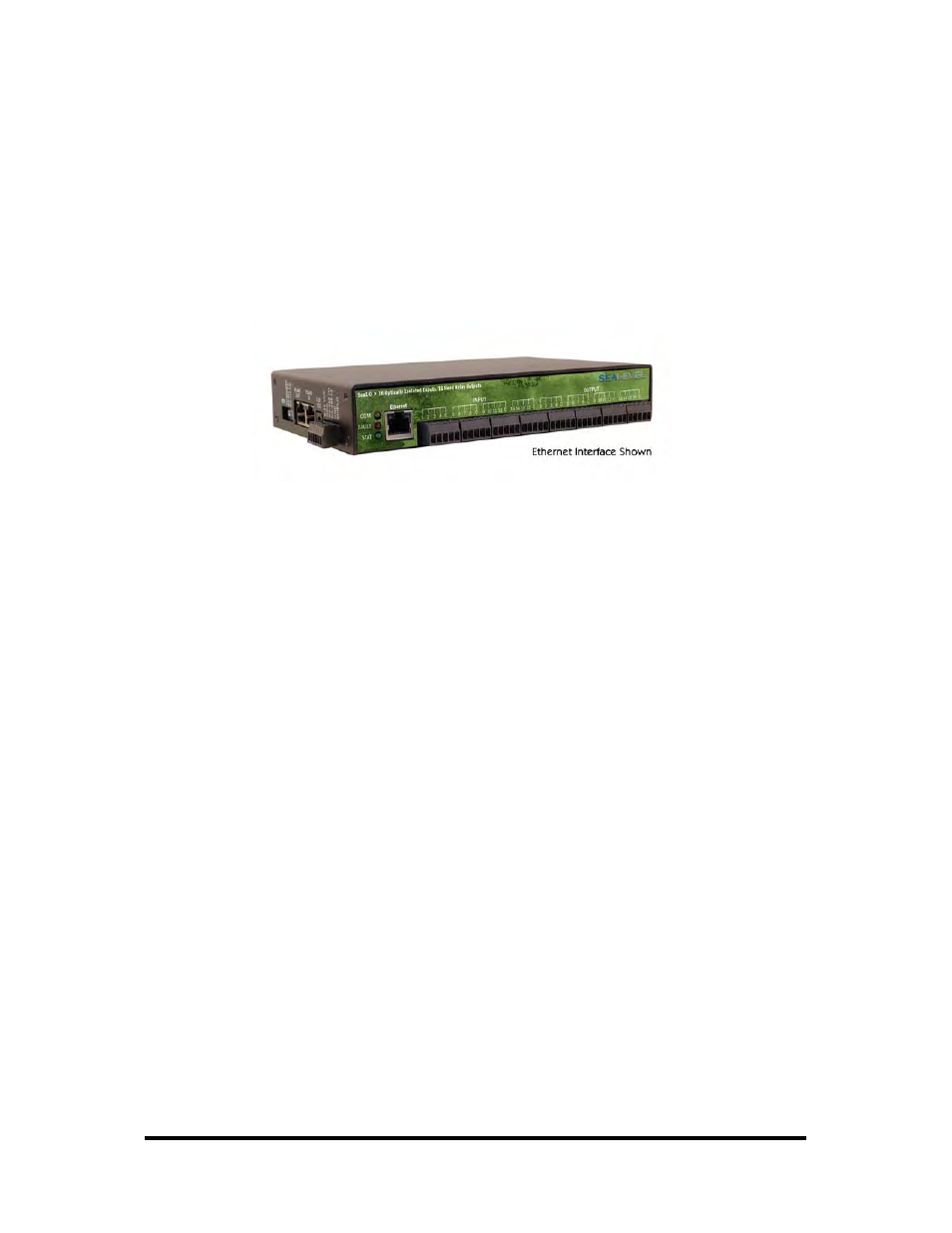

410 Series – 16 Optically Isolated Inputs/16 Reed Relay Outputs
SeaI/O-410 modules provide 16 optically isolated inputs and 16 Reed relay outputs.
Inputs can range from 5-24VDC, while the Reed relays provide long life switch
closures that are well suited for low current applications. Inputs and outputs are
grouped into four-bit segments. Each group shares a common for easy wiring via
removable 3.5mm terminal blocks.
Inputs
Type:
16 non-polarized optically isolated inputs
Voltage Range:
5-24VDC
Isolation: 300V
Input Resistance:
6.2K Ohms in series
Response Time:
4 microseconds
Outputs
Type:
16 SPST Form A Reed relays
Power: 10VA
max.
Contact Voltage:
60VDC max.
Contact Current:
500mA max.
Operate Time:
0.5ms max.
Bounce Time:
0.5ms max.
Release Time:
0.2ms max.
