Impulse 463E User Manual
Page 56
© Sealevel Systems, Inc.
- 53 -
SeaI/O User Manual
Diagnostics

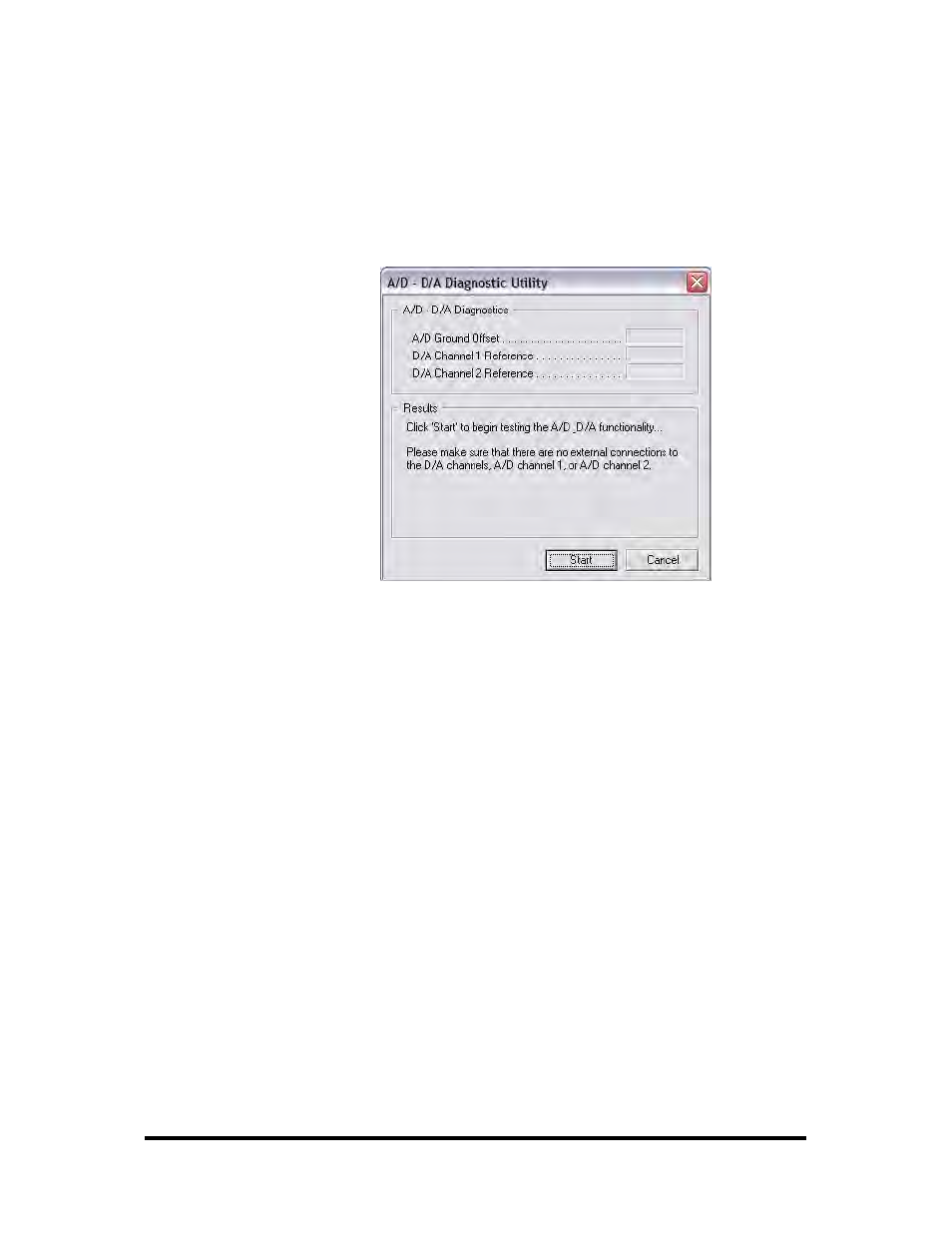

To check basic functionality of both the A/D and D/A converters, press the
“Diagnostics Utility” button on the “D/A Outputs” tab (shown on the previous page)
and then press the “Start” button, as shown below. Any errors will be shown in the
“Results” pane. If errors occur, please contact technical support for further help.
