Impulse 463E User Manual
Page 52
© Sealevel Systems, Inc.
- 49 -
SeaI/O User Manual
Digital I/O Tab

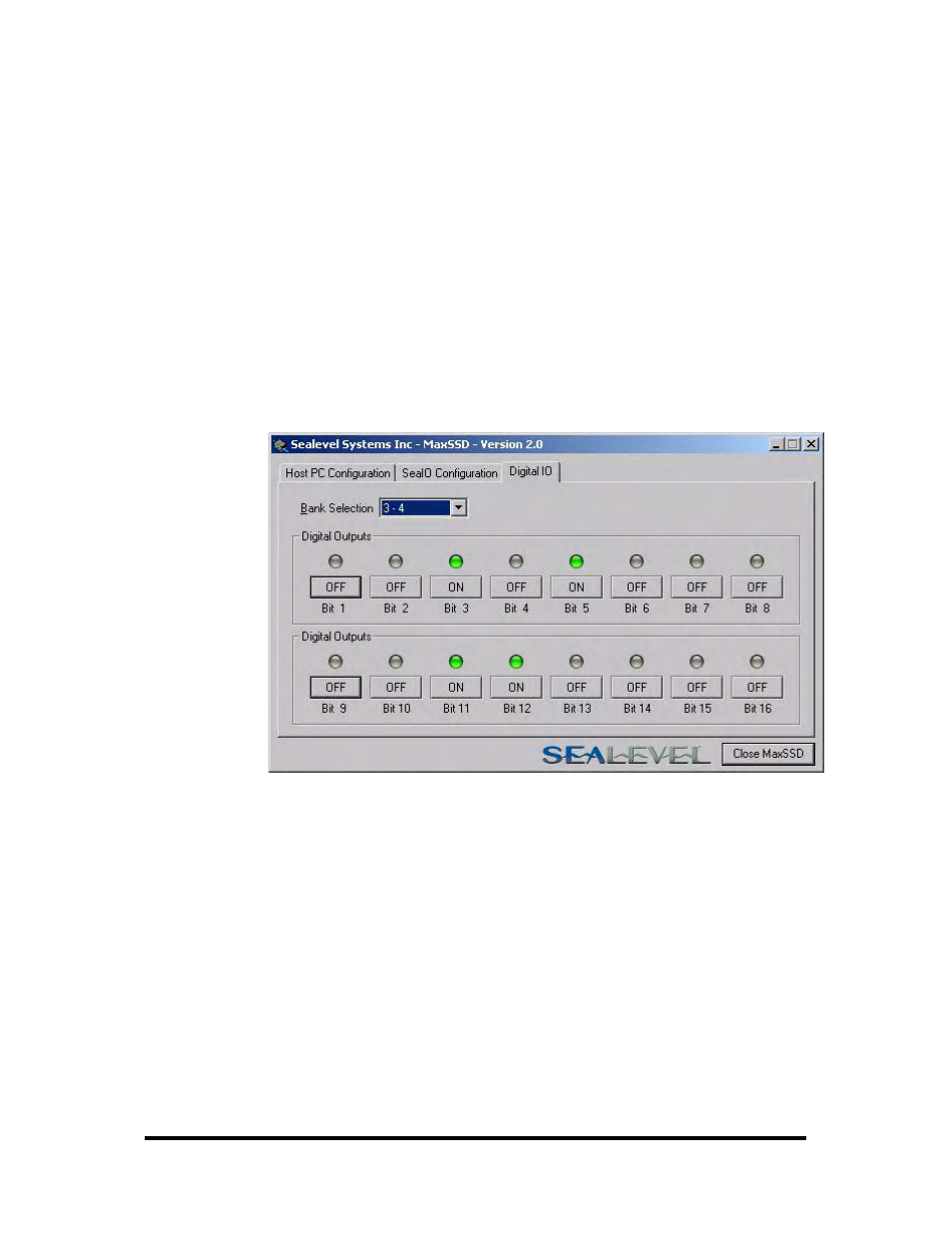

The “Digital IO” tab of MaxSSD is displayed when using SeaI/O devices featuring
discrete inputs and outputs. It displays the device’s current input and/or output status
in an intuitive and usable manner.
The “Digital IO” tab displays inputs and outputs in groupings (or banks) of eight.
Therefore, a SeaI/O device with 16 inputs and 8 outputs would show two banks of
inputs and one bank of outputs.
When displaying banks of inputs, the status LEDs update on each of the banks
automatically. This allows the user to dynamically monitor external signals.
With a bank of outputs, the output coils can be set using the buttons below each
output LED. As each coil is set, the SeaI/O module is read. The corresponding status
LED in the “Digital IO” window indicates the state of the coil.
