1. Press and enter your four-digit MASTER CODE (beep).

2. Press (beep).

PASS - The LCD display will indicate: RS232 HARDWARE PASS. One long tone will be heard: (Beeeeeep).

FAIL - The LCD display will indicate RS232 HARDWARE FAIL. Two short tones and a long tone will be heard:

(Beep - Beep - Beeeeeep).

3. Remove the jumper wires from the terminal after performing this test.

??

??

??

??

77

PQRS

PQRS

11

SP

SP

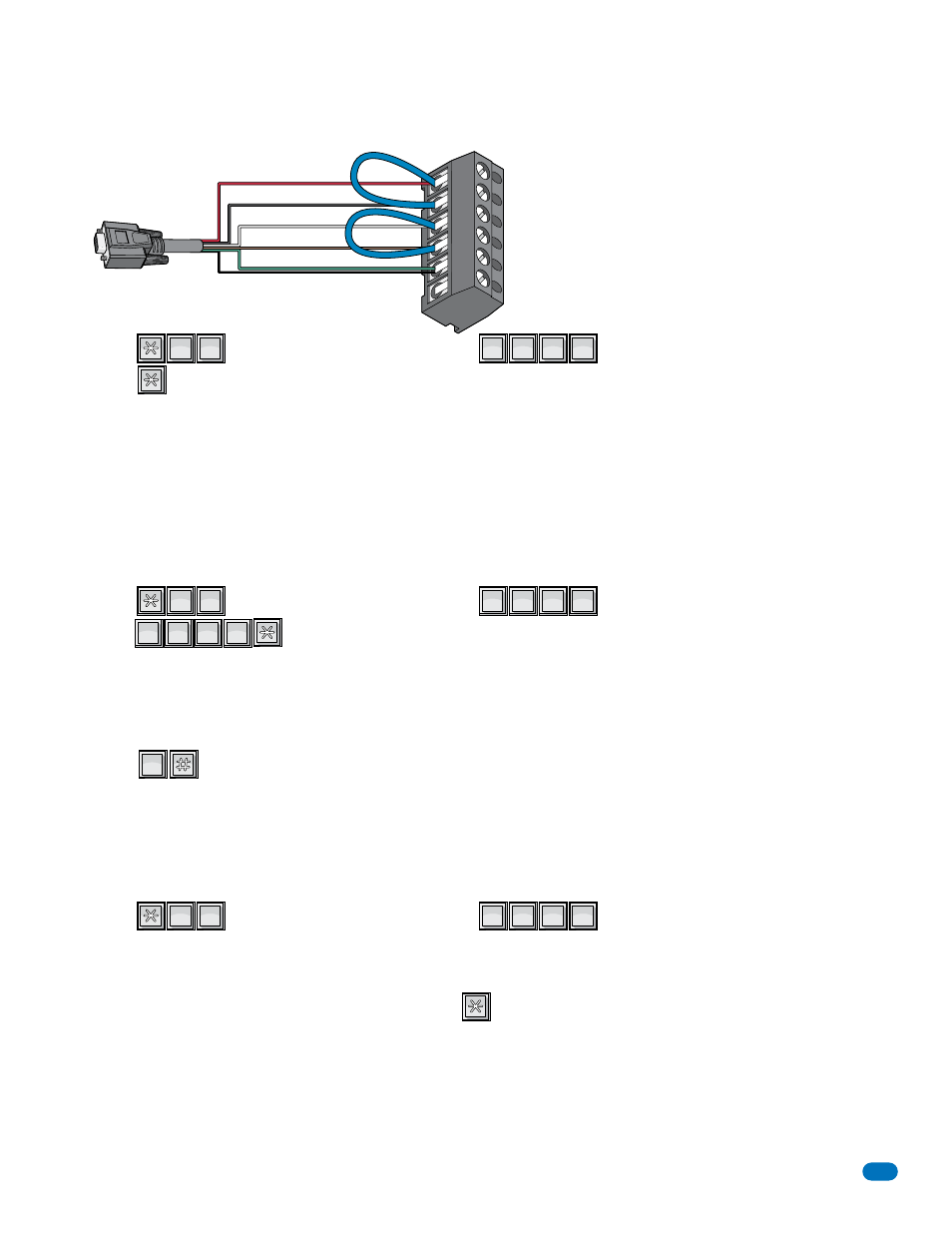

6.1.1 RS-232 Test

This test procedure will check the RS-232 hardware to determine a PASS or FAIL mode. You will need two short pieces of wire
to perform this test (jumpers). Connect the jumper wires as shown to the RS-232 terminal.

1
2
3
4
5
6

RS-232 Terminal

Red

Black

White

Brown

Green

Shield

The 6-pin terminal
can be removed
for easy wiring.

RS-232

DB-9 Pin

Plug

This programming sequence will allow you to view the weigand data on the LCD display as it is received by the control board.
This will allow you to verify that the weigand device is functioning properly.

1. Press and enter your four-digit MASTER CODE (beep).

2. Enter .

3. Activate one of the weigand input devices by placing a card on a card reader, pressing a transmitter button, or entering a
digital code on a weigand keypad.

4. If the weigand data is shown on the LCD display, this verifies that the weigand device is operating properly and sending the
information to the entry system. If NO data appears on the display, the weigand devices are NOT functioning.

5. Press to cancel the weigand test mode. (beeeeeep).

??

??

??

??

22

ABC

ABC

88

TUV

TUV

00

OPER

OPER

6.1.2 Weigand Test - 1835 and 1837 Systems Only

99

WXYZ

WXYZ

99

WXYZ

WXYZ

99

WXYZ

WXYZ

99

WXYZ

WXYZ

This programming sequence is designed for troubleshooting the elevator control board(s) that may be connected to the
telephone entry system. This sequence will take approximately four (4) minutes to complete and will check the operation of the
CALL relay, all the odd numbered relays, then all the even numbered relays on the elevator control board(s). This test confirms
communication between the telephone entry system circuit board and the elevator control board(s).

6.1.3 Elevator Board(s) Hardware Test - 1835 and 1837 Systems Only

1. Press and enter your four-digit MASTER CODE (beep).

2. The LCD display will show: WHICH ELEVATOR?

Note:

0

*

is not available for the 1834.

3. Enter the elevator shaft number (1, 2, 3 or 4) _, then press (beep).

The LCD display will show: ELEVATOR TEST 1.
Once the test starts, the CALL relay (LED ON) will activate, then ALL odd numbered relays will activate. After that, ALL even
numbered

relays will activate on the 1st elevator control board. After this sequence, if more than one elevator control board

is connected, ALL odd numbered relays, and then ALL even numbered relays will activate on the 2nd elevator control board.
This sequence will repeat itself up to ten (10) times depending on the number of elevator control boards connected.

4. Once the test is complete (approximately 4 minutes), this programming sequence will automatically end itself.

??

??

??

??

6

6

MNO

MNO

77

PQRS

PQRS
