The model 2351 Expansion Board allows you to expand the number of remote entry points
that the 1833, 1835, 1837 telephone entry systems can control. One expansion board is
required for EACH remote entry point.

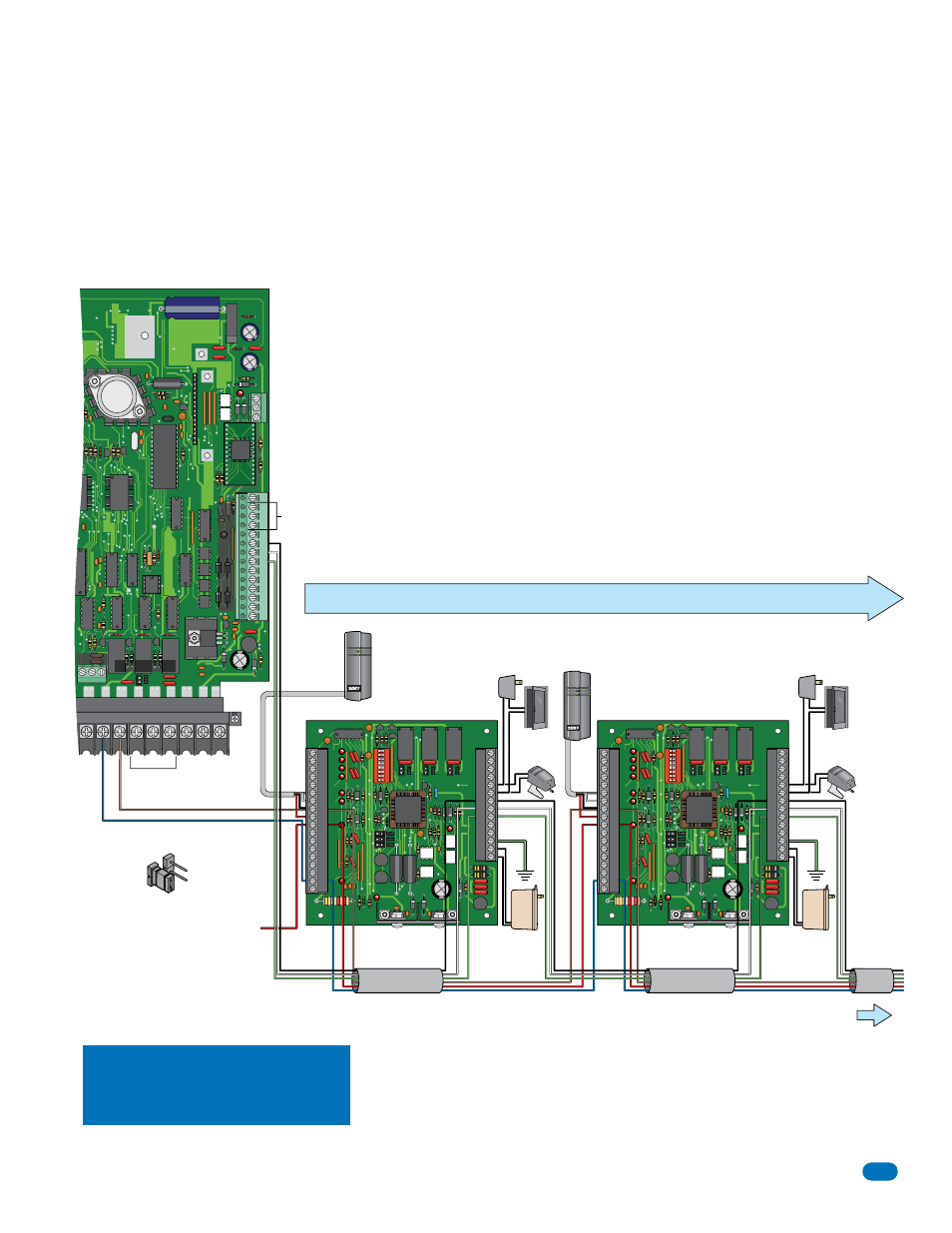

2.3.2 Wiring Up to 8 Expansion Boards - 1833, 1835 and 1837 Systems

Main Terminal

Expansion Board Power: You may power up to four (4) expansion
boards from a single 16 VAC, 20 VA power transformer.
18 AWG wire up to 100 Ft.
16 AWG wire up to 200 Ft.
It is advisable to keep power wire runs as short as possible.

Connect card

reader using 4

conductor,

stranded with

overall shield. 18,

20, 22 or 24

gauge.

Relay 2 Input

“2RY” Contact is set NO with Relay 2 Jumper on board.

Red - NO circuit board connection.

Aux Terminal Connection

Black - Aux #9 connection.
White - Aux #8 connection.
Green - Aux #7 connection.

Note: DO NOT connect expansion boards
to Aux #11,Aux #12 or Aux #13.

Expansion Board 1

Expansion Board 2

To Expansion

Boards 3 thru 8

Relay 2 Jumper

Telephone

Entry System

Circuit Board

1833, 1835 & 1837 Systems with
Up to 8 expansion boards connected:

Control up to 2 entry points (Relay 0, Relay 1) with the system circuit board.
Control up to 8 more remote entry points with expansion boards.

Note: Separate elevator control board required for elevator control.

NC

NO

Relay 0

Relay 1

Connect expansion boards using 6 conductor, stranded with overall

shield. 18, 20, 22 or 24 gauge. Shield runs continuous. Float the

shield, DO NOT connect shield to 2351-010 board common.
