1.1.2 Install Enclosure
1. Mount the enclosure using the mounting holes provided
in the corners (see sections 1.2, 1.3 and 1.4 for your
chosen model dimensions including kit installations). Be
sure that mounting screws (Not supplied) do not protrude
into the enclosure where they could cause a short on the
back of the circuit board. Make any necessary conduit
connections through the back or bottom of the enclosure
using the existing conduit knock-outs. DO NOT make any
new conduit holes in the enclosure.
2. Route all wiring through conduit or architectural post
(not supplied) into enclosure.
3. Clean out the enclosure. Make sure that all dirt, metal
and/or wood debris is removed.
4. Re-install components back into the enclosure (Reverse
section 1.1.1 steps on previous page). Use the wiring
schematics in the back of this manual to help re-install the
components if necessary. DO NOT apply any power at this
time.

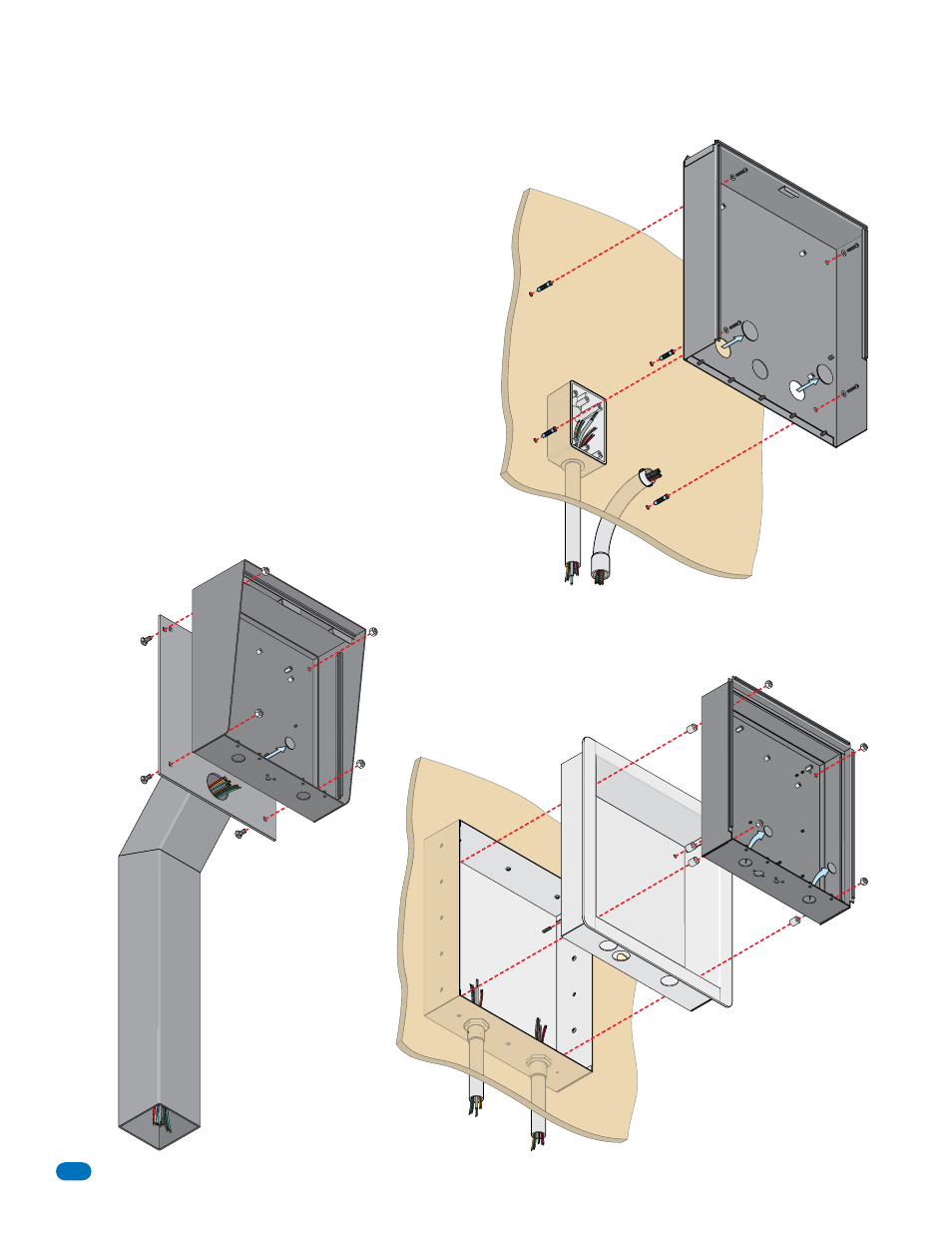

There are 3 different styles of the 1830 telephone entry system -
surface, flush and wall mount. The illustrations below show
typical installations but specific installations can vary from this.
Use hardware supplied with
architectural post to secure
enclosure to post.
Su
rface Mount
Enclosure
Mounting H
ole
Knock-o
ut
Use appropriate
hardware to secure
enclosure to the wall
(not supplied).
Mount
ON
a Surface
(See sections 1.2, 1.3.2 and 1.4).
Mount
IN
a Surface
(See sections 1.2.1 and 1.3.1).
Mount to an
Architectural
Post
Wall Mou
nt
Enclosure
Mounting Hole
Knock-
ou
ts
Mou
nting
Screw
s (Not
supplied)
Examples of conduit runs that may be used, depending on how you choose to run the wiring.
Some installations will allow the conduit to be run outside the wall and connect to the bottom
of the enclosure but this is generally NOT recommended.
Run all wires
inside post.
Conduit run
to junction box Conduit
sweep run
Wall
Flush Mount
Enclosure
Plastic Spacer
Locknut
Knock-out
s
Rough-In
Box
Trim
Ring
Mounting
Screws (Not s
upplied)
Wall
