1835-065-E-7-13

10

Bottom View

Side View

Front View

Recess Box

Threaded Stud

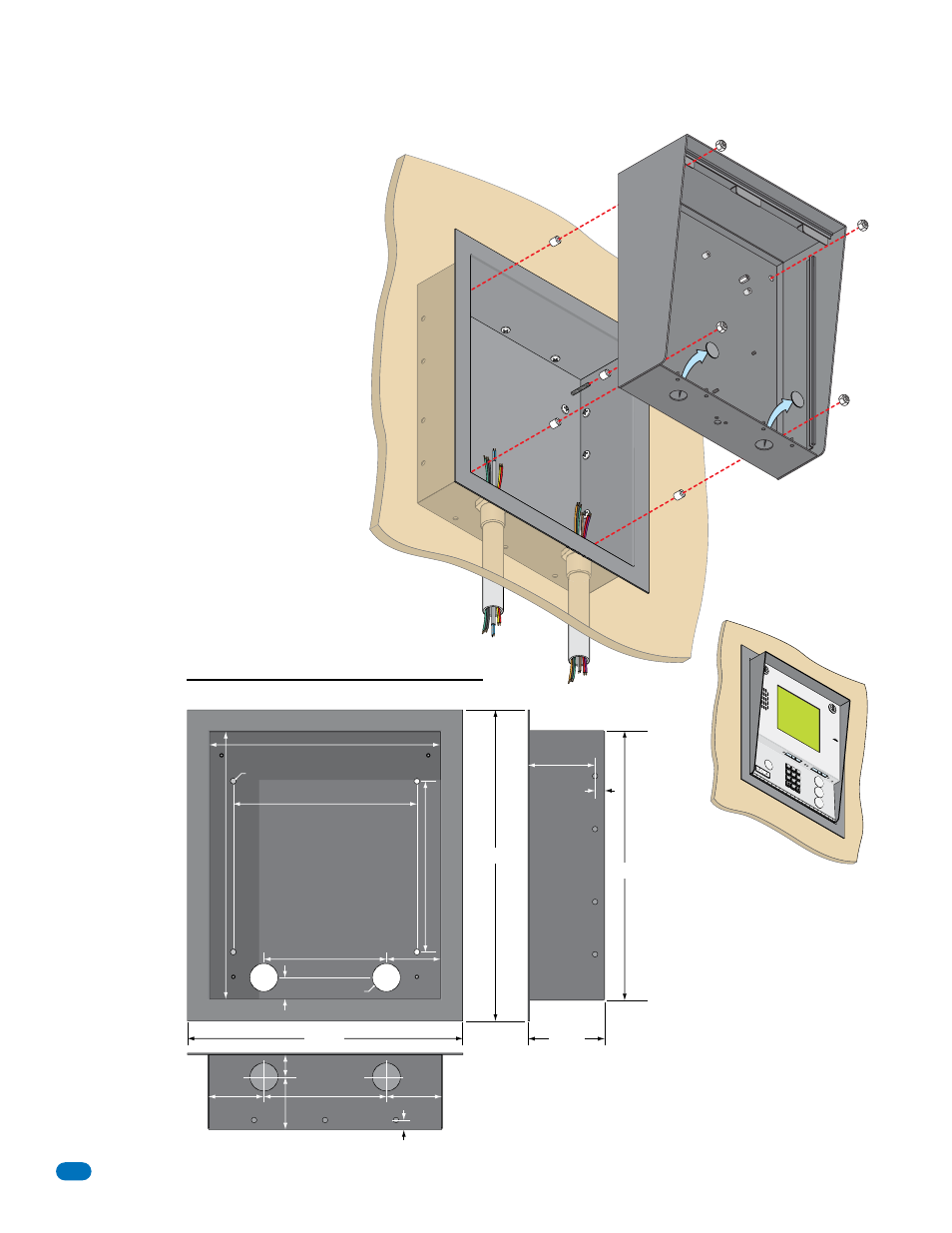

1.2.1 Surface Mount Recess Kit Dimensions and Installation

Surface mount units can be recessed into a
wall or pilaster by using the optional surface
mount recess kit (P/N 1803-150). This allows
for a recessed telephone entry system to
have a lighted keypad (except for the 1833)
which the flush mount units DO NOT have.
The recess box gets installed in the wall. Use
appropriate hardware (not included) to
secure the box in the wall. Run all necessary
conduit (not included) to the recess box.
Slide the enclosure in the recess box and
secure it with the hardware included in the
kit. Be sure the unit is mounted securely and
is not subject to vibration from closing doors
or gates.

9”

11.25”

6”

6”

2.625”

2.625”

.4”

.4”

3.2”

1”

8

.5”

13.25”

2.625”

1.125”

2.5”

25” Dia. Mounting Hole

1.375” Dia.

15.25”

13.25”

13.375”

3.625”

Mounting

Holes

.25” Dia.

Knock-outs

Sur

face Mount

Enclosure

Plastic Spacer

Locknut

Recess

Box

Mounting Screws (Not supplied)

Mount In a Surface

Wall

A
Z

CALL

77

88

99

44

55

66

11

22

33

00

OPER

OPER

WXYZ

WXYZ

TUV

TUV

PQRS

PQRS

MNO

MNO

JKL

JKL

GHI

GHI

DEF

DEF

ABC

ABC

SP

SP
