Power Input for Aux Terminal

14-Pin aux terminal on 1833, 1835 and 1837 circuit boards.
Powers RS-232, elevator control and Weigand inputs.

Power Input for 1834 Aux Terminal

2-Pin terminal only on the 1834 circuit board.
Powers RS-232.

16.5 VAC

Red

Black (Neg)
Red (Pos)

Black (Neg)

Red (Pos)

16.5 VAC
16.5 VAC

Black
White
Green

Red

20 VA

20 VA

Power Input for Phone System

20 VA power for the 1833, 1834 or 1835 phone system ONLY.
DO NOT use a 40 VA transformer for the 1833, 1834 or 1835.

20 VA

Power Input for 1837 Phone System

40 VA power for the 1837 phone system ONLY.
DO NOT use a 20 VA transformer for the 1837.

40 VA

1833, 1835 and 1837 ONLY

Relay 0

Relay 2 Jumper

Auxiliar

y T

e

rminal

1

8

33, 1

8

35 and 1

8

37 ONL

Y

Auxiliary Terminal 1834 ONLY

Elevator Control Terminal

1833, 1835 and 1837 ONLY

NO NC

C

#7 thru #10

These terminals will

activate Relay 2 for its programmed
strike time.

#11 thru #14

These terminals will activate
Relay 1 for its programmed
strike time.

BOTH transformers
MUST be installed
for the system to
operate.

Relays activate a door lock
or a gate operator for their
programmed strike time at
a controlled access point.

Power wire
polarity does
not matter.

Power wire
polarity does
not matter.

Wiring MUST be twisted and
completely isolated from ground.
See section 2.1.4.

Power Transformers:
Use ONLY 16.5 VAC UL
Listed Transformer.
Run 18 AWG wire up to
100 Ft. Run 16 AWG wire
up to 200 Ft.
See section 2.1.1, 2.1.3
and 2.1.4 for further
information.

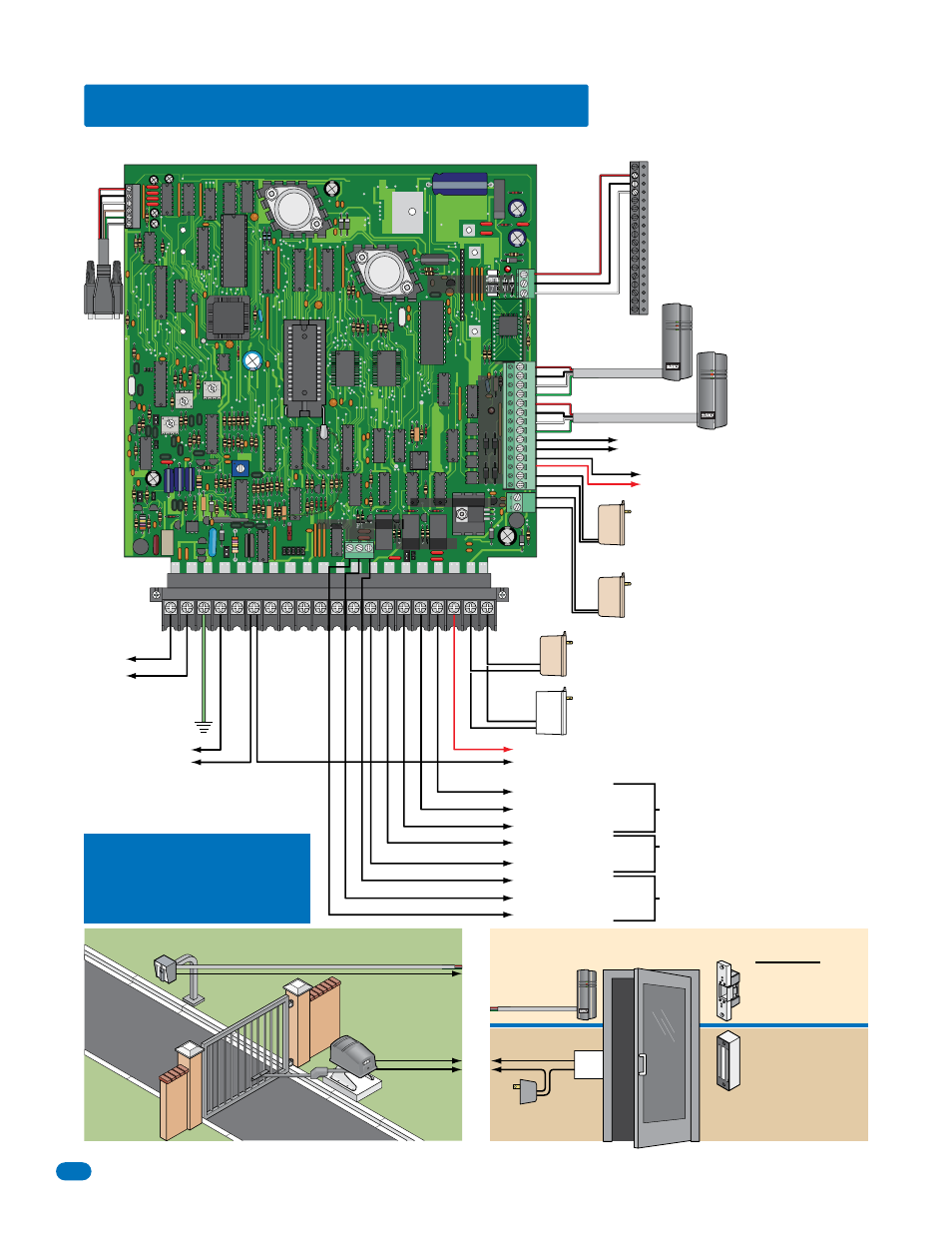

2.3.1 ALL Telephone Entry Systems - NO Expansion Boards

2.3 Telephone Entry System Wiring

Basic Door Control Components

Basic Gate Control Components

“Optional” Elevator Control
Board Required for Elevator
Control

(Left terminal on elevator control board)

Power for relays on elevator control board is NOT provided
by the system. Use separate UL listed power supply.
See Elevator Control Board Manual 2348-065.

Weigand Input

(Relay 1)

Card Reader Input: Use 6 conductor, stranded
with overall shield. 18, 20, 22 or 24 gauge.
See section 2.1.2.

PC Connection

See section 2.4.2 for wiring RS-232.

Weigand Input

(Relay 2)

Card Reader Input: Use 6 conductor, stranded
with overall shield. 18, 20, 22 or 24 gauge.
See section 2.1.2.

Elevator Control
terminal is NOT
available for 1834.

Relay 1 Input

1833, 1835 & 1837 Systems:

Control up to 3 entry points with ONLY the system circuit board.
Note: Separate elevator control board required for elevator control.

Note: When more than 3 entry points are needed to be controlled,
expansion boards will be required to accomplish this, see next 2 pages.

1834 System:

Control up to 2 entry points with the circuit board (Non-expandable).

Main Terminal

Door Locks

Gate Operator

Power for electric strike or magnetic
lock is NOT provided by the system.
Use separate UL listed power supply.

Magnetic lock is wired to
the Normally Closed (NC)
relay input.

#5 & #6 - 16 VAC Output: Can be used to power lights on
card readers that have additional lighting for outdoor use.

#3 & #4 - 12 VDC Back-Up Battery Input (Aux Term)

Back-up battery power for Weigand inputs ONLY. NOT available for 1834.
A separate back-up battery is needed for the phone system.

“BAT” & “COM” - 12 VDC Back-Up Battery Input (Phone System)

Back-up battery power for the phone system ONLY. A separate back-up battery is used for Weigand devices
connected to the auxiliary terminal when back-up battery power is being used. See aux terminal #3 & #4.

“PSW” & “COM”

Switch Input -

See section 1.6 for Postal lock

connection.

A switch closure across these

terminals activates Relay 1 for its

programmed strike time.

See section 3.2.7 Switch Input

Feature.

“PHONE”

“PHONE”

Electric strike is wired
to Normally Open (NO)
relay input.

Gate Operator

is wired to

Normally Open

(NO) relay

input.

To #5 & #6 aux. terminal
for additional lighting on
card reader.

Lock Power

UL listed

Card Reader

Card
Reader

To a
Weigand
Input Aux.
Terminal

To a Weigand Input Aux. Terminal

To a Relay Input

To a
Relay Input

“1NO” - Normally Open (NO)

“1NC” - Normally Closed (NC)

“1C” - Common (C)

“2RY” - Contact (NO or NC)

“2C” - Common (C)

Relay 0 Input

Separate terminal on the circuit board. NOT available for 1834.

NO - Normally Open

NC - Normally Closed

C - Common

Relay 2 Input

“2RY” Contact is set NO or NC with Relay 2 Jumper on board.
See section 4.7

Central Office

Phone Line Input

touch tone, loop start

Door

Lock

“CGND” Ground

See section 2.1.3.

500 ft max.

500 ft max.
