9210-065-F-4-12 15

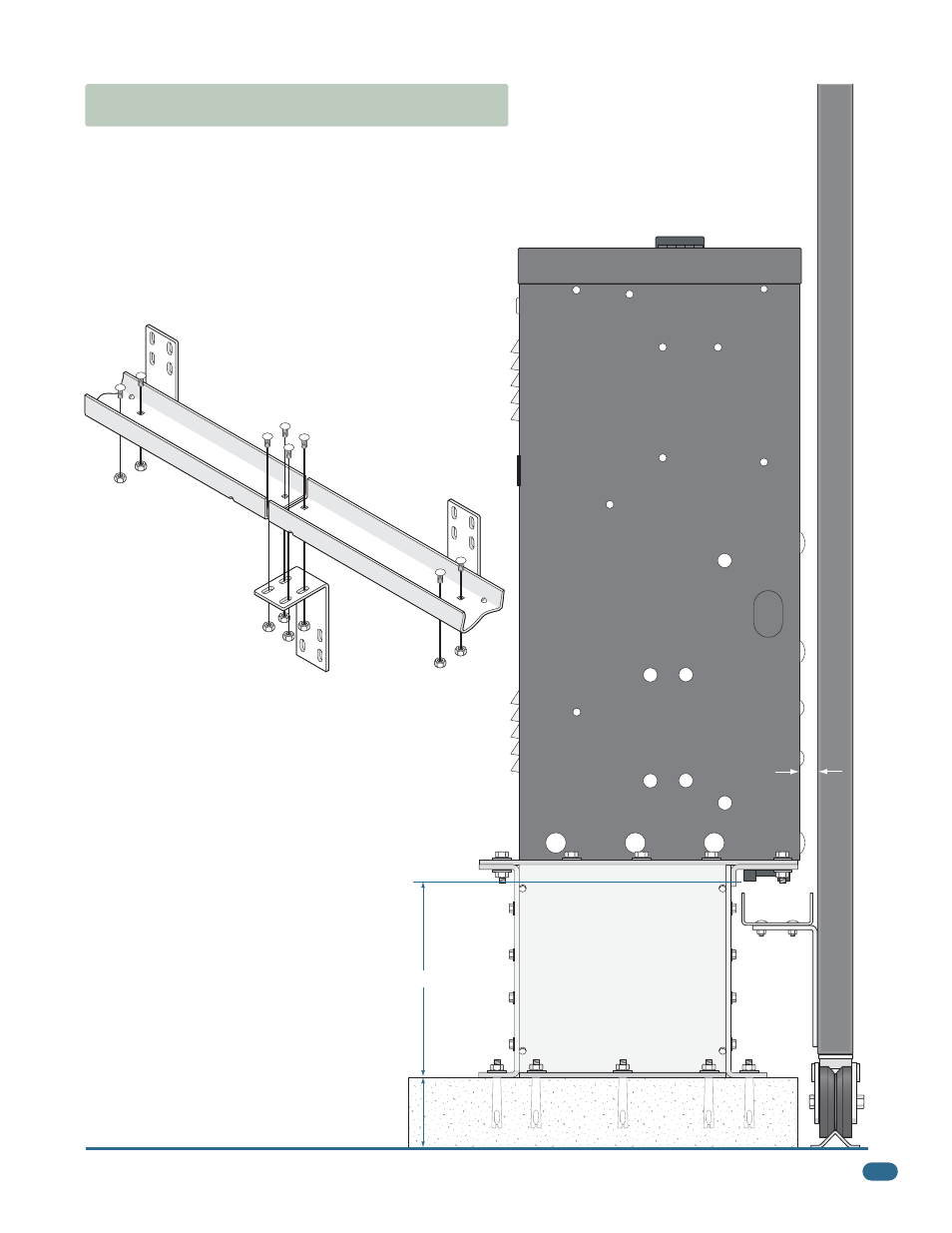

1.5 Continued - Chain Tray Kit
Tip: Chain tray supporting brackets can be
mounted facing down (as shown on right),
facing up or extended depending on the
chain height and position. For further
information, refer to instructions provided
with the chain tray kit.
Chain Tray
Supporting
Bracket
A chain tray is recommended for gates longer than 20 ft. to support the weight of the chain. DoorKing offers a
chain tray kit in sections to fit any length gate. (DoorKing P/N 2601-270 10 Ft. section)
Chain Tray
Supporting
Bracket
(Facing down)
Chain Tray
Supporting
Bracket
(Facing up)
Weep Hole
Carriage Bolts
Gate
Note: The chain should sag at least
one (1) inch per 10 feet of travel.
Note: All gate types can
have the chain tray
installed on them, V-rail
v-wheel ornamental is
shown here.
1”
10 Ft. Segment
Chain Tray
Segments
Connection
10 Ft. Segment
Installing the Chain Tray Kit
10.5”
4” Minimum Pad
Ground
