1.4 Installation #1
Remove the limit assembly guard.
Remove the 3 locknuts inside the
electronic box to swing box open.
W ARNING
MO VI NG GA TE CAN CA USE
Op era te g ate on ly w hen ga te a rea is i n s igh t
and fre e o f pe ople an d o bstr ucti ons .
Do no t all ow ch ildr en t o p lay in g ate are a
or o per ate ga te. Do no t sta nd i n g ate pa th o r w alk thro ugh
path w hile ga te is m ovin g. Rea d o wn er’s m anu al a nd s afe ty in stru ctio ns.
SE RI OUS I NJ URY OR DE ATH
CLA SS
CER TIF IED TO CA N/C SA C2 2.2 NO . 2 47
CO NF OR MS TO AN SI/UL -32 5 VEHIC UL AR GA TE OP ERA TOR HP
533 82 MO DE L SER IAL VO LTS
PH AS E
AM PS
60 H z
MA X G ATE LO AD Door King , In c., I nglew ood, CA
Limit Assembly Guard

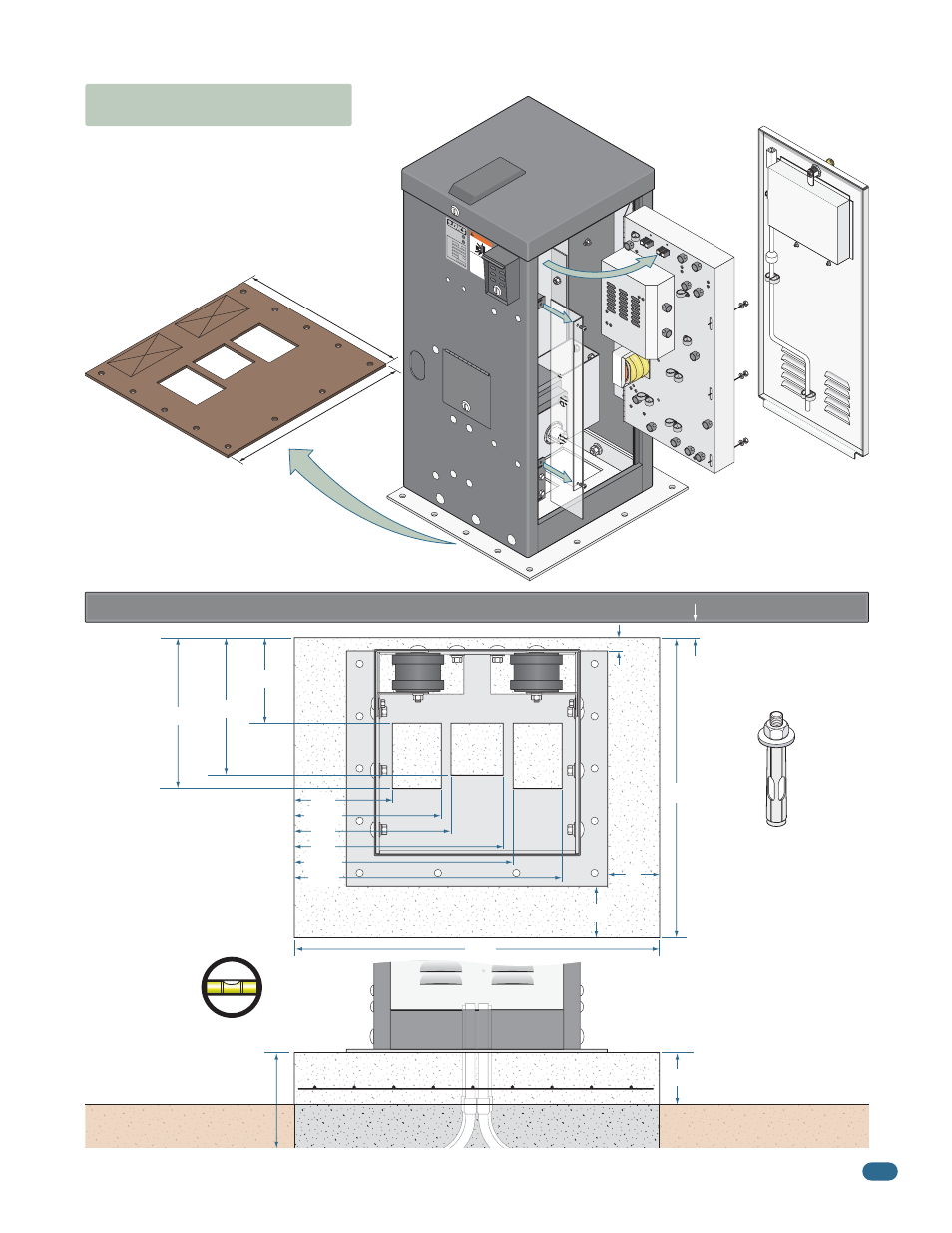

Electronic Box Tip: Trace the base plate of the operator on a
piece of masonite (Not provided) and make a
template to help locate where the conduit runs
will be positioned in the concrete pad.
Caution: DO NOT lay the operator on it’s
side or oil will leak out of the gear reducer.
The operator is heavy. Two persons are required
when handling the operator during installation.
Pad depth is determined by
soil conditions and local
building codes. Minimum
depth is 18 inches.
Reinforced concrete
recommended.
DO NOT set anchor bolts in
wet concrete. Sleeve anchors
should be used after concrete
has cured for greater
flexibility in positioning the
operator on the pad.
23”
6.75”
10.75”
7.5”
4”
4”
12”
16”
16.75”
11.25”
20.5”
11.75”
4” Minimum Above Ground
28”
Concrete Pad
Gain Access Inside
Operator
Concrete Pad
Conduit
Conduit suggestions:
• High voltage conduit
• Low voltage access control device conduit
• Automatic exit loop conduit
• Reverse loop conduit
Base Plate
Conduit
Area
Conduit
Area
Conduit
Area
Gate
1”
1
2
3
1”
Masonite T
emplate
Not Provided
Important: Operator
MUST be parallel to gate!
Concrete pad
MUST be level!
1/2
To attach operator to
concrete pad DoorKing
recommends twelve (12)
1/2” x 3” sleeve anchors
(not supplied).
Operator Mounted Directly
on a Concrete Pad
18”
20”
Wire Mesh
