9210-065-F-4-12 11

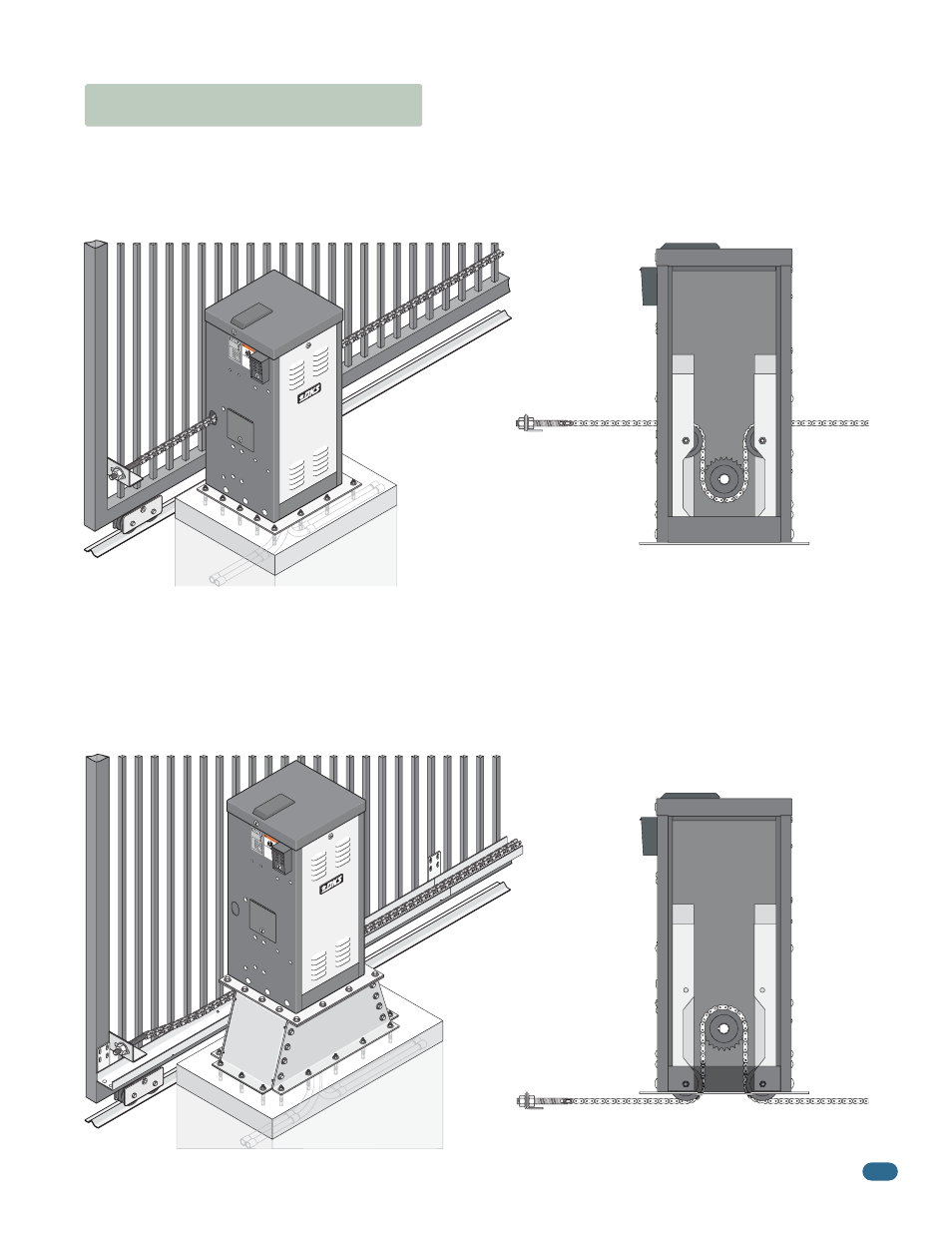

1.3 Installation Options
#1 - Operator Mounted Directly on a Concrete Pad
#2 - Operator Mounted on the Heavy-Duty Pedestal Mounting Stand
Idler wheels are factory set in the correct position.
Remove the chain knock-outs in operator housing.
The idler wheels must be moved to the lower position to
use a chain tray. DO NOT remove the chain knock-outs.
The operator MUST be level. See the next page for typical gate types. We suggest that you contact the local building depart-
ment to determine the required depth of the concrete pad since soil conditions and code requirements vary from city to city.
The pedestal mounting stand kit (P/N 9200-135) MUST be used when gates require a chain tray (Typically for gates that are
longer than 20 feet in length). The chain tray helps support the weight of the chain and reduce the chain stretching that occurs
over time. DoorKing offers a chain tray kit that will fit any length gate (P/N 2601-270 10 ft. connecting sections).
DoorKing highly recommends using the pedestal stand for gates heavier than 2000 lbs. for a more secure attachment to a larger
and heavier concrete pad. V-rail v-wheel gate type shown.
Typically used when gates are less than 20 feet in length and under 2000 lbs. in weight. V-rail v-wheel gate type shown.
W ARNING
MO VIN G G ATE CA N C AU SE Ope rate ga te onl y w he n g ate are a is in s ight
and fre e o f pe ople an d o bst ruc tion s.
Do no t a llow ch ildr en t o p lay in g ate are a
or ope rate ga te.
Do no t sta nd i n g ate pa th o r w alk thr oug h
path w hile gate is m ovin g.
Rea d o wn er’s m anu al a nd s afe ty i nstr ucti ons.
SER IO US IN JU RY O R D EA TH
CLASS CER TIFI ED TO CAN /CS A C22. 2 N O. 2 47
CO NFO RM S TO AN SI/U L- 325 VEH ICUL AR GA TE OPE RA TOR HP
533 82 MO DE L SER IAL VO LTS PH ASE AM PS 60 H z MAX GA TE LO AD Do orK ing , In c., I ngl ew ood , C A
Idler
Wheels
Idler
Wheels
Chain
Configuration
Chain
Configuration
See page 13 for details.
See page
16 for
details.
See page
16 for
details.
See pages 14 and 15 for details.
Concrete Pad
Concrete Pad
W ARNI NG
MO VIN G G ATE CA N C AU SE Op era te g ate on ly w hen ga te a rea is i n s igh t
and fre e o f pe ople an d o bstr ucti ons .
Do no t all ow ch ildr en t o p lay in g ate are a
or o per ate ga te.
Do no t sta nd i n g ate pa th o r w alk thr oug h
path w hile ga te is m ovin g.
Rea d o wn er’s m anu al a nd s afe ty in stru ctio ns.
SE RIO US I NJU RY O R D EAT H
CL ASS CE RT IFIE D T O CAN /CSA C2 2.2 NO . 2 47
CO NF OR MS TO AN SI /UL -3 25 VE HICU LAR GA TE O PE RAT OR HP 533 82 MO DE L SE RIAL VO LTS PH ASE AMPS 60 H z MAX GA TE L OAD Doo rKin g, In c., I ngle wo od, CA
Pedestal
Mounting
Stand Chain T
ray
