Page 19: Interconnection cable wiring, Primary operator secondary operator
6300-065-Z-7-12
17
Primary Operator’s
2340 Convenience Open
Circuit Board
Gray
(On select models)

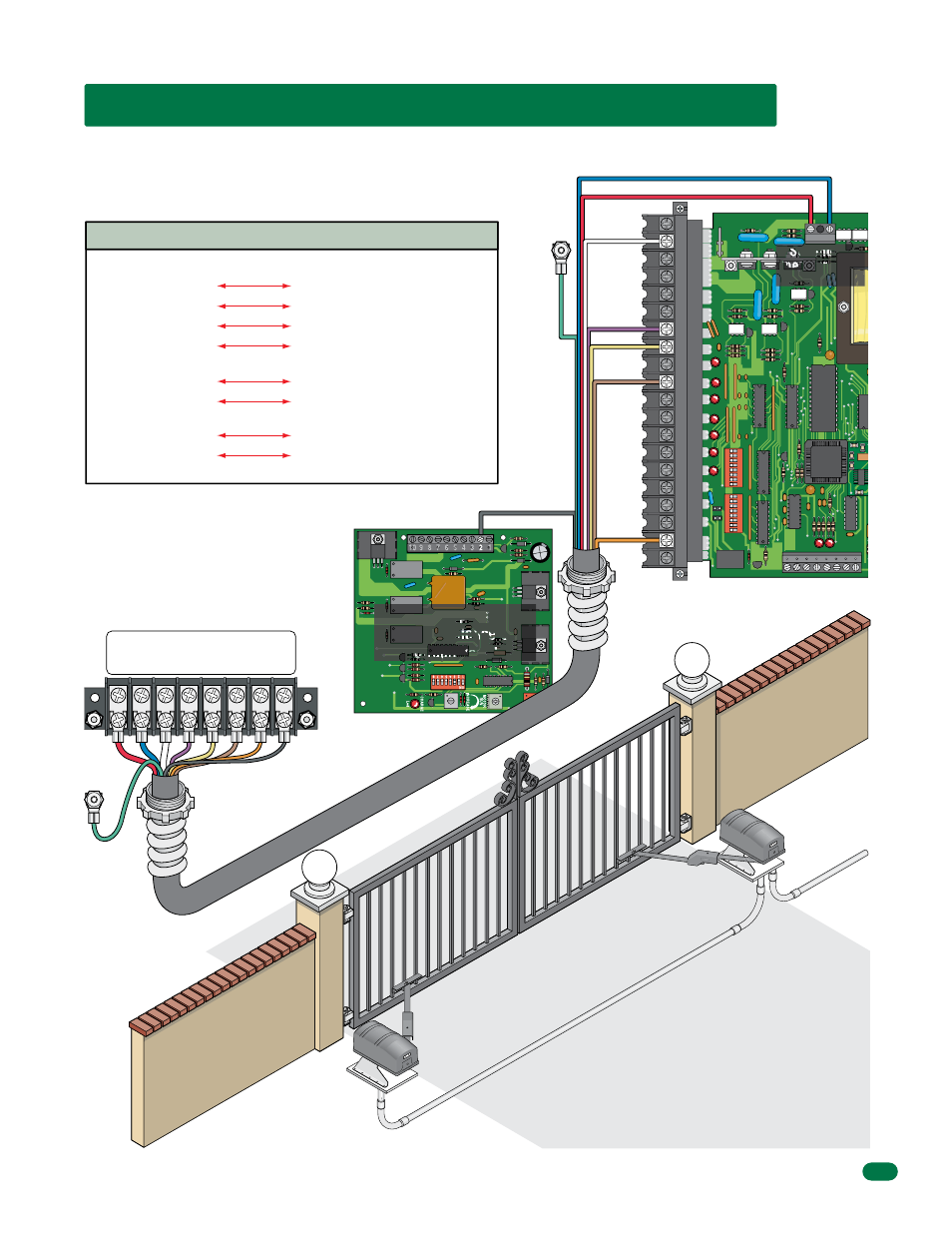

2.3 Bi-Parting Gates Wiring - Dual Gate Operators
1
Motor
2
Motor
3
Neutral
4
24V
AC
5
Limit
6
Spare
7
Limit
8
COM
Conduit
Secondary Operator
Terminal
Conduit
Primary Operator
Control Board
•
All control, loop detector, safety and auxiliary
devices are wired to the primary operator.
•
Secondary operator contains
NO 4502 control board.
Operator
Chassis
Ground
(Green)
Operator
Chassis
Ground
(Green)
Motor Terminal #1 (Red)
Motor Terminal #2 (Blue)
Main Terminal Neutral #2 (White)
Main Terminal 24 VAC #7 (Purple)
For Convenience Open Models
Main Terminal Limit #8 (Yellow)
Main Terminal Spare #10 (Brown)
Must be connected
Main Terminal Limit #19 (Orange)
2340 Terminal COM #2 (Gray)
For Convenience Open Models
Primary Operator
Secondary Operator
Interconnection Cable Wiring
Primary
Operator
Secondary
Operator
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
NC
NO
POWER
1
ON
2
3
4
5
6
7
8
1
ON
2
3
4
5
6
7
8
Connect the Primary/Secondary operators together with DoorKing’s interconnection cable as shown (Different lengths sold separately
P/N 2600-75x). High voltage power and low voltage communications are supplied to the secondary operator by DoorKing’s UL approved cable
that is run in a single conduit. Two conduits (High voltage and low voltage) will need to
be provided to the secondary operator when NOT using DoorKing’s UL listed, wet
environment interconnection cable.
Red
Blue
White
Purple
(On select
models)
Yellow
Brown
Orange
Secondary
Operator Motor
Terminal
4502
DoorKing’
s UL Listed (W
et Envi
ronment) Primar
y/Secondar
y Interconnection Cable
Primar
y/secondar
y
inte
rconnection cable
in underground conduit.
AC Power
AC power
conduit to
primary
operator only.
Optional 3.3 Amp Heater
Installation Note: If the optional
heaters are to be installed on the operators,
run two (AWG 16-600 volt insulation) power
wires through the interconnection cable conduit to
power the secondary operator’s heater. Refer to the
instruction sheet with the heater kit (P/N 1601-154)
for more information.
Main T
erminal
(Red) Motor #1
(Blue) Motor #2
(White) Neutral #3
(Purple) 24 VAC #4
2340 DC Power Board
(Yellow) Limit #5
(Brown) Spare #6
Must be connected
(Orange) Limit #7
(Gray) COM #8
