6300-065-Z-7-12 13
Closed Gate
5”
5”

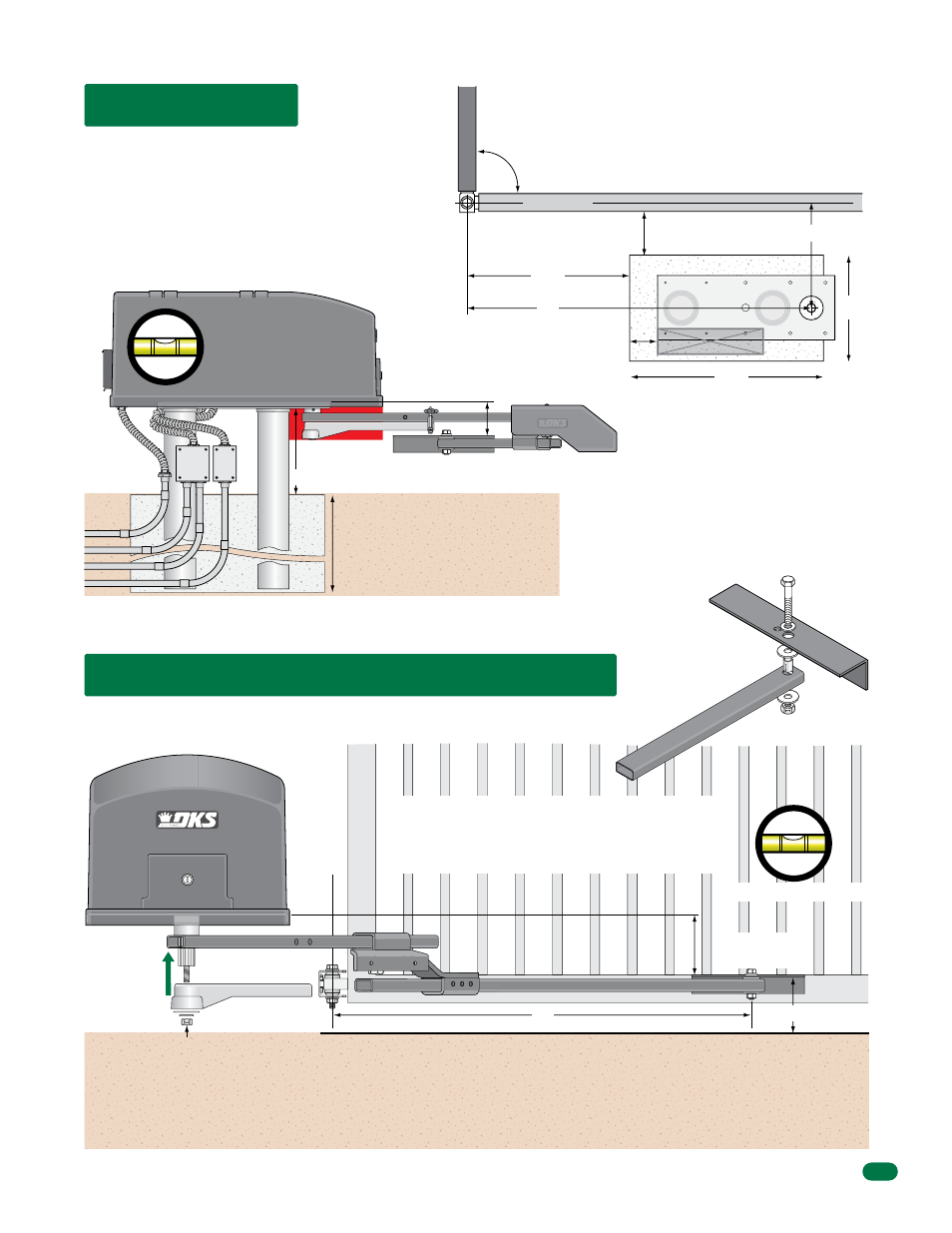

1.5 Post Mount
1.6 Arm and Gate Bracket Installation
Open Gate
Closed Gate
23”
12”
22”
34”
5”
Depth of the concrete is
determined by soil conditions
and local building codes.
Do not insert the locking pin or padlock
into the crank arm. It will be installed
after arms have been adjusted. Do not secure the elbow assembly
to the arms until the arms have
been adjusted. (See next page).
Mount the post base into the concrete
before installing the operator.
The post mount installation will allow
the operator to be mounted low enough
to attach the gate bracket to the lower
gate rail if desired.
Adjust the locknut on the crank power
arm so that it is snug against the
washer, but will still allow the crank arm
to rotate with little force. This is the
operator’s manual release option when
the crank arm is unlocked.
Assemble arms as shown with the gate in the closed
position. The elbow assembly’s flange MUST be on the
opposite side of the gate in the closed position. This is
the physical stop used to set the open and close limits.
Low
Volt
Interconnection
Cable
Arm
Rotation
Area High
Volt
Gate Bracket Height
Concrete
Position
Gate Rail
Run all conduit on the opposite
side of the open gate.
Install gate
bracket to gate.
Conduit
Post Base
Operator MUST be level.
30” Crank Arm
60” Connecting Arm
Flange
Crank Power Arm
Elbow
Assembly
Point arms towards
gate bracket.
Gate Hinge Pivot Point
Arms MUST be level.
This distance can vary (7” minimum).
Varies
60” Connecting Arm
Gate Bracket
Note: 2” thick
gate Illustrated.
Important Note: These post mount measurements will
ONLY work when the operator is positioned using the
“1.1 Operator Position” measurements on page 10.
90°
Output Shaft
Concrete
2”
12”
43”
