Controlled Products Systems Group 6300-080 - Manual (Page 17)

6300-065-Z-7-12 15

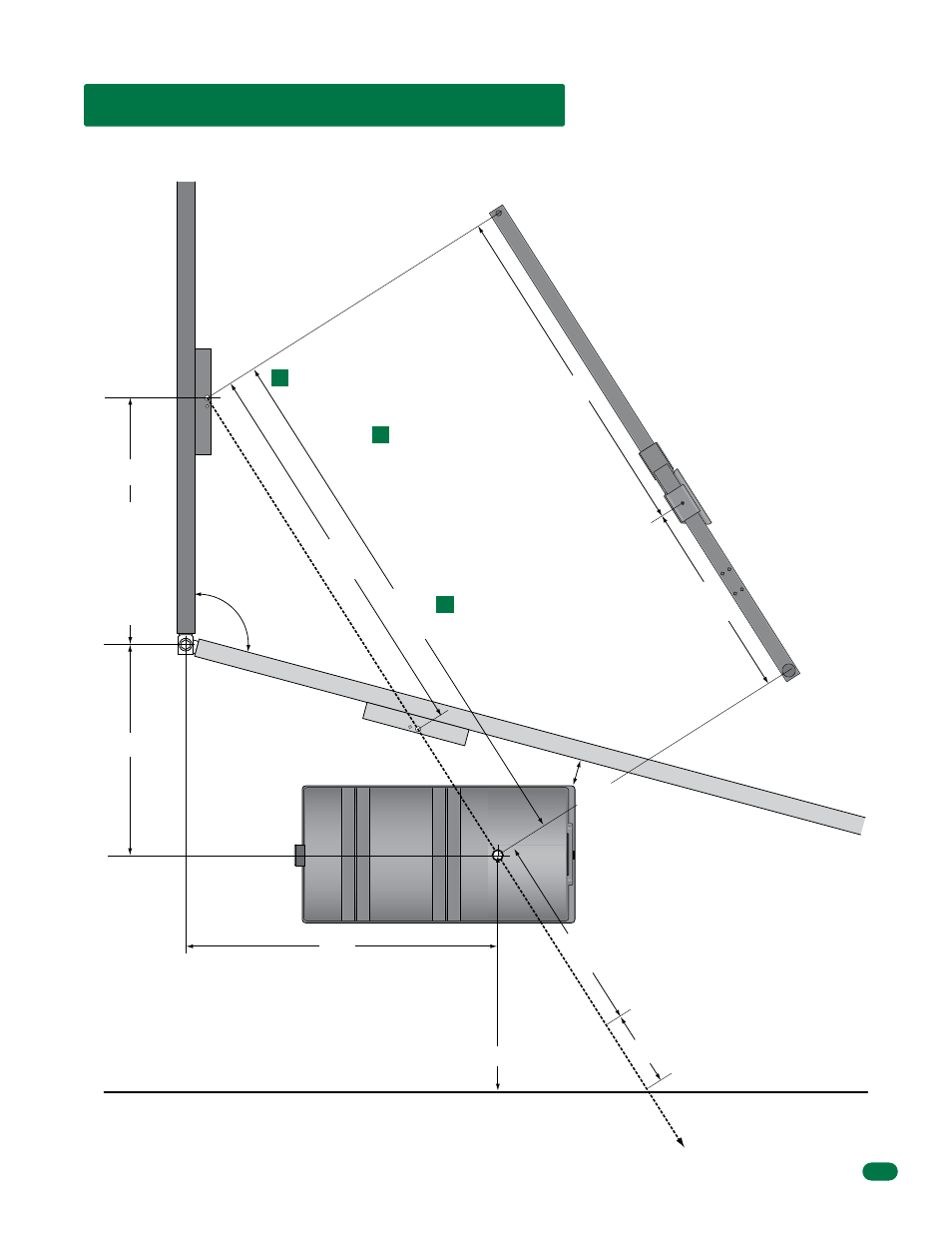

1.9 Gates Opening Wider Than 90°
Open Gate
Connecting Arm
Elbow Assembly
Crank Arm
Closed Gate
44.5”
40”
22.25”
22.25”
8.5”
62.25”
36”
24”
28”
Operator
Output Shaft
An imaginary line drawn from the
closed gate bracket through the
open gate bracket MUST intersect
the operator output shaft. The
crank and connecting arm’s pivot
point calculations will be made
from the 2 measurements taken
from this line.
Note: Mount operator square to the fence line
and NOT parallel to the open gate.
The installation of an operator opening gates wider that 90° is the same for 1.3 through 1.8 except the operator and concrete
pad will be in a different position. Individual requirements can be calculated following this 105° demonstrated sample.
105°
Sample
3”
away from
gate for any
configuration.
Crank arm’s pivot point measurement
in the open position on imaginary line.
Safety cover’s installed
measurement for any
configuration.
Connecting arm’s pivot point measurement
62.25” minus (crank arm) 22.25” = 40”
Crank arm’s pivot point measurement
44.5” divided by 2 = 22.25”
Gate bracket
should not be
mounted any
farther than
28” from
hinge for any
configuration.
Distance needed for arm
clearance in the open position.
Arm Assembly
1
2
3
Imaginar
y Line
27”
