1601-065-L-3-13

5

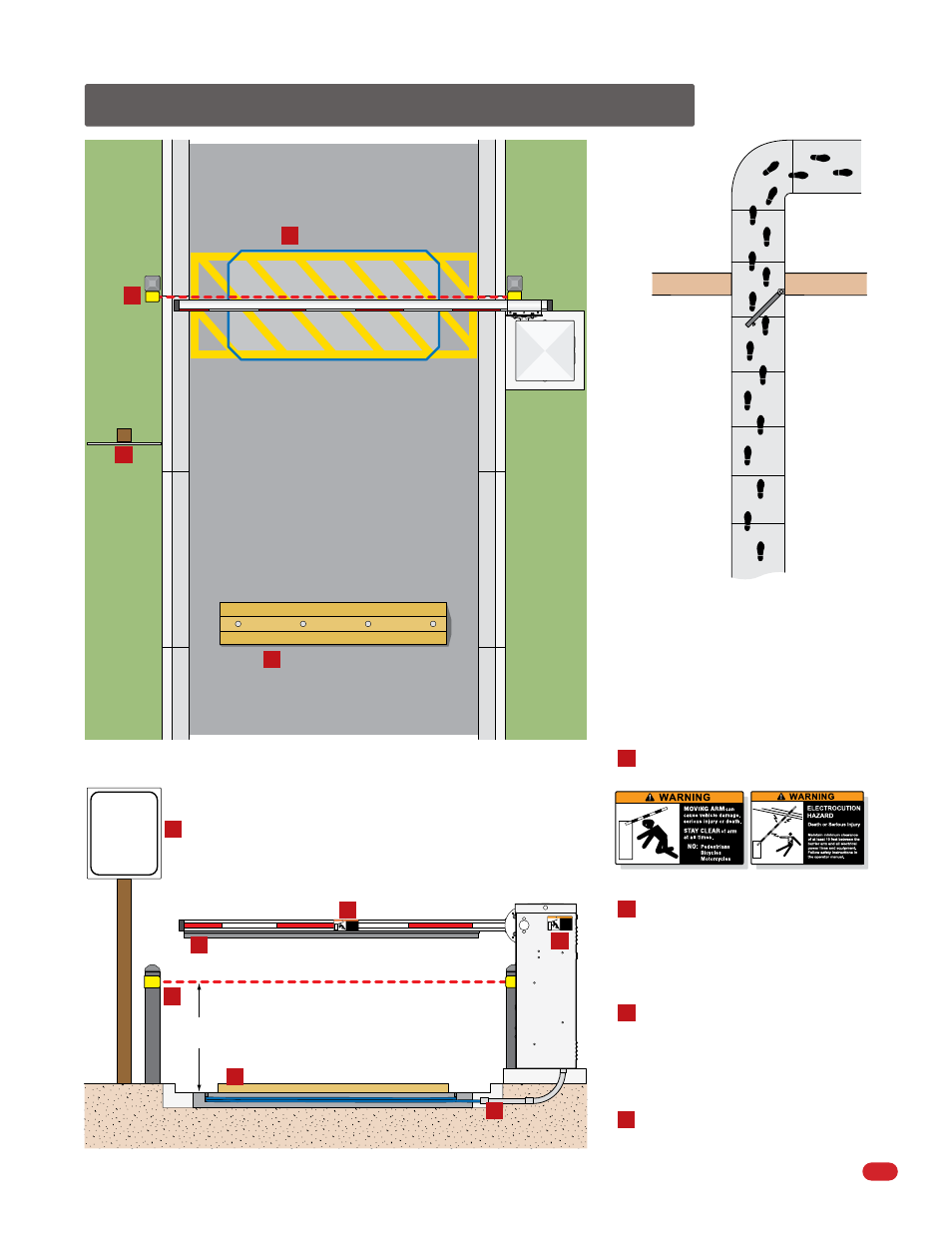

Safety Information for Vertical Barrier Arm

Separate
Pedestrian
Walkway

Located so pedestrians
cannot come in contact
with the barrier arm.

Non-Contact Sensor

D

Minimizes the potential of the arm
lowering on vehicular or other traffic
that loops cannot sense.

Contact Sensor

E

Minimizes the potential of the arm
lowering on vehicular or other traffic
that loops cannot sense.

F

Speed Limit Sign

F

F

Warning Signs

C

Permanently mounted and easily visible.

SPEED

LIMIT

5

MOVING ARM

can

cause vehicle damage,
serious injury or death.

STAY CLEAR

of arm

at all times.

NO: Pedestrians

Bicycles
Motorcycles

WARNING

MOVING ARM

can

cause vehicle damage,
serious injury or death.

STAY CLEAR

of arm

at all times.

NO: Pedestrians

Bicycles
Motorcycles

WARNING

Speed Bump

B

Helps increase distance and
time between vehicles.

Down Loop

A

Loops minimize the potential of the arm closing when
a vehicle is present. Number and placement of loop(s)
is dependent on the application.

Hazard Stripes

No stopping or standing zone. Permanently
painted on pavement under the arm.

D

A

C

C

B

E

D

No higher than 27.5” above grade.
21” is typical for most installations.

Helps control traffic.
