1601-065-L-3-13 23

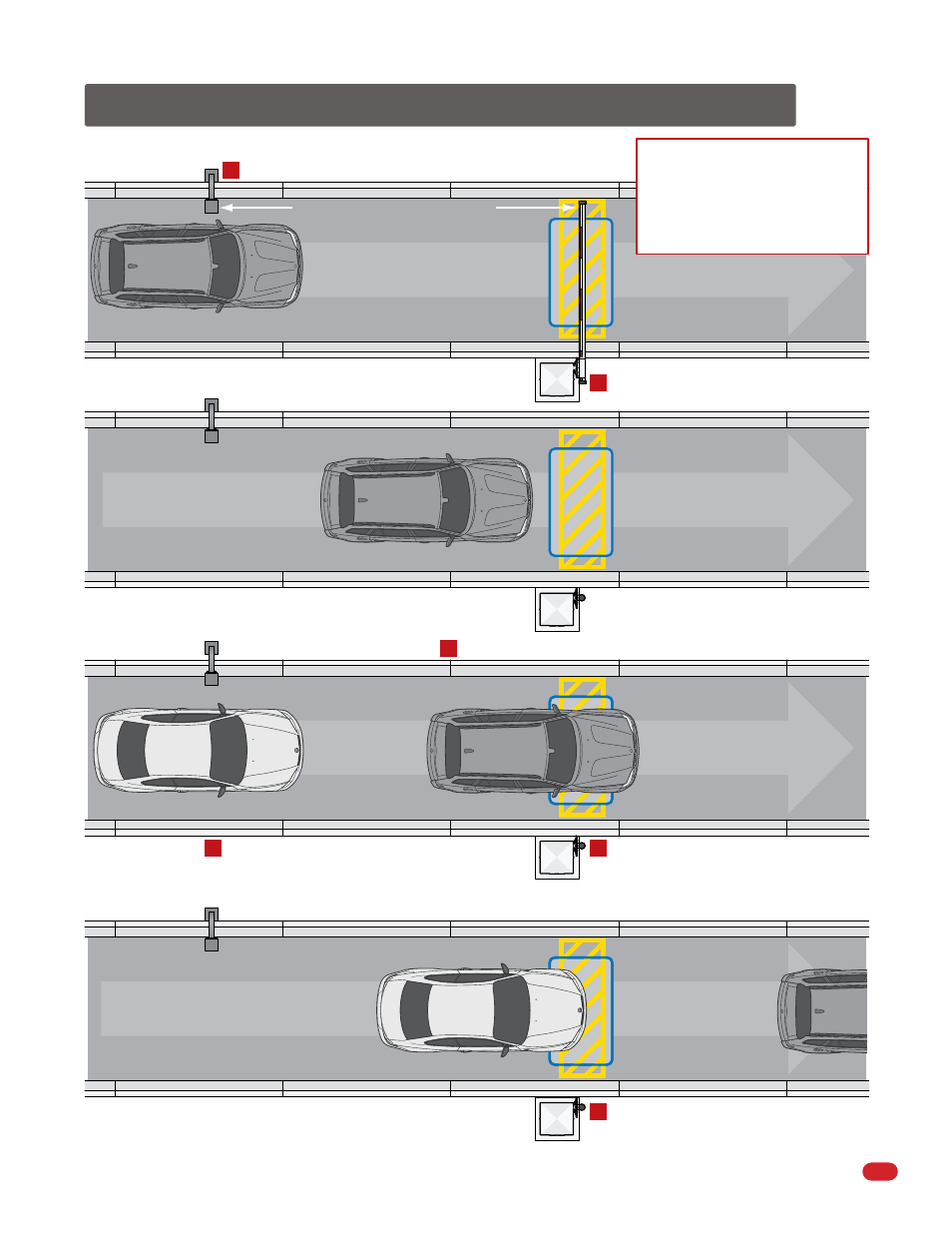

Option 1 - Override a DOWN Command
SW2, Switch 3 OFF
Valid UP command given.
1st Car activates down loop.
While 1st Car is on down loop,
the next UP command is given.
Operator will raise arm.
Operator will override “1st Car’s”
DOWN command.
Arm will remain up
and wait for the “Next Car’s” down loop
to be activated.
When “Next Car” activates then clears
down loop, arm will lower.
1st Car
1st Car
Next Car
Remote transmitters are recommended for this option.
Note:
If an UP command is given while the arm is lowering, the arm will raise.
1
3
2
4 5
6
1st Car
Access Control Device
Basic operator UP/DOWN cycle:
A. Valid UP command from the
access control device will raise arm.
B. Vehicle activating and clearing
the down loop will lower the arm.
Option 1 CANNOT be used
at distances OVER 12 feet.
This allows multiple vehicles
in this area which Option 1
WILL NOT keep track of.
See Option 2 on next page.
Note: Operator will NOT accept
another valid UP command until
“1st Car” activates down loop.
Down Loop
12 Ft. Maximum Distance
Down Loop
1st Car
Down Loop
Next Car
