1601-065-L-3-13

18

9409

Dual Channel

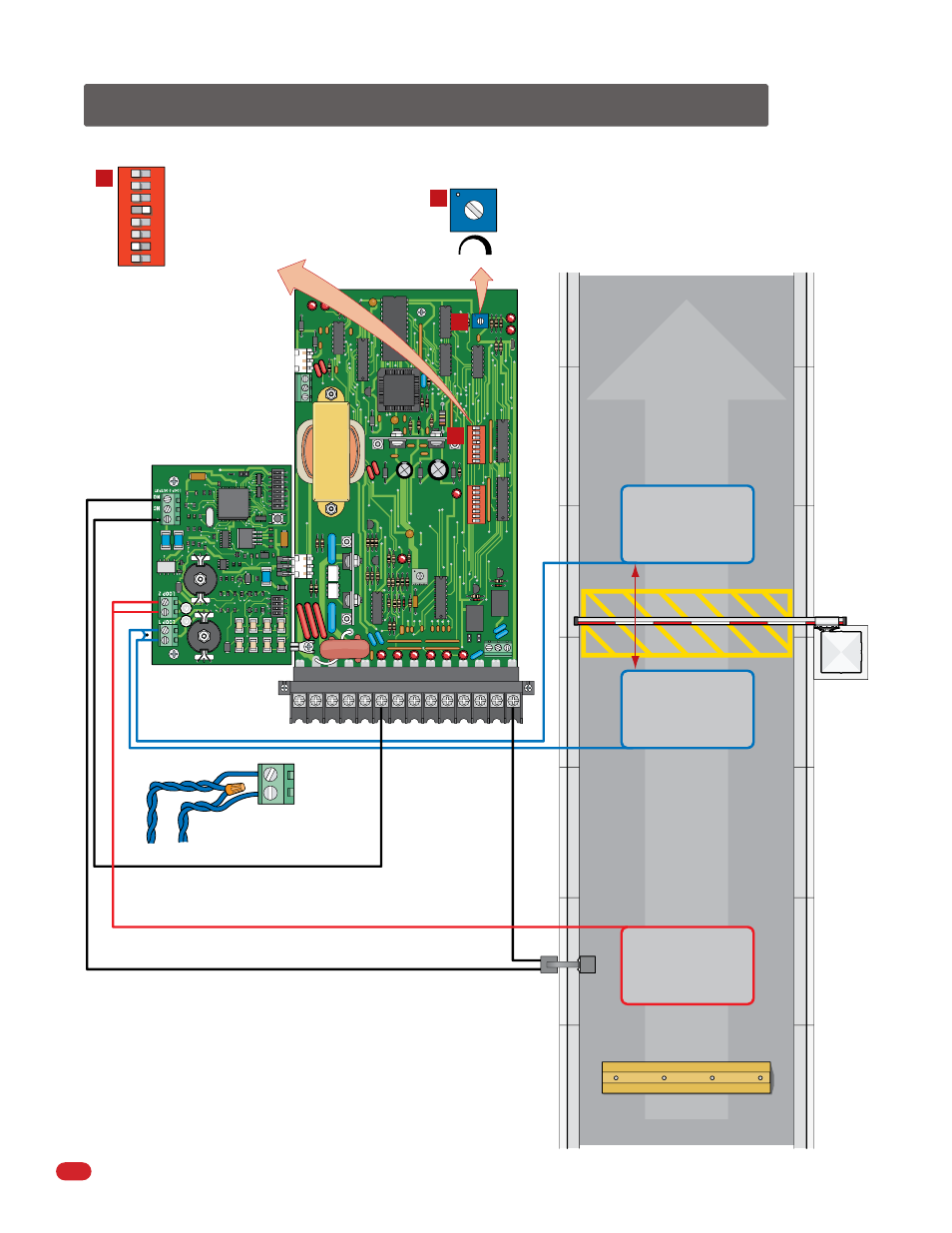

3.5 Operator Timer ON Entry Lane (No Down Loop)

REVERSE
SENSITIVITY

TIME
DELAY

POWER

1

ON

2

3

4

5

6

7

8

1

ON

2

3

4

5

6

7

8

NC NO

UP

LOOP

DOWN

LOOP

1 2 3 4 5

6

7 8 9 10 11 12 13

14

1601

Speed Bump

Reverse Loop

Reverse Loop

Access

Control

Device

Reverse loops wired in series.

Com

NO

Com

NO

SW 1

SW 2

A

B

Arming Loop Note: The arming loop only allows the access control
device to function when a vehicle is on the loop, otherwise it will not
function. This prevents pedestrians from gaining access through the
vehicular gate.

Reverse Loop Note: The reverse loops will prevent the arm from
closing on a vehicle remaining in the arm’s pathway. The timer will
restart the countdown any time the reverse loop gets activated.

Arming Loop

for Access

Control Device

(Optional)

SW 1

SW 1, switch 4 is OFF.

SW 1, switch 7 is ON (Timer). The arm will
lower after the timer has timed out.

Adjust from 1 second
(full counter clockwise)
to approximately 59
seconds (full clockwise).

1 59

TIME
DELAY

A

B

Helps increase distance
and time between vehicles.

1

ON

2

3

4

5

6

7

8

If the arming loop is not used, then a Single Channel Loop Detector can be
used (9410) in the down loop port.
Connect the reverse loops to loop 1 on this
detector. Connect the access control device directly to main terminal 6 and 14.

Main Terminal

Note: Make sure that a vehicle
can NOT fit in the area
between the reverse loops.
